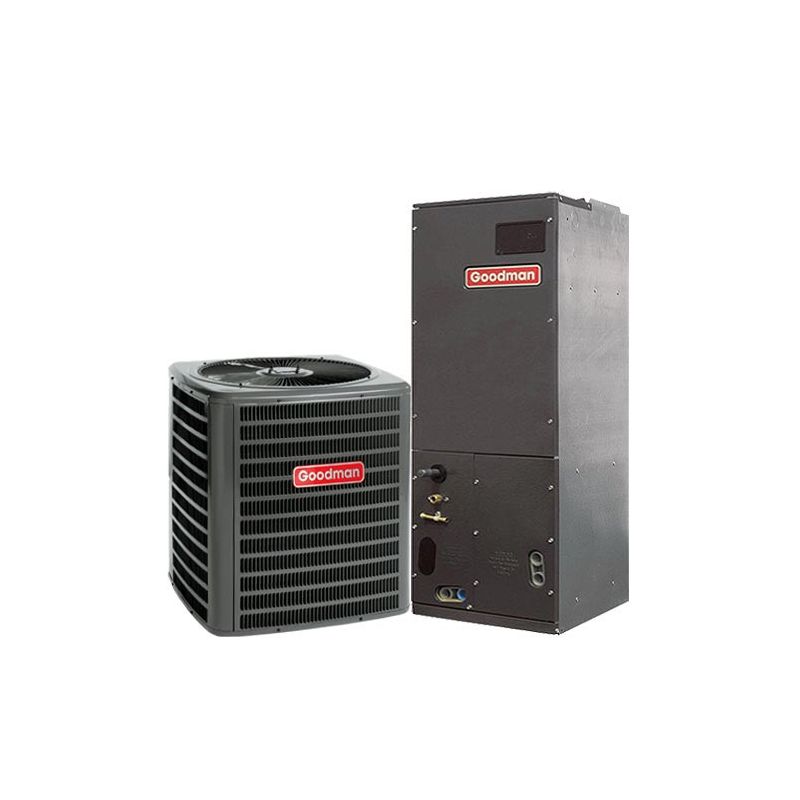

1.5 Ton 15 SEER Goodman Heat Pump Air Conditioner System

By

Goodman

Model

SSZ140181 / ASPT30C14

ID

1561

Rating:
100% of 100
Goodman

Authorized Goodman Dealer

Your Low Price $1,225.00



Save up to 70% off Local HVAC Prices

Free Shipping
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

The Goodman® SSZ14 14 SEER Heat Pump uses the environmentally friendly refrigerant R-410A and features operating sound levels that are among the best in the heating and cooling industry. R-410A is chlorine-free to help prevent damage to the ozone layer. With its 14 SEER rating, the SSZ14 will help reduce energy consumption throughout the life of the system.

All Goodman 14 / 15 SEER heat pumps must be installed with a bi-flow thermostatic expansion valve. This valve is installed in front of the indoor evaporator coil inline with the line set piping. If you are installing a heat pump with a backup heat source which will be a fuel furnace, you will need to install an electronic all fuel kit.

This heat pump can be 14 or 15 SEER, depending on which indoor unit it is paired with. If it is installed with the manufacturer recommended evaporator coil, a Goodman variable speed furnace, variable speed air handler, or variable speed modular blower, and also sometimes a thermostatic expansion valve (TXV), it is a 15 SEER system. A 15 SEER heat pump system will reduce your electric bill approximately 7% - 8% more than a 14 SEER heat pump system.

Please note that this heat pump equipment comes pre-charged with R-410A liquid refrigerant and by Federal law cannot be released to the atmosphere. Yes, you can purchase this equipment without being EPA certified. And, if you are mechanically inclined you may perform about 90% of the equipment installation yourself. However, we strongly recommend to have a professional heating/cooling contractor do the final part of the installation including managing the refrigerant. An HVAC contractor has the tools and know-how to do this work.

Heat Pump's Standard Features

  • R-410A environmentally friendly refrigerant
  • High-efficiency Copeland® scroll compressor
  • High- and low-pressure switches
  • High-quality compressor sound blanket
  • 850 RPM condenser fan motor
  • Liquid refrigerant return protection
  • Factory-installed, bi-flow liquid line filter dryer
  • Service valves with sweat connections and gauge ports
  • Copper tube/enhanced aluminum fin coil
  • Reliable time-initiated, temperature-terminated defrost control
  • Contactor with lug connection
  • Ground lug connection
  • ARI Certified
  • ETL Certified

Cabinet Features

  • Unique Goodman® sound control top design
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side compressor and tubing access
  • Service ports and controls are accessible while unit is operating

The AVPTC 's blower design includes a variable-speed direct current motor, which helps eliminate the cold blast of air upon heating start-up often associated with single-speed units. This air handler is ideal for either new or retrofit installations.

Standard Features

  • Compatible with the ComfortNet™ Communicating System family of products
  • Maximum four low-voltage wires required for operation in communicating mode
  • Auto configuration of the airflow and tonnage in communicating mode
  • In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the system’s CFM for each individual mode of operation
  • R-410A refrigerant-compatible
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • All-aluminum evaporator coil
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • Provides adjustable low CFM for efficient fan-only operation
  • CFM indicator with front-panel sight glass
  • Improved humidity control and comfort
  • Compatible with variable-capacity heat pumps and cooling applications
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • AHRI Certified; ETL Listed

Cabinet Features

  • Fully insulated, painted steel cabinet with attractive Architectural Gray finish
  • Compact, versatile upflow, downflow, or horizontal multi-position installations
  • Low-voltage cabinet connections; control circuit is arranged to permit staging
  • Power supply on top; low-voltage entry on top or side
  • Foil-faced insulation is glued in place and covers the entire blower case to reduce operating sound and cabinet condensation

Product Specifications

More Information
1.5 Ton 15 SEER Goodman Heat Pump Air Conditioner System
SKUSSZ140181 / ASPT30C14
Brand/ManufacturerGoodman
Electric Backup Heat Capabilities (Optional)5 Kilowatts, 8 Kilowatts, 10 Kilowatts
RefrigerantR410A
SEER1 (Efficiency)15
Tonnage1.5 Ton
System Tonnage1.5 Ton
Warranty10 Years with Online Registration
