This product has been discontinued

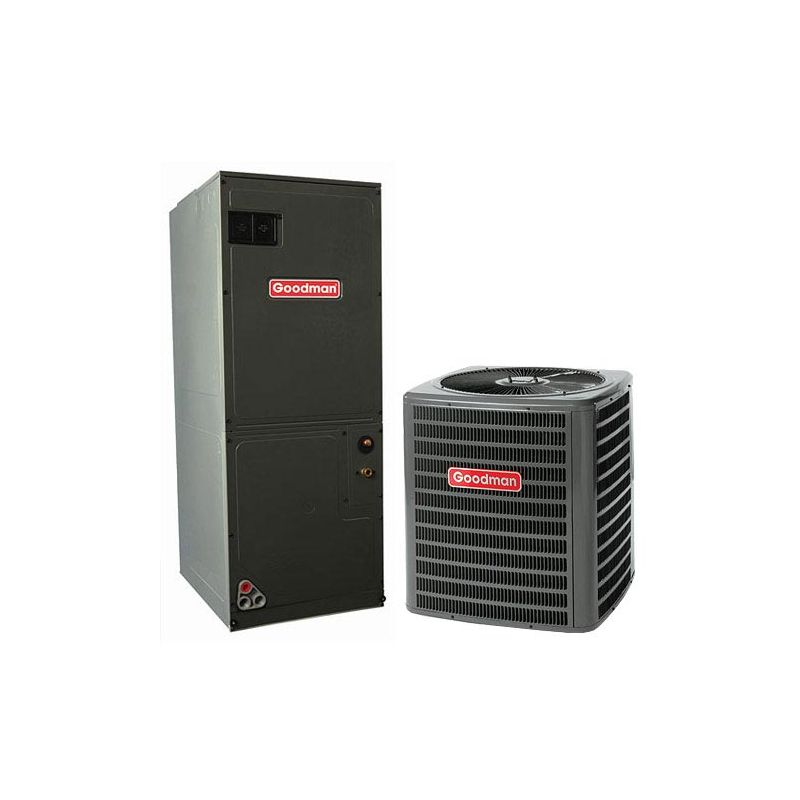

2 Ton 15 SEER Goodman Heat Pump Air Conditioner System

More Views

Discontinued
Goodman Manufacturing
Authorized Goodman Dealer
Model: SSZ140241 / ASPT30C14

Description

Details

Goodman 2 Ton 14 SEER Heat Pump

The Goodman SSZ140241 16 SEER Heat Pump uses the environmentally friendly refrigerant R-410A and features energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. The SSZ140241 features a high-efficiency Copeland® scroll compressor and is designed for the consumer who desires superior comfort, quiet operation, and environmentally friendly performance.

The Goodman SSZ140241 heat pump must be installed with a bi-flow thermostatic expansion valve. This valve is installed in front of the indoor evaporator coil inline with the line set piping.

Heat Pump's Standard Features

  • R-410A environmentally friendly refrigerant
  • High-efficiency Copeland® scroll compressor
  • High-quality compressor sound blanket
  • High-pressure switch; low-pressure switch
  • Factory-installed filter dryer
  • 850 RPM condenser fan motor
  • Copper tube/enhanced aluminum fin coil
  • Sweat connection service valves with easy access to gauge ports
  • Contactor with lug connection
  • Ground lug connection
  • ARI Certified
  • ETL Certified

Cabinet Features

  • Unique Goodman® sound control top design
  • Steel louver coil guard
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
  • Top and side maintenance access
  • Single-panel access to controls with space provided for field-installed accessories
  • When properly anchored, meets the 2001 Florida Building Code unit integrity requirements for hurricane-type winds

2.5 Ton Multi-Positional Goodman Air Handler

The Goodman ASPT30C14 Multi-Position Air Handler with EEM (Energy-Saving) Motor is suitable for use with R-410A refrigerant and may be installed in a variety of locations. This air handler features a SmartFrame sub-structure that adds lateral stability, mounting locations for internal components, and additional insulation retention.

Standard Features

  • All-aluminum evaporator coil
  • Direct-drive, multi-speed ECM motor
  • Internal factory-mounted TXV valve
  • Transformer and blower time-delay on all units
  • Easy single-bulb UV light compatibility
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • AHRI Certified; ETL Listed

Cabinet Features

  • New rigid SmartFrame™ cabinet
  • 21 inch depth for easy attic access
  • DecaBDE-free thermoplastic drain pan
  • Galvanized leather grain-embossed finish
  • Foil-faced insulation covers the internal blower case to reduce operating sound and cabinet condensation
  • Glue-less cabinet insulation retention
  • Screw-less sides & back prevents condensation
  • Multi-position capability: upflow, downflow, horizontal or vertical
  • Coil-mounting track for quick repositioning
  • Tool-less filter access accommodates standard-size filters
  • Multiple electrical knockouts
  • Heavy-gauge bottom plate

Specifications

Goodman 2 Ton 14 SEER Heat Pump

skuSSZ140241
manufacturerGoodman
compressor_stageSingle Stage
compressor_typeScroll
cooling_btu24,000
heating_btu24,000
decibel72
electrical208 / 230 V. 1 Phase 60 Hz
refrigerantR410A
seer14
liquid_valve_size3/8"
max_breaker_size25 amps
min_breaker_size17.1 amps
nominal_capacity2 Ton
suction_valve_size3/4"
valve_typeSweat
height38.25"
width29"
depth29"
weight201.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.


2.5 Ton Multi-Positional Goodman Air Handler

skuASPT30C14
manufacturerGoodman
blower_motorMulti Speed - EEM
cfm1,450
electric_options5 Kilowatts, 8 Kilowatts, 10 Kilowatts
electrical208/240 V, 1 Phase, 60 Hz
refrigerantR410A
liquid_line3/8"
max_breaker_size15 amps
nominal_capacity2.5 Ton
suction_line7/8"
height49"
width21"
depth21"
weight118.0000
warranty10 Years with Online Registration
resources You will need Adobe® Acrobat® Reader to view PDF documents.
