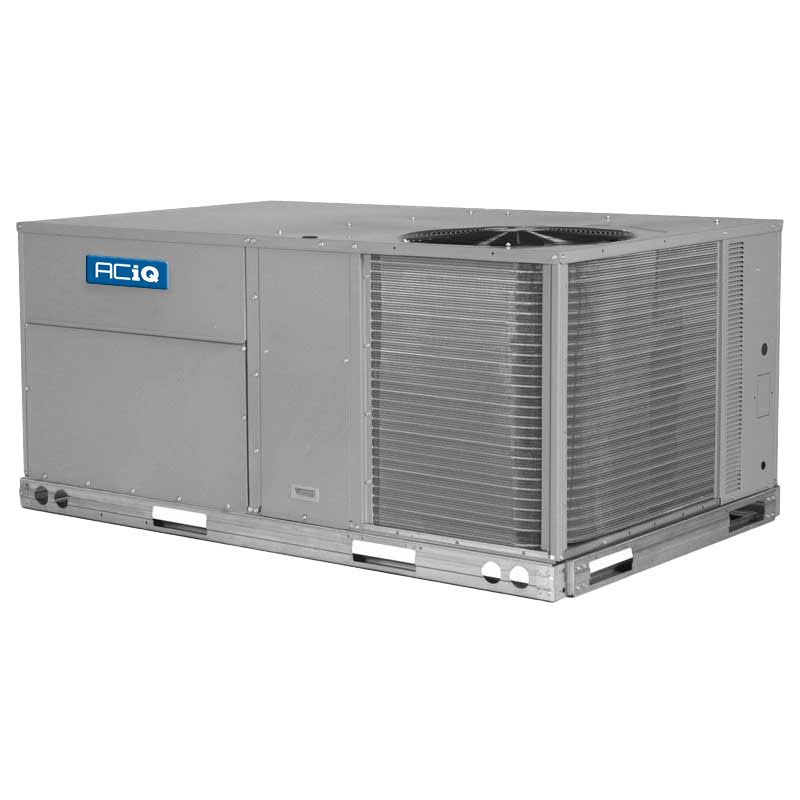

ACiQ 5 Ton 150,000 BTU Light Commercial Gas/Electric Packaged Unit - 208/230V 3 Phase

By

ACiQ

Model

RGS060HECA0AAA

ID

2332

Availability: Discontinued

Authorized ACiQ Dealer

$5,219.44

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

Features

  • 5 Ton, 13 SEER, 10.8 EER
  • Up to 150,000 heating BTUs with 80-82% efficiency
  • Single stage cooling capacity control
  • Redundant gas valve with single heating stage
  • Induced draft combustion
  • R-410A refrigerant
  • Solid-state electronic direct spark ignition system
  • Field-convertible from vertical to horizontal airflow
  • Pre-painted exterior panels and tested to 500 hours salt spray protection
  • Fixed refrigerant metering system
  • Fully insulated cabinet
  • Exclusive IGC solid-state control for on-board diagnostics with LED error code designation and burner control logic
  • Cooling operating range from 40°F up to 115°F
  • Access panels with easy grip handles and no-strip screw feature
  • Two-inch disposable return air filters
  • Tool-less filter access door
  • Standard belt drive, constant torque motor
  • Advanced terminal board for simple safety circuit troubleshooting and control box arrangement
  • Provisions for thru-the-bottom power entry capability
  • Single point gas and electric connections
  • Full perimeter base rail with built-in rigging adapters and fork truck slots
  • Scroll compressors with internal line-break overload protection
  • Copper tube, aluminum fin coils
  • 24v control circuit protected with resettable circuit breaker
  • Permanently lubricated evaporator-fan motor
  • Permanently lubricated, totally enclosed, shaft-down condenser motors
  • Low pressure, freeze protection, and high pressure switches
  • Exclusive IGC anti-cycle protection for gas heat operation
  • Flame roll-out safety protector
  • Liquid line filter drier

Product Specifications

More Information
ACiQ 5 Ton 150,000 BTU Light Commercial Gas/Electric Packaged Unit - 208/230V 3 Phase
SKURGS060HECA0AAA
Refrigerant ChargePre-Charged
Weight (in lbs)569.000000
Brand/ManufacturerACiQ
Furnace Efficiency / AFUE 80%
Cooling BTU59,000 BTU
Heating BTUUp to 150,000 BTU
Drive TypeDirect
Maximum CFM2880
Decibel Level (dBA)78 Decibels
RefrigerantR410A
SEER1 (Efficiency)13
EER10.8
Condenser StagesSingle Stage
Compressor TypeScroll
Electrical208/230v 3 Phase 60 Hz
PhaseThree Phase
Tonnage5 Ton
Burner StagesSingle
Height33 3/8"
Width74 3/8"
Depth46 3/4"
Warranty10 Years Aluminized Heat Exchanger, 5 Years Compressor, and 1 Year Parts
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING ,
