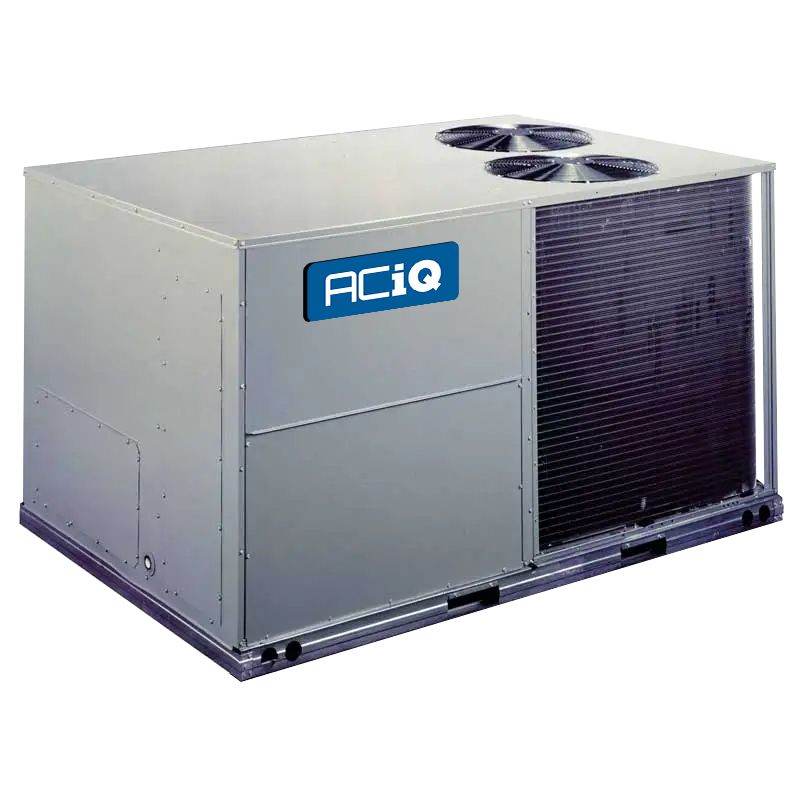

ACiQ 7.5 Ton 224,000 BTU Commercial Gas/Electric Packaged Unit - 208/230V 3 Phase

By

ACiQ

Model

RGS090HECA0AAA

ID

2334

Availability: Discontinued

Authorized ACiQ Dealer

$7,520.44

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

Features

  • 7.5 Ton, 12.8 IEER, 11.0 EER
  • Up to 224,000 heating BTUs with 82% efficiency
  • Two-stage / two-circuit cooling capacity control
  • Redundant gas valve with 2 stages of heating
  • Induced draft combustion
  • R-410A refrigerant
  • Solid-state electronic direct spark ignition system
  • Field-convertible from vertical to horizontal airflow
  • Pre-painted exterior panels and tested to 500 hours salt spray protection
  • Fixed refrigerant metering system
  • Fully insulated cabinet
  • Exclusive IGC solid-state control for on-board diagnostics with LED error code designation and burner control logic
  • Cooling operating range from 40°F up to 115°F
  • Access panels with easy grip handles and no-strip screw feature
  • Two-inch disposable return air filters
  • Tool-less filter access door
  • Standard belt drive, constant torque motor
  • Advanced terminal board for simple safety circuit troubleshooting and control box arrangement
  • Provisions for thru-the-bottom power entry capability
  • Single point gas and electric connections
  • Full perimeter base rail with built-in rigging adapters and fork truck slots
  • Scroll compressors with internal line-break overload protection
  • Copper tube, aluminum fin coils
  • 24v control circuit protected with resettable circuit breaker
  • Permanently lubricated evaporator-fan motor
  • Permanently lubricated, totally enclosed, shaft-down condenser motors
  • Low pressure, freeze protection, and high pressure switches
  • Exclusive IGC anti-cycle protection for gas heat operation
  • Flame roll-out safety protector
  • Liquid line filter drier

Product Specifications

More Information
ACiQ 7.5 Ton 224,000 BTU Commercial Gas/Electric Packaged Unit - 208/230V 3 Phase
SKURGS090HECA0AAA
Refrigerant ChargePre-Charged
Weight (in lbs)810.000000
Brand/ManufacturerACiQ
Furnace Efficiency / AFUE 80%
Cooling BTU83,000 BTU
Heating BTUUp to 224,000 BTU
Drive TypeDirect
Maximum CFM3750
Decibel Level (dBA)82 Decibels
RefrigerantR410A
EER11
IEER12.8
Condenser StagesTwo Stage
Compressor TypeScroll
Electrical208/230v 3 Phase 60 Hz
PhaseThree Phase
Tonnage7.5 Ton
Burner StagesTwo
Height41 14"
Width88 1/8"
Depth59 1/2"
Warranty10 Years Aluminized Heat Exchanger, 5 Years Compressor, and 1 Year Parts
