MRCOOL Universal Series 5 Ton 17 SEER Ducted Central Air Inverter Heat Pump Split System

Q: how big of a system do I need to heat and cool 3,400 sq.ft house ?

Please reference our sizing guide that will allow you to know exactly what kind of unit you'll be needing. If you have any further questions please feel free to give us a call! Thanks.

Q: Where are they manufactured?

MRCOOL is based out of Kentucky however most of their min-splits are manufactured in China.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

MRCOOL

Model

MDU18060

79714

Rating:

86% of 100

(15) Write a Review

7 Questions Answered

Availability: In Stock - Ready to Ship

Authorized MRCOOL Dealer

AHRI Number:206735344

$4,450.00

System Tonnage

Save up to $5,500 off Local HVAC Prices

Free Shipping

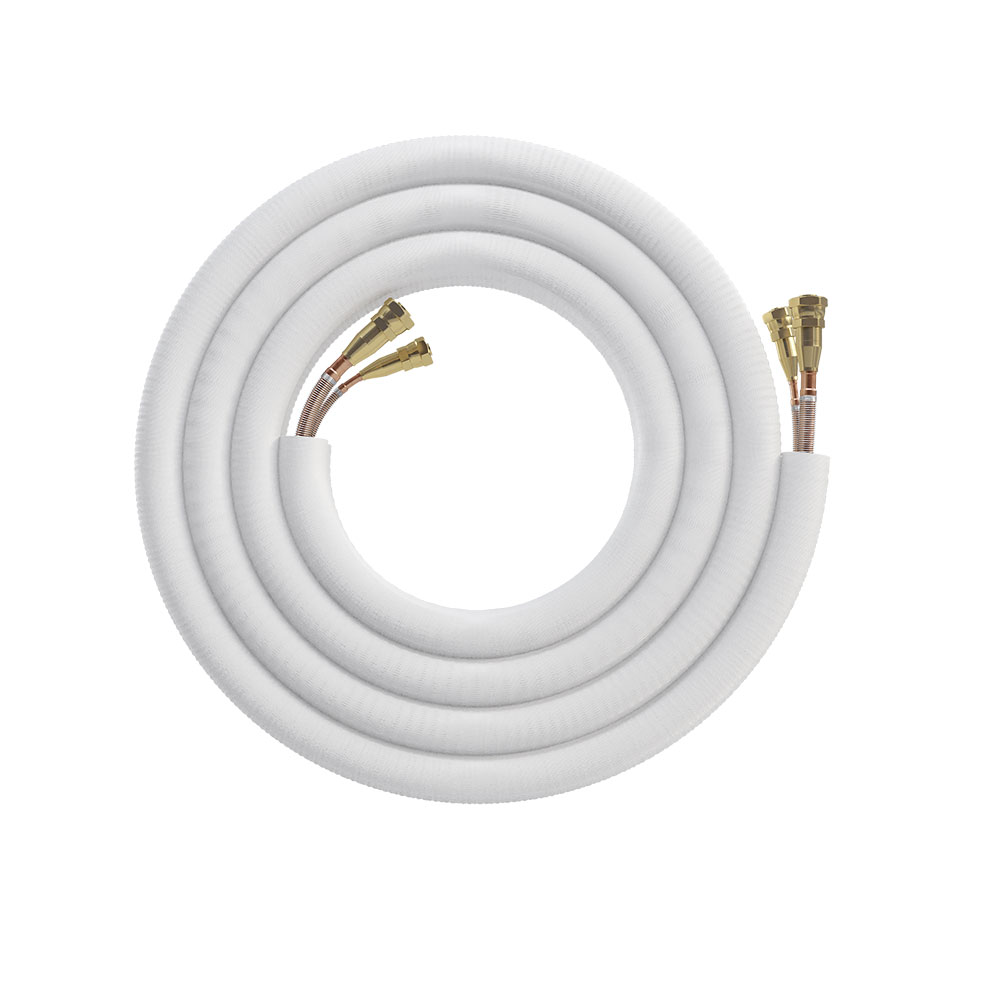

Pre-Charged Line Set

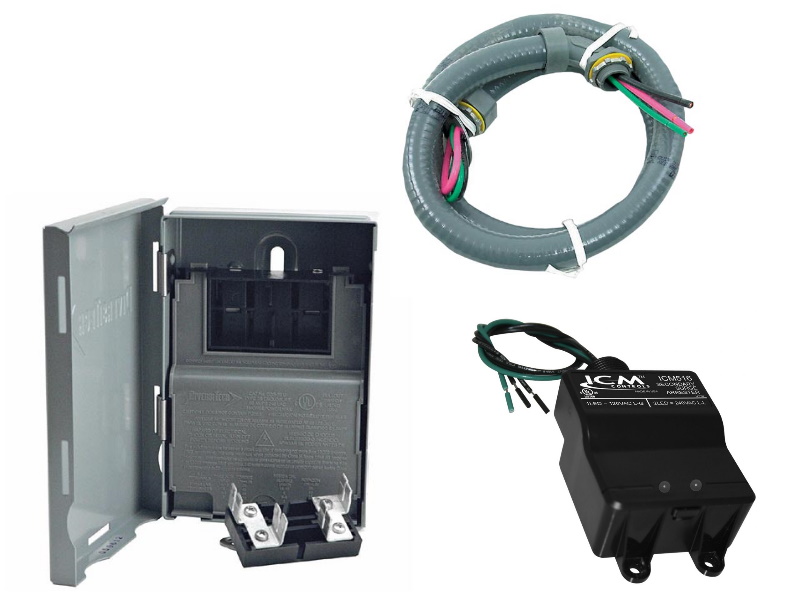

Condenser Kit

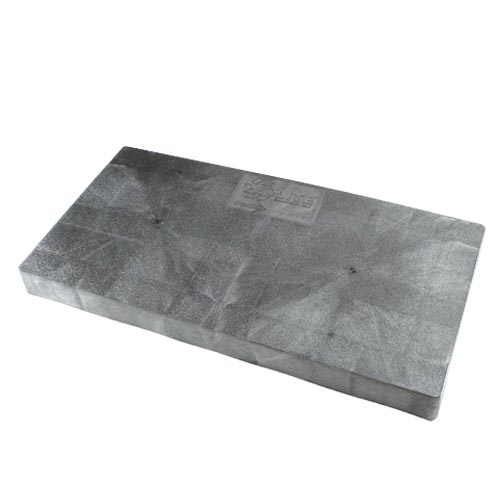

Mounting

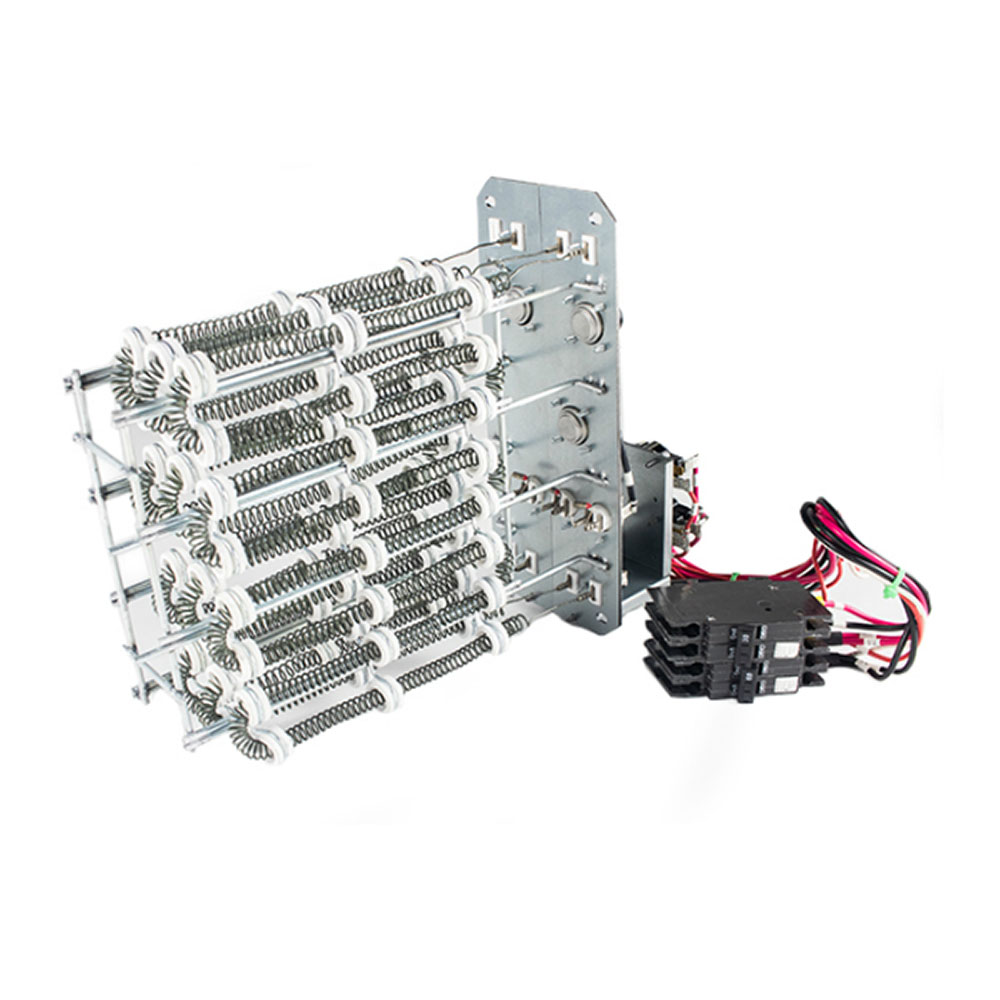

Electric Heat Kit

Qty

Accessories for this product

SAVE $790.30

ACiQ 2 Ton 20 SEER High Efficiency Central Heat Pump System | Inverter | Extreme Heat

SAVE $790.30

ACiQ 1.5 to 2 Ton 20 SEER High Efficiency Central Heat Pump System | Inverter | Extreme Heat

SAVE $865.25

ACiQ 4 Ton 16 SEER High Efficiency Central Heat Pump System | Inverter | Extreme Heat

SAVE $865.25

ACiQ 3.5 to 4 Ton 16 SEER High Efficiency Central Heat Pump System | Inverter | Extreme Heat

Description

The MRCOOL Universal Unitary Heat Pump system is an easy to install, full size air handler with a slim condenser, suitable for most 4-5 ton applications. This system is incredibly flexible, combining the ultimate in ducted comfort and easy installation. The 5 ton condenser can be field converted to a 4 ton with a different dip switch setting. The quick connect fittings on the condenser and air handler allow for an easy installation processes with MRCOOL's pre-charged lines, available as an accessory up to 50 feet in length. Using the same inverter technology used by the MRCOOL mini splits, the system can run at different speeds to optimize comfort and efficiency.

Features

Comes with quick connect fittings for easy installations
4 ton or 5 ton setting
80% BTU output at -4°F oudside temperature
Fireproof electrical box
Upflow and horizontal installation only

Advantages

No gas required; all electric system
Compatible with 3rd party thermostats; use your favorite or upgrade to a smart thermostat
No specialized tools required for installing the line sets
MRCOOL temperature compensation technology helps keep you comfortable in any weather condition

MDU18048060 System

MDUI18060 Indoor Unit
MDUO18060 Outdoor Unit

Product Specifications

More Information
MRCOOL Universal Series 5 Ton 17 SEER Ducted Central Air Inverter Heat Pump Split System
SKU	MDU18060
Weight (in lbs)	555.300000
AHRI Certificate Number	206735344
Brand/Manufacturer	MRCOOL
Controller	Not Included
HSPF	10
Cooling BTU	60,000 BTU
Heating BTU	60,000 BTU
Maximum CFM	1750
Decibel Level (dBA)	Indoor Unit: 51 \| Outdoor Unit: 65
Electric Heat	Heat Pump
Electric Backup Heat Capabilities (Optional)	15 Kilowatts, 20 Kilowatts
Energy Star	Yes
Refrigerant	R410A
SEER1 (Efficiency)	16-17
EER	10.5
Condenser Stages	Variable Speed
Compressor Type	Rotary
Liquid Line	3/8"
Suction Line	3/4"
Electrical	230 V. 1 Phase 60 Hz
Max Breaker Size	Indoor Unit: 15A \| Outdoor Unit: 45A
Min. Breaker Size	Indoor Unit: 4A \| Outdoor Unit: 35A
Tonnage	5 Ton
System Tonnage	5 Ton
BTU/Tonnage	60,000 BTU/5 Ton
Mini-Split Type	Multi-Positional
Min/Max Outdoor Temp for Heating	22°F-75°F
Min/Max Outdoor Temp for Cooling	5°F-129°F
Zone Compatibility	Single Zone
Height	Indoor Unit: 57" \| Outdoor Unit: 53-3/4"
Width	Indoor Unit: 24-3/4" \| Outdoor Unit: 42-3/4"
Depth	Indoor Unit: 21-1/4" \| Outdoor Unit: 14-1/2""
Additional Info	Indoor Unit: 202 lbs \| Outdoor Unit: 308 lbs
Warranty	10 Years with Online Registration
Resources	Brochure Air Handler Installation Manual Condenser Installation Manual Operating Range AHRI Certificate Warranty Information You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews 15

Questions and Answers

Customer Questions

Would a 5 ton work in a 1800 square foot greenhouse and maintain a 70 degree temperature year-round in ND?

The Quick Sizing Calculator located at the bottom of our Sizing Guide will give you the quick answer of whether it's the appropriate size for your greenhouse or not. Regarding it maintaining a 70 degree temperature in North Dakota, I would recommend giving us a call and speaking with one of our experts about it. There are a lot of factors to take into consideration when setting up a system like this for greenhouse use. Our experts will go through every detail with you to ensure you're getting the appropriate system.

how big of a system do I need to heat and cool 3,400 sq.ft house ?

Please reference our Sizing Guide that will allow you to know exactly what kind of unit you'll be needing. If you have any further questions please feel free to give us a call! Thanks.

Can this unit tie into existing ductwork?

Yes, the indoor air handler unit can be connected to existing ductwork. For more assistance, please give us a call at 1-888-377-2850.

Where are they manufactured?

MRCOOL is based out of Kentucky however most of their mini-splits are manufactured in China.

Which size system will I need for 2000 squared ft.² house?

Thank you for your question. In addition to square footage, the size of system you will require is dependent upon several other factors. These additional factors include the climate zone the space is located, the number of windows and the quality of insulation. For instance, in the warmest U.S. climates a 4 ton system will cool about 2101 to 2400 square feet. In the colder U.S. climates, this same 4 ton system will cool about 2301 to 2700 square feet. For heating, different parameters apply. In the warmer climates, you will need about 30 to 35 BTU per square foot for adequate heating; In colder climates you will need about 50 to 60 BTUs per square foot for adequate heating. But again, the quality of insulation and number of windows also impacts this range. For more in depth information on sizing, please reference our sizing guide. If you have any further questions, please give us a call.

Can the system be down flow

The MRCOOL ducted heat pump systems are not rated for downflow operation. We do however have several heat pump products from Goodman and AirQuest that do offer a downflow solution (Example: Model #R4H460GKC / FEM4X6000BL). You can find more of these products by visiting the heat pump systems page on our website. If you have any further questions please feel free to give us a call! Thanks.

Bolt to bolt dimensions for the base on the 5 ton condenser unit.

The dimensions of the base for this unit are 42-3/4 inches from edge to edge and 24-1/2 inches from bolt to bolt of the legs. If you have any further questions please feel free to give us a call! Thanks.
