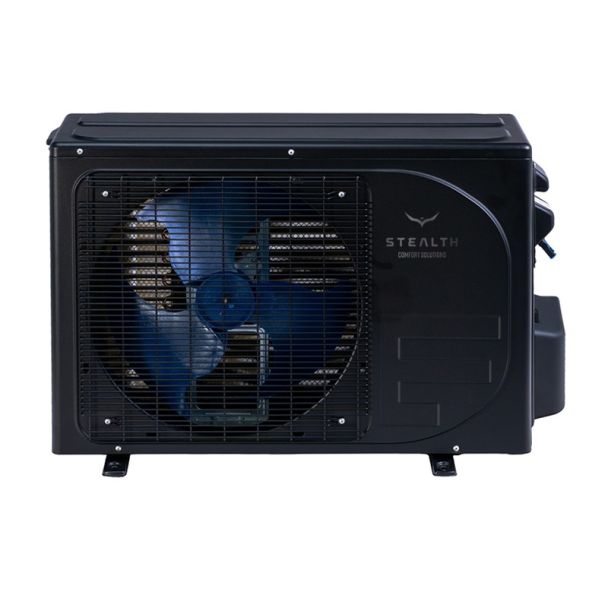

24,000 BTU Stealth Solar Single Zone Heat Pump Condenser - R32 | 230V

24,000 BTU Stealth Solar Single Zone Heat Pump Condenser - R32 | 230V

Note this unit is Solar Ready, but does not require use of Solar for Operation.

Solar Panels Not Included

The Stealth Solar-Ready Hybrid 24,000 BTU mini-split is designed for powerful, energy-efficient climate control while supporting both grid and direct solar inputs. It seamlessly switches between AC and DC, allowing professional installers to offer solar-integrated comfort without compromising performance.

Solar-Ready, Grid-Optional Operation

• Hybrid AC/DC input (208–240 VAC & 90–380 VDC) accepts solar power and grid power simultaneously
• Automatically prioritizes solar input during daylight hours
• MC4-compatible solar terminals—connect PV array directly to the outdoor unit
• Built-in AC power limiter (adjustable up to 2250 W AC) controls grid usage
• Recommended solar input between 1600–2400 W allows daytime off-grid capability

High-Efficiency Heating & Cooling

• 24,000 BTU cooling and 26,000 BTU heating capacity
• SEER2 rating of 21 / HSPF2 rating of 9.6 for excellent seasonal efficiency
• COP of 11.82 Btu/W under optimal conditions
• Operates in outdoor temperatures from 5°F to 131°F(14 °F to 136 °F)
• Eco-friendly R32 refrigerant with reduced environmental impact

Installer-Focused Design

• Includes pre-vacuumed 16.4 ft refrigerant line set, ready for professional connection
• Quick-connect MC4 solar inputs simplify PV integration
• Compact outdoor unit (approx. 132 lb) accommodates versatile mounting
• Indoor unit designed for whisper-quiet operation (39–50 dB(A)) with modern styling
• Maximum line-set length: 82 ft; elevation difference: up to 32 ft
