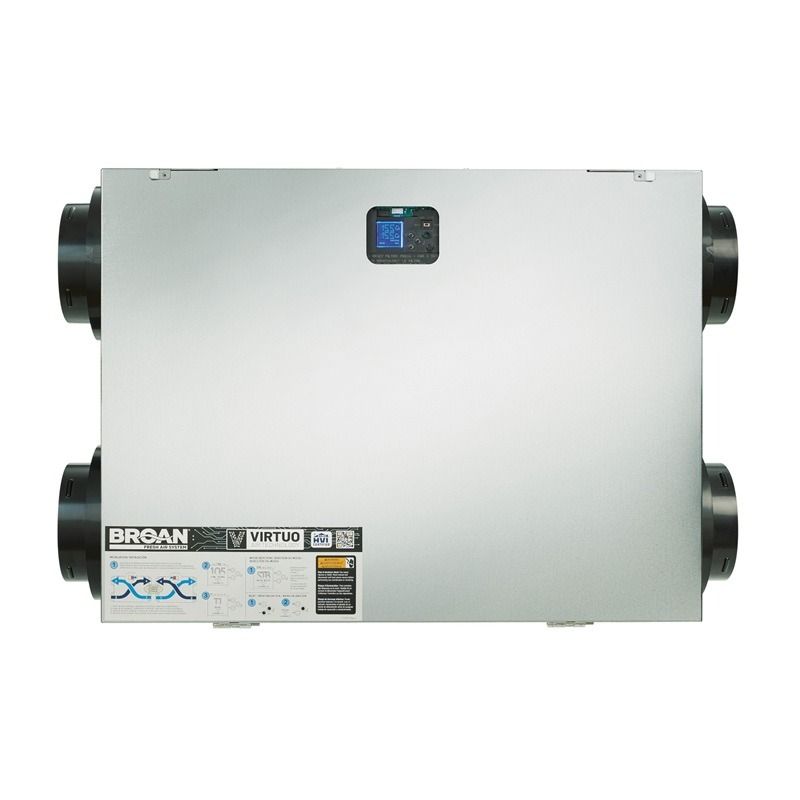

Broan ONE 150 CFM Energy Recovery Ventilator (ERV), Power Cord
By
Broan
In stock
Model
BLP150E75NS-PC
ID
208761
Was $1,627.00 Your Low Price Special Price $929.00
Product Features
- Reversible Airflow – Instantly switch airflow direction
- Flexible Mounting – Wall or horizontal installation
- Integrated LCD – Shows live CFM and power
- Low-Profile Design – Less than 10 inches tall

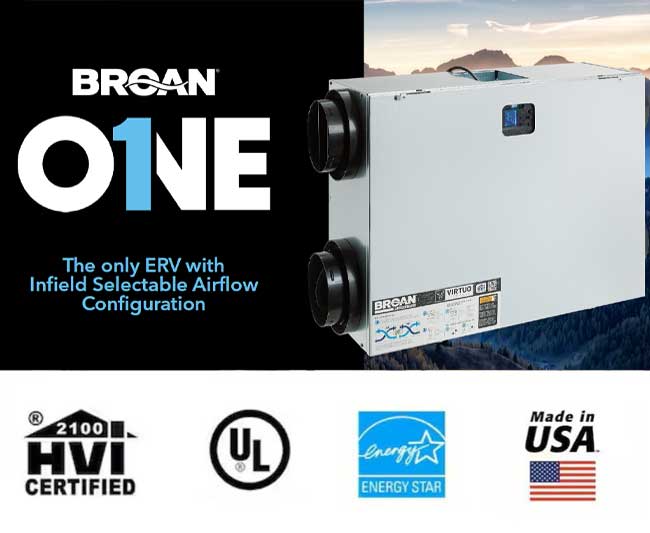

The Broan® ONE Energy Recovery Ventilator (ERV) is the industry’s most advanced and versatile fresh air system, engineered to streamline the design, specification, and installation process while delivering exceptional indoor air quality in a sleek, low-profile design. Equipped with innovative VIRTUO™ Technology, the unit features auto-balancing and self-adjusting capabilities, enabling the fastest installation in its class—saving installers up to 20 minutes per unit. Its integrated airflow selection switch allows seamless configuration changes without the need for multiple model specifications, simplifying both design and logistics, particularly in mirrored floor plan applications. An integrated LCD interface enables precise airflow adjustment in 1 CFM increments and provides real-time feedback on CFM and power consumption. Additionally, horizontal and wall-mount installation options offer enhanced flexibility to accommodate a wide range of application requirements.
Product Features:
- TrueCFMâ„¢ Technology: Ensures accurate airflow performance from installation through final inspection.
- Always Balanced: Equipped with proprietary VIRTUOâ„¢ Technology that continuously self-adjusts to maintain perfect airflow balance.
- Reversible Airflow Configuration: Integrated selection switch allows quick airflow direction changes, no need for different models to match mirrored layouts. (Patent pending)
- One ERV. Multiple Applications: Simplifies specification, stocking, and installation by offering a single unit that fits a wide range of needs.
- Fastest Installation in Class: Saves up to 20 minutes per install with plug-and-play setup and built-in VIRTUOâ„¢ balancing technology.
- High-Efficiency Motor: Features a powerful ECM PMSM motor delivering up to 155 CFM at 0.2" w.g. for energy-smart performance.
- Code-Compliant: Helps meet 2021 IECC, ASHRAE 90.1 (2019/2022), and ENERGY STAR® requirements, eligible for 45L tax credits.
- Smart LCD Control: Intuitive screen allows 1 CFM increment adjustments with real-time CFM and watt usage feedback.

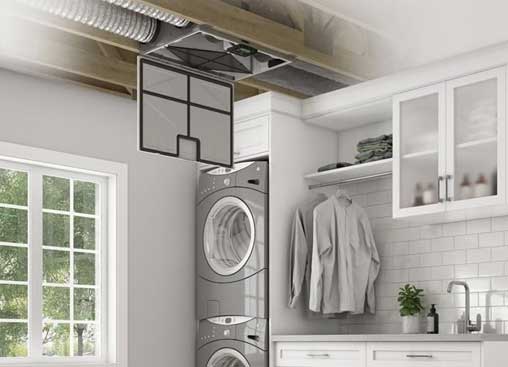

- Flexible Installation Options: Can be installed in either horizontal or wall-mount configurations to fit space and layout requirements.
- Advanced Air Filtration: Includes MERV 8 filter with optional upgrade to MERV 13 for enhanced indoor air quality.
- Control Compatibility: Works with a wide variety of modern, user-friendly ventilation controls to suit diverse applications.
- Lower HERS Scores: Delivers superior energy recovery, helping reduce HERS scores by up to 6 points compared to standard ventilation methods.
Warranty Information
The Broan® Energy Recovery Ventilator (ERV) is backed by Broan-NuTone’s Limited Warranty, ensuring reliable performance and lasting quality. The ERV Core and all Parts are warranted to be free from defects in material and workmanship for five (5) years from the date of original purchase. During this warranty period, Broan-NuTone will, at its option, repair or replace the product or any defective component without charge, excluding the cost of removal, reinstallation, and transportation. This warranty applies only to the original consumer purchaser and the original installation location.
This warranty does not cover normal wear and tear, routine maintenance items, cosmetic damage, filters, fuses, or accessories sold separately. It also does not extend to damage caused by improper installation, misuse, abuse, accidents, lack of maintenance, or acts of nature. Products with altered, defaced, or missing serial numbers are excluded. This Limited Warranty gives you specific legal rights, and you may also have other rights which vary by state or province.
Premium Materials & Construction
The Broan® ONE Energy Recovery Ventilator (ERV) is built with premium materials and next-generation engineering for long-lasting performance in residential applications. Its low-profile housing is designed for versatility, allowing wall or horizontal mounting without requiring additional clearance. Inside, a durable ERV core delivers up to 84% SRE and 87% ASRE efficiency, while the advanced PMSM ECM motor ensures reliable, energy-efficient operation.
The system comes standard with a MERV 8 filter and offers an optional MERV 13 upgrade for enhanced air quality. Internal electrical connections and an integrated LCD control simplify installation and servicing, while the streamlined design is engineered to meet ENERGY STAR® and 45L Tax Credit requirements.
Why Choose Broan® ONE ERV?
Virtuoâ„¢ Air Technology- Auto-balances airflow in minutes with no pressure taps or external dampers required
- Self-adjusts to conditions for consistent performance over time
- Reduces installation time, service calls, and commissioning errors
- Infield Selectable Airflow Configuration accommodates mirrored floor plans with the flip of a switch
- Flexible mounting: vertical wall or horizontal orientation
- Compact, low-profile housing engineered for long-term reliability
- Rugged design suited for multi-family, townhome, and single-family projects
