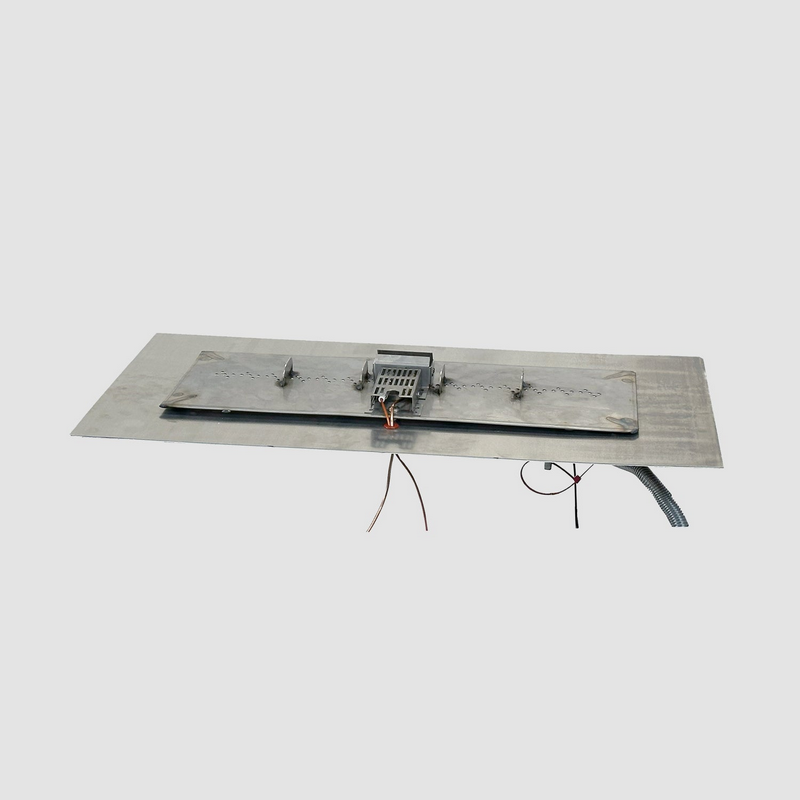

Outdoor GreatRoom 13.5" x 60" Linear Crystal Fire Plus Gas Burner Insert and Plate Kit with Electronic Ignition (NG)

By

Outdoor GreatRoom

Out of stock
Model

BP2460DSING-B

ID

198693

Linear Stainless Steel Crystal Fire® Plus Burner Insert and Plate Kits can be used for custom-built fire pits or your own outdoor fire feature to complement your landscaping project. A no-flange edge and undermount installation are concealed by fire media to highlight the gorgeous dancing flames. All burners have a higher BTU capacity and upgraded burner construction for a brighter, taller, fuller, more yellow flame. With just the push of a button, a beautiful clean-burning fire appears atop a bed of tempered fire glass gems.

Features

  • Commercial-grade #304 stainless steel
  • Safety ignition and shutdown – will shut off connection to gas source if flame is extinguished for any reason
  • “Positive Connect” offers minimal gas connections and quick installation time as most connections are made in the factory
  • UL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
  • Installation should be completed by a certified gas technician
  • Kits above 12" x 64” include two valves and two control panels
  • Depending on your application, you may need less fire media than suggested/included amount. Contact OGC for further assistance.
  • WARNING: This product can expose you to chemicals including Carbon Monoxide and Benzene which are known to the State of California to cause cancer or birth defects or reproductive harm. For more information, visit Proposition 65 Warnings.

Variable Control Safety Valve/Manual Ignition

  • Fully adjustable flame height
  • Comes setup for liquid propane but can be converted to natural gas using the included conversion kit
  • Includes Variable Control Safety Valve, LP hose and regulator, metal flex hose, control panel, clear tempered fire glass gems

Direct Spark Ignition System/Automatic Ignition

  • Please specify LP or NG, not field-convertible
  • Includes Direct Spark Ignition system, hose and regulator (for LP), metal flex hose, and clear tempered fire glass gems
  • Optional Direct Spark Ignition safety system remote (CF-DSI-R), timer, other control panel configurations, emergency stop button, and other accessories sold separately
More Information
Outdoor GreatRoom 13.5" x 60" Linear Crystal Fire Plus Gas Burner Insert and Plate Kit with Electronic Ignition (NG)
FeatureSpec
SKUBP2460DSING-B
Weight (in lbs)60
Brand/ManufacturerOutdoor GreatRoom
UPC810044680751
Included ItemsClear Fire Glass, Gas Flex Line, Power Adapter, Switch
Heating BTU80,000 BTUs
Flue LocationTop
Electrical120V
Amperage Requirement1.5A (Required 15A Dedicated Circuit)
Main Burner MaterialCommercial 304 Stainless Steel
Material Stainless Steel
Ignition TypeElectronic Direct Spark Ignition
Fuel TypeNatural Gas
CertificationUL and ULC Listed to ANSI Z21.97-2017/CSA 2.41-2017
ShapeLinear
Length60"
Height14.61"
Width60"
Depth13.5"
Warranty1 Year Warranty
