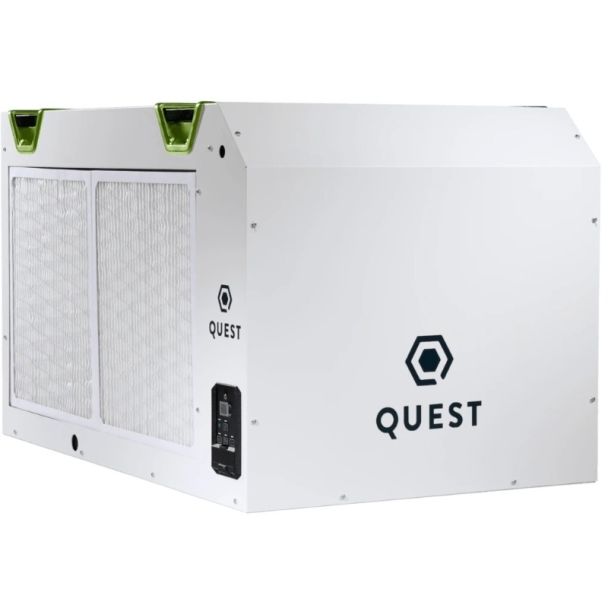

The Quest 506 is a high-efficiency overhead dehumidifier designed to control excess humidity in basements, grow rooms, crawl spaces, and other moisture-prone areas. With its compact, ceiling-mounted design, powerful 500-pint per day moisture removal capacity, and ability to be attached to a duct, it is ideal for maintaining a dry and healthy environment in both residential and commercial settings.
The Quest 506 dehumidifier is the ideal choice for commercial and agricultural environments because of its superior efficiency. Featuring the new M-CoRR Technology, a patented multi-coil design, this unit delivers some of the highest efficiencies available. It uses a highly effective MERV-13 filter and an environmentally friendly R454B refrigerant, making the Quest 506 one of the most advanced and eco-conscious dehumidifiers on the market.
This high-efficiency dehumidifier not only adapts to your needs, but it does so with exceptional flexibility in a wide range of environments. From warehouses and offices to restaurants and grow operations, the Quest 506 delivers excellent filtration and moisture removal performance.
The Quest 506 is designed for quick and easy setup with its plug-in design and included 10-foot power cord. It is recommended to connect to a 270V outlet with a plug face type of 7-20P for optimal operation. Whether mounted overhead or placed on the floor, the installation process is straightforward and efficient.
The Quest 506 is backed by a strong 5-year warranty, which includes a 1-year comprehensive warranty and a 4-year parts warranty covering the condenser, evaporator, and compressor, providing long-lasting reliability and peace of mind.
| Quest 506 High-Capacity Dehumidifier - 277V - R454B (SKU 4046310) | |
|---|---|
| SKU | QU13366 |
| Weight (in lbs) | 280.000000 |
| Brand/Manufacturer | Quest |
| Additional Information | Auto-Restart |
| Additional Information | Number of Fan Speeds: 1 |
| Additional Information | Energy Factor: 3.8 L/kWh |
| Additional Information | Certifications: ETL, UL |
| Heating BTU | 22,800 |
| Maximum CFM | 1350 CFM |
| Refrigerant | R454B |
| Capacity | 500 pints |
| Wattage | 2700 W |
| Max Breaker Size | 10 Amps |
| Height | 33.8" |
| Width | 30.1" |
| Depth | 44.8" |
| Pint Capacity | 200+ |
| Usage | Ducted, Gyms/Fitness Centers, Indoor Growing/Greenhouses, Kennels/Stables, Barn/Shed, Warehouses |
| Additional Info | Cabinet Width: 28.9" |
| Warranty | 5-Year Compressor and Refrigerant System Warranty | 1-Year Parts and Labor Warranty |
