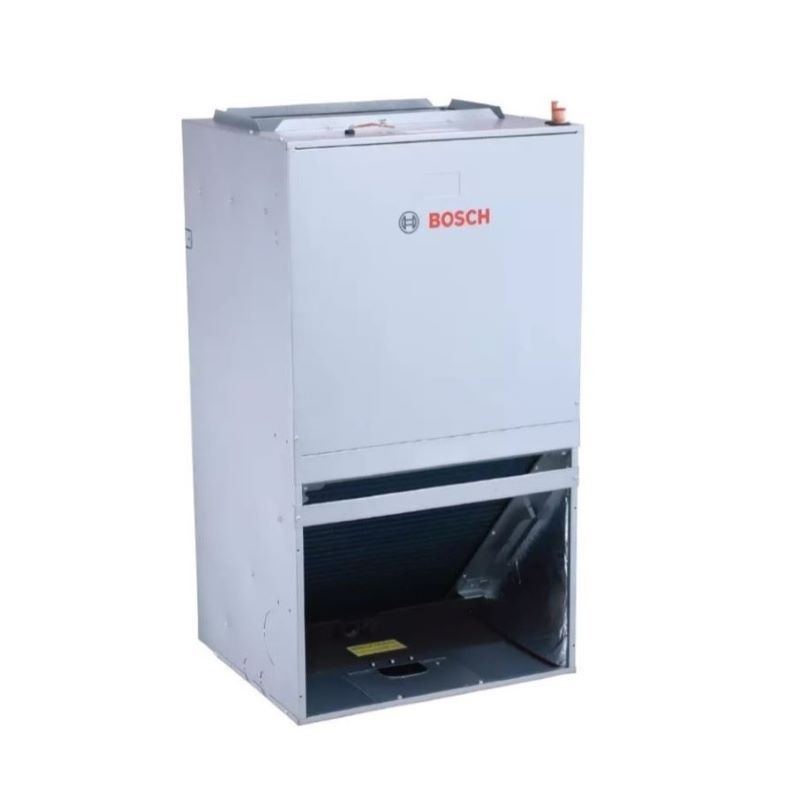

The Bosch Inverter Ducted Split (IDS) Light series Wall-Mount air handler distinguishes itself with its adaptable design for vertical wall or stud mounting, making it an ideal fit for multi-tenant buildings where space optimization is crucial. If you want superior quality and enhanced comfort, look no further than this model.
The Bosch IDS Light series BWA-18WN1-M16 wall-mount air handler is rated for an output of 1.5 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency.
Bosch IDS Light series offers a 10 year parts and 2 gateway connectivity components warranty on this unit. All other Bosch parts or components installed in the field have a 1 year parts warranty.
To make a more versatile unit, Bosch IDS Light series designed the BWA-18WN1-M16 to easily be installed in a vertical position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, this air handler is designed with an extremely strong, one-piece, painted steel outer casing to protect the unit, and the all-aluminum coil has a lower chance of refrigerant leakage compared to standard copper coils.
1.5 Ton Bosch Wall-Mount Air Handler - IDS Light Series | |
---|---|
SKU | BWA-18WN1-M16 |
Weight (in lbs) | 142.000000 |
Brand/Manufacturer | Bosch |
Cooling BTU | 18,000 |
Blower Motor | Multi Speed ECM Motor |
Horsepower | 1/3 HP |
Refrigerant | R410A |
Filter Size | 16" x 20" |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Electrical | 208/230v 1 Phase 60Hz |
Max Breaker Size | 15 Amps |
Tonnage | 1.5 Ton |
Connection | Sweat |
Height | 36 1/2" |
Width | 20 1/2" |
Depth | 15" |
Warranty | 10 Years Parts and 2 Year Gateway Connectivity Components Limited Warranty |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
