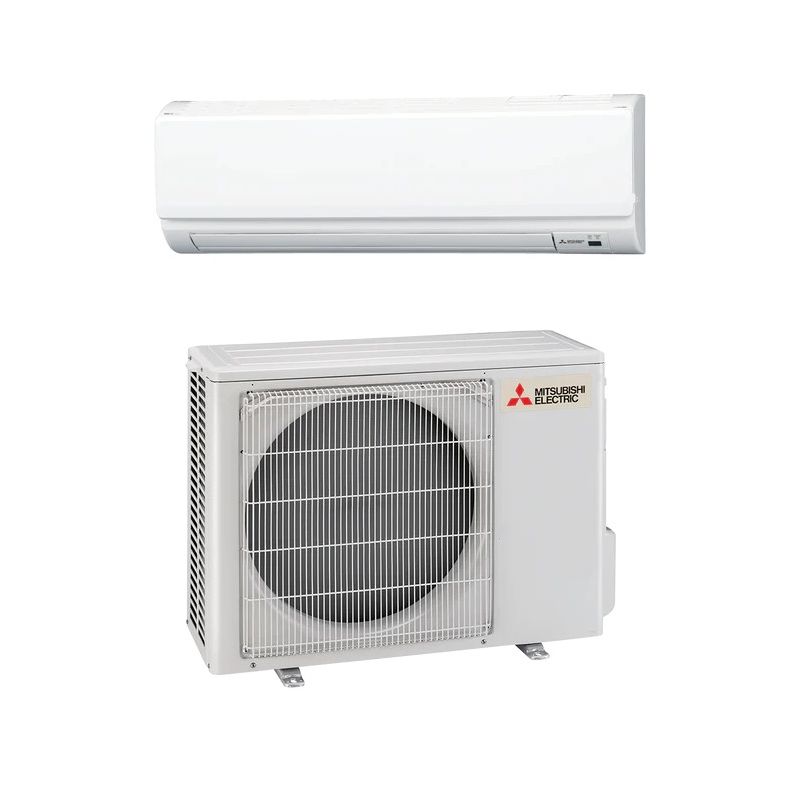

12,000 BTU Mitsubishi 26.1 SEER Wall Mounted Mini Split Heat Pump System | MSZ-FH12NA / MUZ-FH12NAH-R410A

12,000 BTU Mitsubishi 26.1 SEER Wall Mounted Mini Split Heat Pump System | MSZ-FH12NA / MUZ-FH12NAH-R410A

Name: 12,000 BTU Mitsubishi 26.1 SEER Wall Mounted Mini Split Heat Pump System | MSZ-FH12NA / MUZ-FH12NAH-R410A
Brand: Mitsubishi
SKU: MSZ-FH12NA / MUZ-FH12NAH
Availability: OutOfStock

12,000 BTU Mitsubishi 26.3 SEER Wall Mounted Mini Split Heat Pump System | MSZ-FH12NA / MUZ-FH12NAH

Required Fields *

Be the first to review this product

Out of stock

Mitsubishi

Out of stock

Model

MSZ-FH12NA / MUZ-FH12NAH

205437

Description

Mitsubishi MSZ-FH12NA / MUZ-FH12NAH 12,000 BTU Ductless Mini Split System offers exceptional performance, advanced filtration, and reliable year-round comfort with Hyper-Heating INVERTER® (H2i®) technology. This system is designed to heat and cool efficiently even in extremely cold climates.

Key Features:

Capacity: 12,000 BTU
SEER: Up to 30.5
HSPF: Up to 13.5
Mount Type: Wall-Mounted Indoor Unit (MSZ-FH12NA)
Outdoor Unit: Hyper-Heat Pump (MUZ-FH12NAH)
Filtration: Includes Plasma Quad filter system for improved indoor air quality
Advanced Comfort: Dual vane airflow, i-see Sensor® technology for temperature monitoring
Cold Climate Capable: Delivers 100% heating capacity down to 5°F and continues heating down to -13°F
Quiet Operation: As low as 20 dB(A) indoors

Applications:

Perfect for bedrooms, home offices, additions, and small living areas that require efficient, quiet heating and cooling.

What’s Included:

MSZ-FH12NA Indoor Unit
MUZ-FH12NAH Outdoor Unit
Wireless remote controller

Product Specs

More Information
Mitsubishi 12,000 BTU R410A FH-Series Single Zone H2i Mini Split Heat Pump Condenser - 230V
Feature	Spec
SKU	MUZ-FH12NAH
Refrigerant Charge	Pre-Charged For: 25'
Weight (in lbs)	83
AHRI Certificate Number	202680596
Brand/Manufacturer	Mitsubishi
Controller	Wireless Included
Additional Information	Heat Pump
Additional Information	Maximum Line Set Length: 100'
Additional Information	Drain: 5/8"
Heating BTU	21,000 BTU
Maximum CFM	140-454CFM
Decibel Level (dBA)	21-42
Energy Star	Yes
Refrigerant	R410A
Capacity	Dehumidification Rate: 0.41 gal/hr
HSPF	11.5
SEER2 (Efficiency)	26
EER	13.8
Liquid Line	1/4"
Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz
Phase	Single Phase
Max Breaker Size	15
Min. Breaker Size	10
Amperage Requirement	15
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted
Min/Max Outdoor Temp for Heating	Min: -13°F/-25°C, Max: 81°F (27°C)
Zone Compatibility	Single Zone
Operating Mode	Heating
Height	21-5/8"
Width	31-1/2"
Depth	11-1/4"
Warranty	5 years parts, 7 years compressor
Resources	Submittal Installation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
12,000 BTU Wall Mounted Mitsubishi Mini Split Multi Zone Fh Series - Air Handler - MSZ-FH12NA-R410A
Feature	Spec
SKU	MSZ-FH12NA
Weight (in lbs)	29
Brand/Manufacturer	Mitsubishi
Controller	Wireless Included
Additional Information	Drain: 5/8"
Cooling BTU	13,600
Maximum CFM	117-398 CFM
Decibel Level (dBA)	21-41
Refrigerant	R410A
Capacity	Dehumidification Rate: 0.38 gal/hr
HSPF	12.5
SEER1 (Efficiency)	26
EER	13.8
Liquid Line	1/4"
Suction Line	3/8"
Electrical	208/230V 1 Phase 60 Hz
Phase	Single Phase
BTU/Tonnage	12,000 BTU/1 Ton
Mini Split Type	Wall Mounted
Zone Compatibility	Single Zone
Operating Mode	Cooling
Height	12-11/16"
Width	36-7/16"
Depth	9-3/16"
Warranty	5 years parts, 7 years compressor
Resources	Submittal. Installation Manual Service Manual Parts Manual You will need AdobeÂ® AcrobatÂ® Reader to view PDF documents.
Safety Information	PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.

Reviews

Accessories

FAQ's

Customer Questions

Why Choose Mitsubishi Mini Splits?

Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
