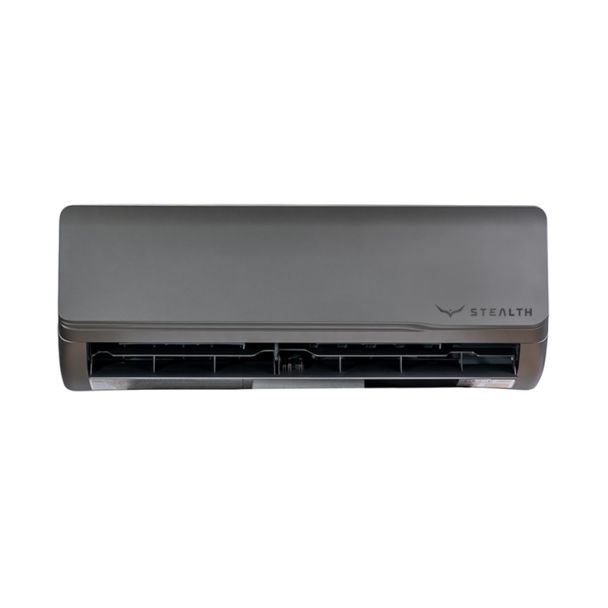

12,000 BTU Stealth Solar Wall Mount Single Zone Air Handler - R32 | 115V

12,000 BTU Stealth Solar Wall Mount Single Zone Air Handler - R32 | 115V

Note this unit is Solar Ready, but does not require use of Solar for Operation.

Solar Panels Not Included

The Stealth Solar-Ready Hybrid 12,000 BTU mini-split system is designed to deliver reliable year-round comfort while offering flexible energy options. This unit supports both traditional AC power and direct DC solar input, allowing seamless switching between grid and solar depending on availability. It’s an ideal solution for homes or light commercial spaces seeking energy savings and solar integration without compromising performance.

Solar-Ready, Grid-Optional Operation

Runs efficiently on solar or grid power—or both—with no batteries or inverters required.

• Hybrid design accepts 115V AC and 90–380V DC input directly into the outdoor unit
• Automatically prioritizes solar when available to reduce grid reliance
• MC4-compatible solar inputs eliminate the need for additional solar equipment
• Built-in AC power limiter (adjustable from 0 to 600W) for energy use control
• Capable of operating off-grid during daylight with sufficient solar input

High-Efficiency Heating and Cooling

Delivers consistent climate control in a variety of environments.

• 12,000 BTU cooling and heating capacity
• SEER2 rating of 22.5 / HSPF2 rating of 10.5 for exceptional efficiency
• Operates in outdoor temperatures from 5°F to 131°F
• Uses eco-friendly R32 refrigerant for reduced environmental impact

Installer-Focused Design

Engineered for quick, professional installation with minimal on-site prep.

• Includes pre-vacuumed 16.4 ft refrigerant line set
• Quick-connect solar terminals on outdoor unit
• Compact outdoor condenser (approx. 110 lbs) for flexible placement
• Indoor unit designed for quiet operation with modern aesthetics
