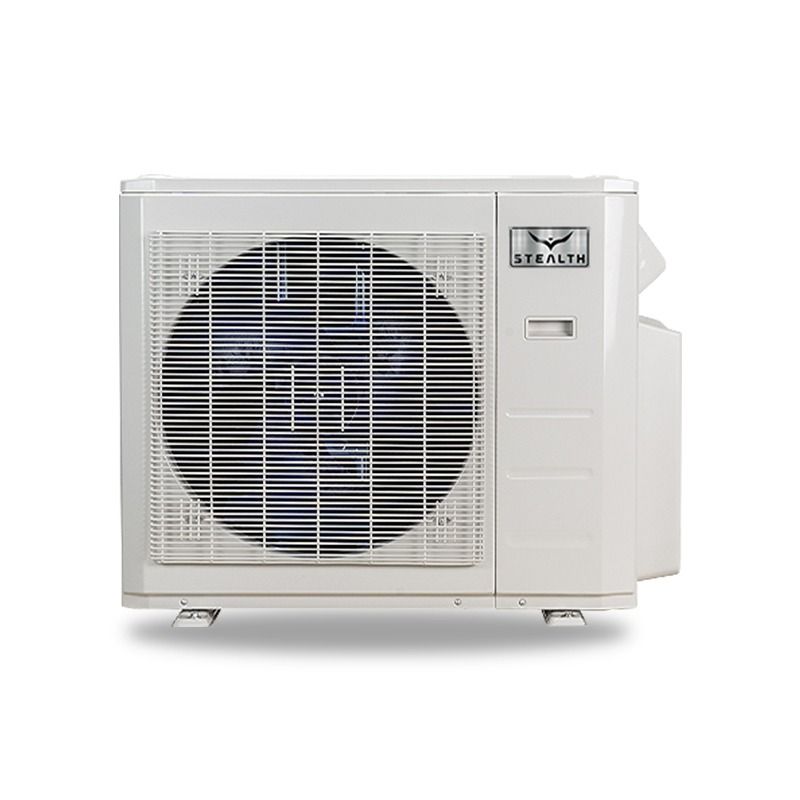

12,000 BTU Stealth DIYCOOL Single Zone Mini Split Heat Pump Condenser – R454B | 115V

SAVE $659.99
In Stock - 14 Ready to Ship
Free Shipping
By

Stealth

In stock
Model

EZ-12Z-HP115B

ID

209076

Was $1,539.99 Your Low Price Special Price $880.00

  • EZ Connect installation
  • Includes features such as timer mode, refrigerant leakage detection, and more
  • Smart Controls that work with your favorite devices.
  • R-454B refrigerant
  • SEER2: 19.5
  • >

Enjoy efficient, comfort with a high-performance outdoor condenser designed for easy installation.

The Stealth DIYCOOL Series 12,000 BTU Single Zone Mini Split Heat Pump Condenser delivers reliable heating and cooling for spaces up to 600 square feet. Operating on 115V power and utilizing environmentally friendly R-454B refrigerant, this outdoor condenser provides high-efficiency performance while helping reduce energy consumption. Designed with an EZ Connect installation system, it pairs seamlessly with compatible Stealth DIYCOOL Series wall-mounted indoor air handlers to create an efficient single-zone comfort solution.

Key Features

  • EZ Connect Installation — Designed with a quick-connect system to simplify installation and reduce setup time.
  • High-Efficiency Heating & Cooling — Provides dependable year-round comfort with energy-efficient operation for residential applications.
  • Eco-Friendly R-454B Refrigerant — Uses next-generation refrigerant to deliver efficient performance with a lower environmental impact.
  • Quiet Outdoor Performance — Engineered for low-noise operation while maintaining reliable performance in a variety of weather conditions.
  • Compatible Single-Zone System — Pairs with compatible Stealth DIYCOOL Series wall-mounted indoor air handlers for a complete single-zone heating and cooling solution.

Warranty

Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.

More Information
12,000 BTU Stealth DIYCOOL Single Zone Mini Split Heat Pump Condenser – R454B | 115V
FeatureSpec
SKUEZ-12Z-HP115B
Refrigerant Charge1.32 lbs (Pre-Charged for 25ft Line Set)
Weight (in lbs)67.24
AHRI Certificate Number216980886
Brand/ManufacturerStealth
ReplacesEZ-12Z-HP115
UPC605468196182
Cooling BTU12,000 BTU
Heating BTU12,000 BTU
Decibel Level (dBA)52 dBA
RefrigerantR454B
HSPF29.3
SEER2 (Efficiency)19.5
EER29
Liquid Line1/4"
Suction Line3/8"
Electrical115V | 1 Phase | 60Hz
Max Breaker Size20 Amps
Min. Breaker Size18 Amps
BTU/Tonnage12,000 BTU/1 Ton
Min/Max Outdoor Temp for Heating-13°F to 122°F
Min/Max Outdoor Temp for Cooling-13°F to 122°F
Zone CompatibilitySingle Zone
Height19.49"
Width28.35"
Depth10.63"
Warranty7 Year Compressor / 5 Years Parts Warranty with Online Registration
