18,000 BTU 14 SEER Dual Zone Concealed Duct Stealth Comfort Designer + Heat Pump System 12+12

OVERVIEW

The Stealth Pinnacle Series Multi Zone SC-18Z-HH-M2 heat pump condenser is Energy Star rated, with Hyper Heat performance down to an outside temperature of –31 degrees Fahrenheit. The outdoor unit has connections for up to 2 air handlers and is pre-charged with R410a refrigerant for 66' of total line set length.

Pinnacle Series condensers have the highest efficiency ratings of any multi zone mini split, up to 23 SEER and 10.5 HSPF.

QUICK FACTS

• Energy Star Rated
• Max efficiency up to 23 SEER and 10.5 HSPF
• Heating temperatures range from -31°F to 75°F
• Cooling temperatures range from 0°F to 118°F
• 14 year compressor, 5 year parts extended warranty with registration
• 18,000 BTU – 42,000 BTU condenser models available
• Rugged construction with acrylic resin fin coating for durability

18,000 BTU, 23 SEER

This condenser has connections for up to 2 air handlers to cover different rooms or zones in your space. The SEER rating of 23 means you pay less for this amount of heating and cooling compared to systems with lower SEER values. The Stealth Pinnacle Series means elite performance at attractive prices.

14 Year Warranty

The Stealth Emerald Series features a 14 warranty with online registration. The standard warranty on the SC-18Z-HH-M2 is a 5-year parts and 7-year limited compressor warranty. With online registration and an installation following state and local installation codes, the compressor warranty increases to 14 years.

Durability and Reliability

Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Pinnacle Series model, resulting in powerful performance across a punishing range of conditions. The SC-18Z-HH-M2 provides continuous heat with outdoor temperatures down to -31 degrees Fahrenheit.

Installation and Maintenance

Every Stealth Pinnacle series condenser comes pre-charged with R410a refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including insulated copper refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. Stealth Pinnacle series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside units.

Please note:

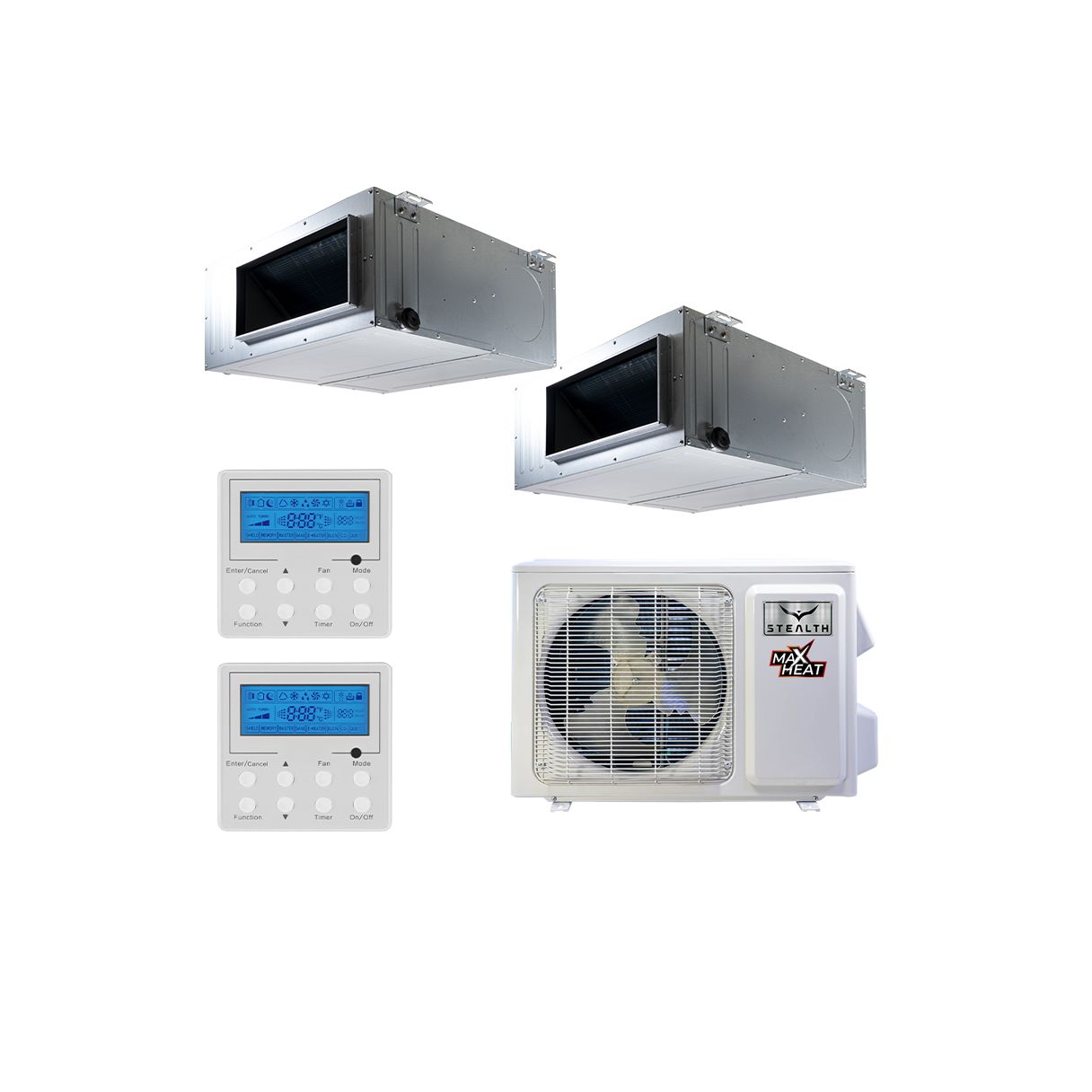

This system includes only the outdoor condenser, indoor air handlers and wall-mounted or remote thermostats (depending on model) as depicted in the photo above. Additional Accessories are required to complete the installation.

Each air handler requires a separate refrigerant line set, control wire and condensation control. The condenser requires connection to household power, wired through a disconnect switch and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 377-2850.

12,000 BTU Concealed Duct Type Air Handler

Stealth Designer Series Concealed Ducted units are flexible air handlers that can be concealed above ceilings, beneath floors, above closets or in hallways. Supply air can be delivered directly into rooms through a grate, or through a field-fabricated duct board plenum and flex ducting. Concealed duct air handlers all come equipped with a factory installed condensate drain pump to move water to a safe discharge location. A wall-mounted thermostat is included.

Please note:

This air handler must be connected to an outdoor condenser in order to function.

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

• Ideal for piping, duct runs, cable trays and condensers
• Weather resistant PVC
• Linear track holds 3/8" hex head bolts
• Two 7/8" long bolts included
• Weighs up to 397 Ib

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

• Reliable Support: Abundance of ridges for stable ground support.
• Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
• Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
• Simple Appearance: Gray color with size labels.
• Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

• Weather Resistance: Made from tough PVC for long-lasting performance.
• Secure Setup: The track securely holds bolts in place.
• Bolts Included: Each set comes with two bolts.
• Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.
