Stealth Designer Series Single Zone mini split systems provide the flexibility to use any of the available indoor unit types in a single zone application. Standard wall-mounted, flush mounted ceiling cassettes, floor-mounted and totally concealed ducted units are all available. You still get the precise temperature control, near-silent operation and maximum efficiency you expect from Stealth. There’s no more waiting to get exactly the system you want for your project.
18,000 BTU 17 SEER Stealth Comfort Designer Mini Split Single Zone Condenser
OVERVIEW
The Stealth Designer Series Single Zone SC-18Z-UM heat pump condenser has a Gen 3 variable inverter compressor, for even, predictable cooling and heating without temperature swings or noisy on/off cycling. The condenser ships with a pre-charge of eco-friendly R410a refrigerant.
QUICK FACTS
Superior engineering for maximum comfort with minimum noise
9,000 BTU – 36,000 BTU models sizes available
Rugged construction with acrylic resin fin coating for durability
Intelligent defrost means more heat time and lower energy use
I-Feel function allows you to control temp sensing location
Sleep mode and Energy Saving mode give you more ways to save
18,000 BTU, 23 SEER
A system this size is suitable for rooms up to 750 square feet depending on climate in your area. The SEER rating of 23 means you pay less for this amount of heating and cooling compared to systems with lower SEER values. Stealth means elite performance and everyday prices.
14 Year Warranty
The Stealth Emerald Series features a 14 warranty with online registration. The standard warranty on the SC-18Z-UM is a 5-year parts and 7-year limited compressor warranty. With online registration and an installation following state and local installation codes, the compressor warranty increases to 14 years.
Durability and Reliability
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Designer Series model, resulting in powerful performance across a punishing range of conditions. This SC-18Z-UM provides continuous heating down to an outside temperature of -31 degrees Fahrenheit.
Installation and Maintenance
Every Stealth Designer Series condenser includes a pre-charge of eco-friendly R410a refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits- including both refrigerant lines, control wire and drain hose extensions, are available under Accessories on this page. Stealth Designer Series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the unit.
Please note:
This system includes only the outdoor condenser, indoor air handler and wall mounted, or remote thermostat (depending on model) as depicted in the photo above. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire and condensation control. The condenser requires connection to household power, wired through a disconnect switch and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 377-2850
14 Year Warranty
The Stealth Designer Series features a 14 warranty. The standard warranty is a 5-year parts and 7-year limited compressor warranty. With online registration and installation following state and local installation codes, the compressor warranty increases to 14 years.
Quiet Operations
The Stealth Designer Series offers whisper-quiet operations even at the highest workloads while providing precision temperature control. It is a system that creates seamless comfort with maximum efficiency at a competitive price.
Stealth Designer Series Specifications
Effective cooling as low as 0°F to 118°F outdoor temperatures
Effective heating as low as 0°F to 75°F outdoor temperatures
18,000 BTU – 48,000 BTU model sizes available
Modern Design
With its modern and sleek appearance, the Stealth Designer Series effortlessly blends into any environment, making it the perfect addition to any décor. In addition, it has state-of-the-art features such as soft LED displays, timer function, sleep mode, and energy save mode. Also, included is the I-Follow remote control location temperature sensing.
Durability and Reliability
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Designer Series model, resulting in powerful performance across a punishing range of conditions. This Stealth Designer provides continuous heat even with outside temperatures down to 0 degrees Fahrenheit.
Installation and Maintenance
Every Stealth series condenser comes pre-charged of eco-friendly R410a refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including both refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. The Stealth Designer Series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside unit.
Please note: This system includes only the outdoor condenser, indoor air handlers, and wall-mounted or remote thermostats depending on model. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire, and condensation control. The condenser requires connection to household power, wired through a disconnect switch, and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 397-1392.

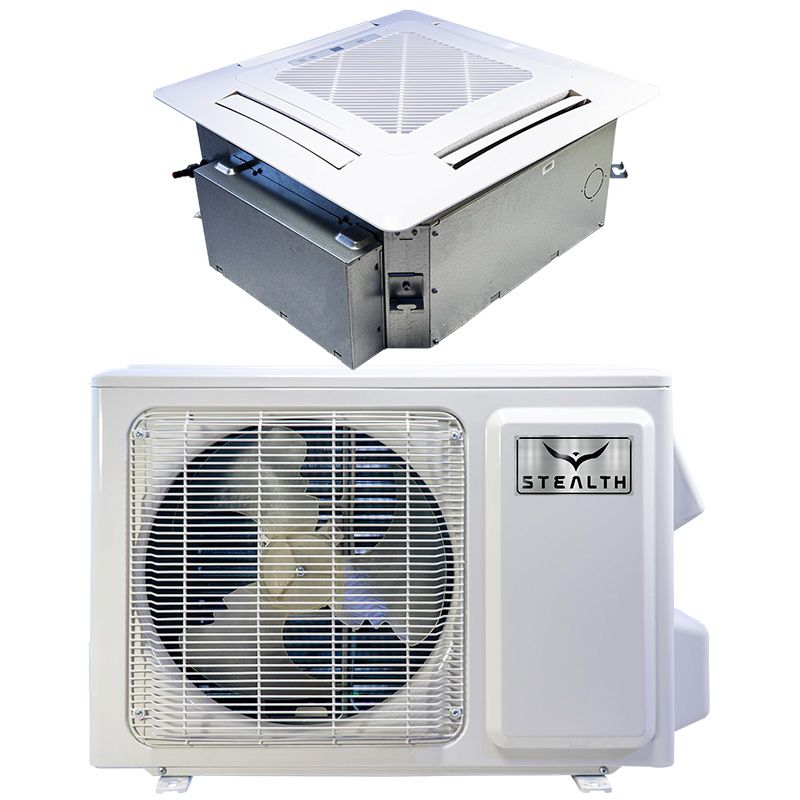

18,000 BTU Stealth Comfort Designer Ceiling Cassette Single Zone Air Handler
Stealth Designer Series Ceiling Cassettes flush mount into your existing ceiling, allowing you to maintain the appearance of your walls. Ceiling Cassettes supply conditioned air in all four directions, resulting in quick, even cooling and heating. Every Ceiling Cassette has a factory installed condensate drain pump to move water to a safe discharge location. A wall mount thermostat and remote control are included.
IMPORTANT:This ceiling cassette requires separate high voltage power, wired directly to the breaker panel in your home.
Please note: Product does not include grille cover – please order from Accessories.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
18,000 BTU Stealth Comfort Designer Ceiling Cassette Single Zone Air Handler
SKU
SC-18CC-UM
Weight
44.000000
Manufacturer
Stealth
HSPF
9
Cooling BTU
17,100
Heating BTU
18,400
Maximum CFM
445 CFM
Decibel Level (dBA)
47 dB(A)
Electric Heat
Heat Pump
Refrigerant
R410A
SEER
16-17
EER
10.1
Compressor Type
Rotary
Liquid Line
1/4"
Suction Line
1/2"
Electrical
208/230V 1 Phase 60 Hz
Max Breaker Size
25
Min. Breaker Size
15.9
BTU/Tonnage
18,000 BTU/1.5 Ton
Mini Split Type
Ceiling Cassette
Min/Max Outdoor Temp for Heating
0F - 75F
Min/Max Outdoor Temp for Cooling
0F - 118F
Zone Compatibility
Single Zone
Height
08.0"
Width
24.4"
Depth
35.1"
Warranty
14 year compressor, 5 year parts with online registration
