Stealth Designer Series Single Zone mini split systems provide the flexibility to use any of the available indoor unit types in a single zone application. Standard wall-mounted, flush mounted ceiling cassettes, floor-mounted and totally concealed ducted units are all available. You still get the precise temperature control, near-silent operation and maximum efficiency you expect from Stealth. There’s no more waiting to get exactly the system you want for your project.

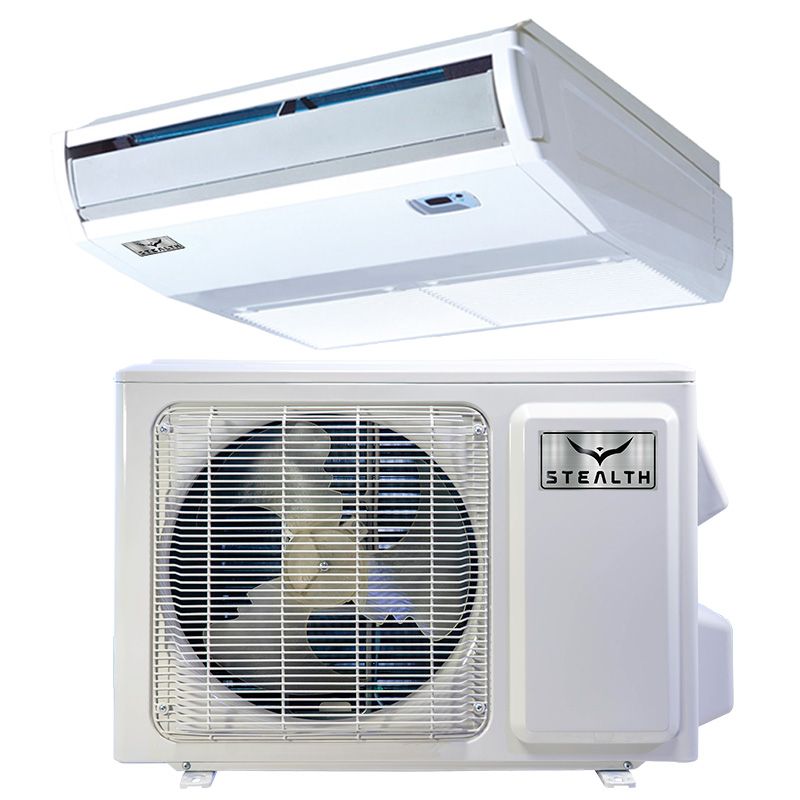

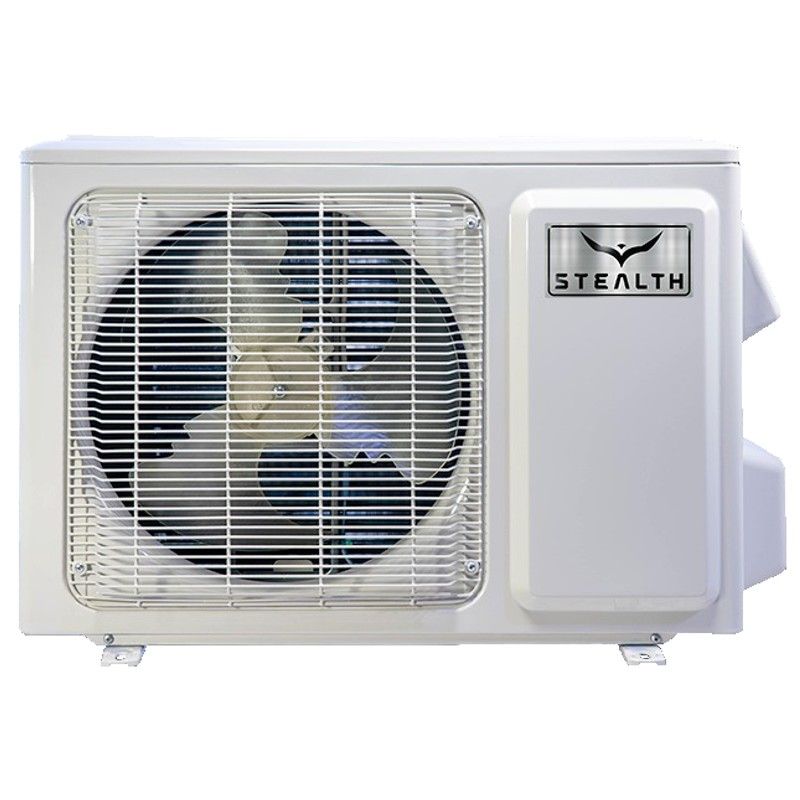

18,000 BTU 17 SEER Stealth Comfort Designer Mini Split Single Zone Condenser
OVERVIEW
The Stealth Designer Series Single Zone SC-18Z-UM heat pump condenser has a Gen 3 variable inverter compressor, for even, predictable cooling and heating without temperature swings or noisy on/off cycling. The condenser ships with a pre-charge of eco-friendly R410a refrigerant.
QUICK FACTS
Superior engineering for maximum comfort with minimum noise
9,000 BTU – 36,000 BTU models sizes available
Rugged construction with acrylic resin fin coating for durability
Intelligent defrost means more heat time and lower energy use
I-Feel function allows you to control temp sensing location
Sleep mode and Energy Saving mode give you more ways to save
18,000 BTU, 23 SEER
A system this size is suitable for rooms up to 750 square feet depending on climate in your area. The SEER rating of 23 means you pay less for this amount of heating and cooling compared to systems with lower SEER values. Stealth means elite performance and everyday prices.
14 Year Warranty
The Stealth Emerald Series features a 14 warranty with online registration. The standard warranty on the SC-18Z-UM is a 5-year parts and 7-year limited compressor warranty. With online registration and an installation following state and local installation codes, the compressor warranty increases to 14 years.
Durability and Reliability
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Designer Series model, resulting in powerful performance across a punishing range of conditions. This SC-18Z-UM provides continuous heating down to an outside temperature of -31 degrees Fahrenheit.
Installation and Maintenance
Every Stealth Designer Series condenser includes a pre-charge of eco-friendly R410a refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits- including both refrigerant lines, control wire and drain hose extensions, are available under Accessories on this page. Stealth Designer Series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the unit.
Please note:  
This system includes only the outdoor condenser, indoor air handler and wall mounted, or remote thermostat (depending on model) as depicted in the photo above. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire and condensation control. The condenser requires connection to household power, wired through a disconnect switch and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 377-2850
 14 Year Warranty
The Stealth Designer Series features a 14 warranty. The standard warranty is a 5-year parts and 7-year limited compressor warranty. With online registration and installation following state and local installation codes, the compressor warranty increases to 14 years.
Quiet Operations
The Stealth Designer Series offers whisper-quiet operations even at the highest workloads while providing precision temperature control. It is a system that creates seamless comfort with maximum efficiency at a competitive price.
Stealth Designer Series Specifications
Effective cooling as low as 0°F to 118°F outdoor temperatures
Effective heating as low as 0°F to 75°F outdoor temperatures
Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Designer Series model, resulting in powerful performance across a punishing range of conditions. This Stealth Designer provides continuous heat even with outside temperatures down to 0 degrees Fahrenheit.
Installation and Maintenance
Every Stealth series condenser comes pre-charged of eco-friendly R410a refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including both refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. The Stealth Designer Series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside unit.
Please note: This system includes only the outdoor condenser, indoor air handlers, and wall-mounted or remote thermostats depending on model. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire, and condensation control. The condenser requires connection to household power, wired through a disconnect switch, and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 397-1392.

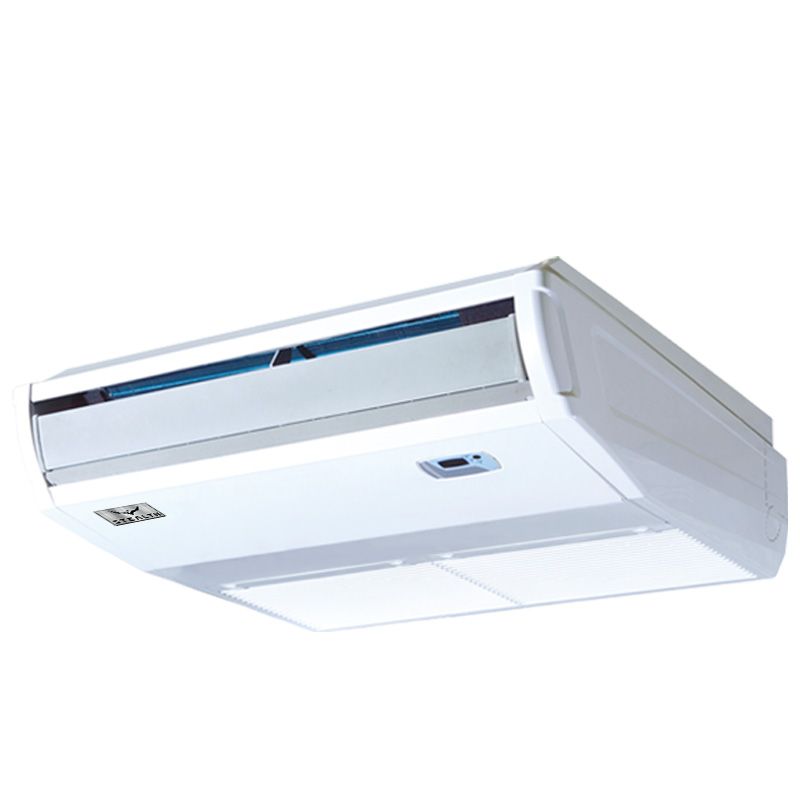

18,000 BTU Stealth Comfort Designer Floor or Ceiling Mounted Single Zone Air Handler
Stealth Designer Series Floor or Ceiling Mount Air Handlers can be surface mounted vertically or horizontally* for ultimate flexibility in placement.  The wider, flatter form factor makes it a good solution when you only have vertical wall space that is close to the floor, such as in an attic room.  Surface mount on the ceiling is also possible but may require a separate condensate pump to remove water. 
Please note: This air handler must be connected to an outdoor condenser in order to function. 
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends,
length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends,
length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends,
length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends,
length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends,
length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line
and the suction line.
Features:
One pair, heavy duty refrigerant lines
Flared line ends
Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation. ✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety. ✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply. ✔ Secure Wall Penetration:Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines. ✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
1/2" x 6' Electrical Whip – SKU: 84136
60A Non-Fused Disconnect – SKU: 83335
Surge Protector – SKU: ICM517
CPS Charging Adapter – SKU: 87-AD87
Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
E Lite Equipment Pad 18" x 38" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
High recycled plastic content
Subtle texture resists unit slide
Unaffected by UV or weather
Uniform ribbing transfers load evenly
Drillable for securing unit
Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 21" long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:
21" Arm Length
Weight capacity of 220 lbs per arm
Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
18,000 BTU Stealth Comfort Designer Floor or Ceiling Mounted Single Zone Air Handler
SKU
SC-18FM-UM
Weight
85.800000
Manufacturer
Stealth
HSPF
9.5
Cooling BTU
17,100
Heating BTU
19,100
Maximum CFM
585 CFM
Decibel Level (dBA)
44 dB(A)
Electric Heat
Heat Pump
Refrigerant
R410A
SEER
16-17
EER
11
Compressor Type
Rotary
Liquid Line
1/4"
Suction Line
1/2"
Electrical
208/230V 1 Phase 60 Hz
Max Breaker Size
25
Min. Breaker Size
15.9
BTU/Tonnage
18,000 BTU/1.5 Ton
Mini Split Type
Floor Mounted
Min/Max Outdoor Temp for Heating
0F - 75F
Min/Max Outdoor Temp for Cooling
0F - 118F
Zone Compatibility
Single Zone
Height
27.5"
Width
48.0"
Depth
08.9"
Warranty
14 year compressor, 5 year parts with online registration
