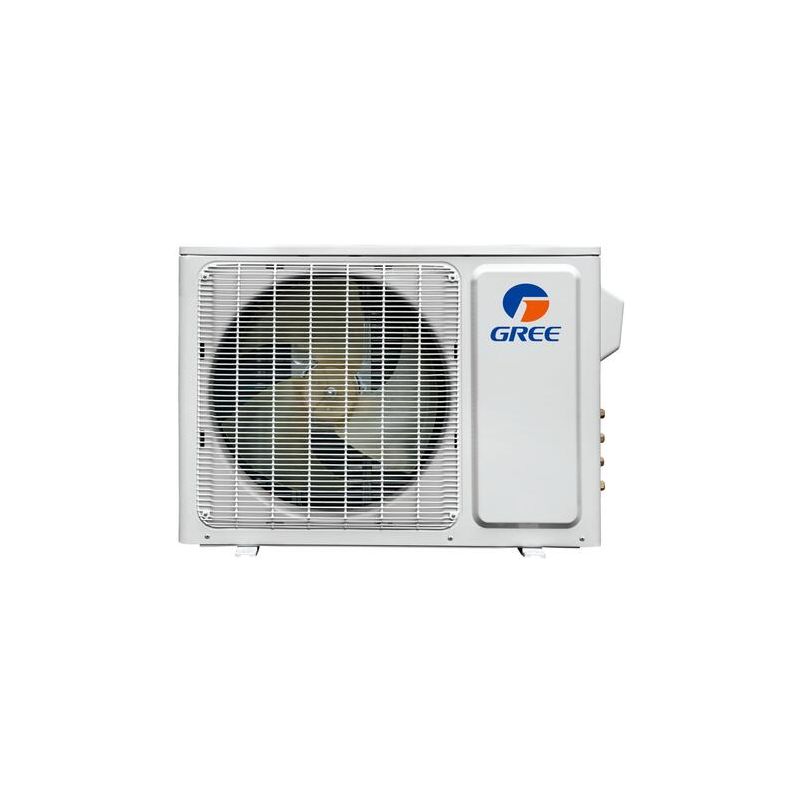

18,000 BTU 21 SEER2 Gree Mini-Split Multi Gen2 2 Zone Heat Pump Condenser

18,000 BTU 21 SEER2 Gree Mini-Split Multi Gen2 2 Zone Heat Pump Condenser
By

Gree

Out of stock
Model

MULTI18HP230V1EO

ID

1438

The Gree MULTI18HP230V1EO is a 18,000 BTU multi-zone heat pump that offers superior comfort and efficiency. Advanced G-10 inverter technology ensures stable operation and saves up to 20% power per year, compared to other models. The condenser also runs at lower noise levels than other mini split condensers. The unit uses eco-friendly R-410A refrigerant, an optimized fan with anti-corrosion coating, and a brushless fan motor.

The MULTI18HP230V1EO is AHRI Certified and comes with a 5-year limited warranty. It can be connected to up to 2 indoor units, and is compatible with a wide range of indoor units from Gree.

Features:

  • Minimum 1 connected zone
  • Maximum 2 connected zones
  • No refrigerant branch box required
  • Minimum 9,000 BTU connected capacity
  • Maximum 24,000 BTU connected capacity

Compatible Indoor Units:

Wall Mounted

  • LIVO GEN3: LIVV09HP230V1AH, LIVV12HP230V1AH
  • LIVO GEN4: 4LIV05HP230V1AH, 4LIV07HP230V1AH, 4LIV09HP230V1AH, 4LIV12HP230V1AH
  • VIREO GEN3: 3VIR09HP230V1AH & BH, 3VIR12HP230V1AH & BH
  • SAPPHIRE: SAP09HP230V1AH, SAP12HP230V1AH

HIGH STATIC CONCEALED SLIM DUCT

  • DUCT09HP230V1BD, DUCT12HP230V1BD

CEILING CASSETTE

  • CAS12HP230V1BC

FLOOR / CEILING

  • FLR09HP230V1BF, FLR12HP230V1BF

MINI-CONSOLE

  • CONS09HP230V1AF, CONS12HP230V1AF
More Information
18,000 BTU 21 SEER2 Gree Mini-Split Multi Gen2 2 Zone Heat Pump Condenser
SKUMULTI18HP230V1EO
Refrigerant ChargePre-Charged For: 33'
Weight (in lbs)124.300000
AHRI Certificate Number9958975 & 9956591
Brand/ManufacturerGree
Product FeaturesLow Ambient Heating
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 33'
Additional InformationMaximum System Piping: 65'
HSPF210
Cooling BTU17,000
Heating BTU18,000
Decibel Level (dBA)Outdoor Unit: 56 dB(A)
Energy StarYes
RefrigerantR410A
SEER2 (Efficiency)21
Compressor TypeRotary
Liquid Lineliquid_line=1/4" (2)
Suction Linesuction_line=3/8" (2)
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size25 amps
Min. Breaker Size16 amps
Tonnage1.5 Ton
BTU/Tonnage18,000 BTU/1.5 Ton
Min/Max Outdoor Temp for Heating-5F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Height27.6"
Width35.1"
Depth14.5"
Warranty5 year Limited Parts Warranty
