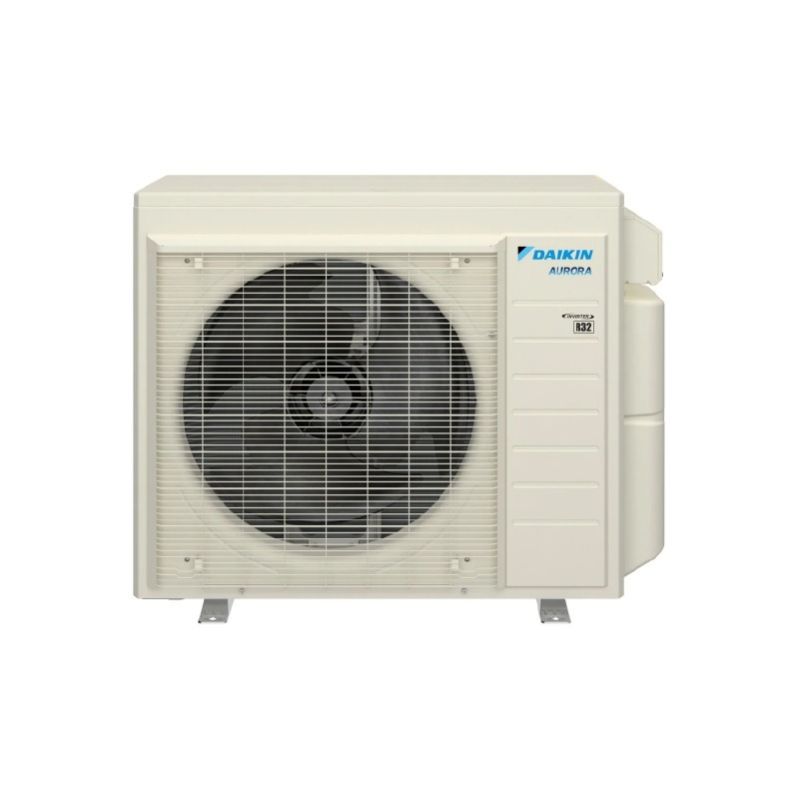

Daikin 36,000 BTU MXT Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V

Daikin 36,000 BTU MXT Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V

Name: Daikin 36,000 BTU MXT Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V
Brand: Daikin
SKU: 4MXT36AVJU9
Price: 4090.8 USD
Availability: InStock

Daikin 36,000 BTU MXT Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V-4MXT36AVJU9

Be the first to review this product

Ships in 5-7 Business Days

Free Shipping

Daikin

In stock

Model

4MXT36AVJU9

241658

$4,090.80

Product Features

Designed for high-efficiency mini split systems
Heating & Cooling Capabilities
Perfect for up to 1000 sq ft Room/Zone (when paired correctly)
Quiet Operation at 57 dBA
12 Year Limited Warranty with Online Registration

Description

Daikin 4MXT36AVJU9 36,000 BTU 4-Zone Mini Split Condenser – R32 | 230V

This MXT multi-zone condenser is designed to provide efficient heating and cooling for up to four independently controlled indoor units. Featuring inverter-driven technology and R32 refrigerant, it delivers reliable performance, quiet operation, and energy-efficient comfort for residential and light commercial applications.

Key Features

36,000 BTU (3 Ton) capacity for multi-zone applications
Supports 2 to 4 indoor units (must be connected to at least two zones)
Compatible with wall-mount, ceiling cassette, and concealed duct indoor units
Inverter-driven compressor for improved efficiency and precise temperature control
R32 refrigerant for reduced environmental impact and enhanced performance
Individual zone control for customized comfort in each space
Quiet operation designed to minimize outdoor noise
Enhanced cold-climate heating operation down to -13°F
Cooling operation range: 14°F to 115°F (outdoor ambient)
Flexible installation with support for various piping configurations
Up to 20 SEER2 efficiency when matched with eligible indoor units

Warranty

12-year limited parts warranty (registration required); 5-year limited parts warranty if not registered

Product Specs

More Information
Daikin 36,000 BTU MXT Multi-Zone Mini Split Heat Pump Condenser - R32 \| 230V
Feature	Spec
SKU	4MXT36AVJU9
Refrigerant Charge	4.90 lbs (Pre-charged for 98 ft line set)
Weight (in lbs)	139
Brand/Manufacturer	Daikin
Cooling BTU	34,400 BTU
Heating BTU	33,200 BTU
Decibel Level (dBA)	57 dBA
Energy Star	Yes
Refrigerant	R32
HSPF2	9.5
SEER2 (Efficiency)	20
EER2	12
Compressor Type	Swing
Liquid Valve Size	1/4"
Suction Valve Size	3/8"
Electrical	208/230V \| 1 Phase \| 60 Hz
Max Breaker Size	37.5 Amps
Min. Breaker Size	40 Amps
BTU/Tonnage	36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating	-13° - 75° F
Min/Max Outdoor Temp for Cooling	14° - 115° F
Zone Compatibility	Multi Zone
Height	29.5
Width	34.25
Depth	12.63
Warranty	12-Year parts and compressor limited warranty with online registration. Restrictions apply
Resources	Submittal Brochure Installation Manual You will need Adobe® Acrobat® Reader to view PDF documents.
