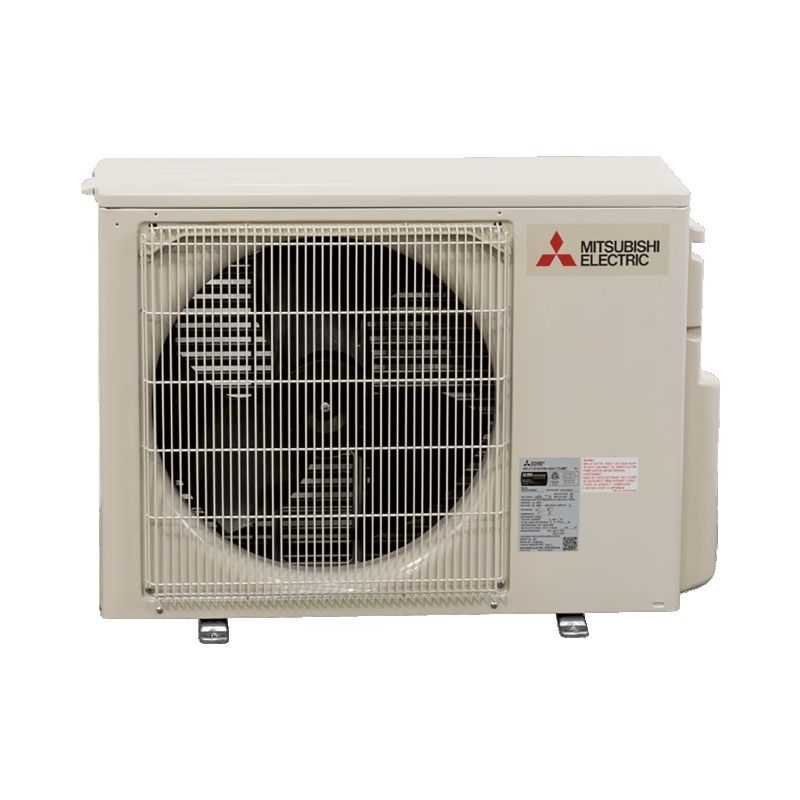

Mitsubishi 18,000 BTU SEZ-AD-Series Single Zone Mini Split Heat Pump Condenser R454B | 230V

SAVE $466.43
Customer reviews
Rating:
4.6 out of 5
ONLY 2 LEFT!
Free Shipping
By

Mitsubishi

In stock
Model

PUZ-AK18NL

ID

198551

Was $3,886.88 Your Low Price Special Price $3,420.45
Ā
Product Features
  • Intelligent Comfort at an Affordable Price
  • Heating & Cooling
  • Ductless Solution
  • All Electric Condenser
  • 10 Year Warranty with Online Registration
  • Single Zone/Room Compatible

Create efficient heating and cooling with a compact outdoor condenser designed to simplify commercial climate upgrades and pair seamlessly with a compatible wall-mounted indoor air handler.

Upgrade your comfort with the Mitsubishi PUZ-AK18NL Outdoor Condenser—a hyper-heating inverter-driven outdoor unit designed to deliver efficient heating and cooling for wall-mounted systems. Built for commercial applications that demand dependable performance, quiet operation, and easier installation, this condenser pairs effortlessly with a compatible Mitsubishi indoor unit for reliable, year-round comfort.

Key Features

  • Hyper-Heating Performance — Helps maintain strong heating output in cold weather for added comfort through the winter.
  • Inverter-Driven Performance — Helps maintain consistent temperatures while optimizing energy use.
  • Quiet Outdoor Operation — Engineered for low-noise performance to help preserve a comfortable environment.
  • Built for Durability — Features a corrosion-resistant outdoor coil coating for added protection in challenging environments.

Warranty

Mitsubishi offers a limited warranty of 10-Year Compressor / 10-Year Parts Warranty when installed according to manufacturer guidelines and registered properly.

More Information
Mitsubishi 18,000 BTU SEZ-AD-Series Single Zone Mini Split Heat Pump Condenser R454B | 230V
FeatureSpec
SKUPUZ-AK18NL
Weight (in lbs)28
Brand/ManufacturerMitsubishi
ReplacesPUZ-A18NKA7
UPC605468299531
Cooling BTU18000
Heating BTU18,000 BTU
Maximum CFM1,590
Decibel Level (dBA)46
Electric HeatHeat Pump
RefrigerantR454B
SEER2 (Efficiency)19.5
EER211
Condenser StagesVariable Speed
Compressor TypeTwin Rotary
Liquid Valve Size 1/4
Suction Valve Size 1/2
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size27
Min. Breaker Size16
BTU/Tonnage18,000 BTU/1.5 Ton
Min/Max Outdoor Temp for Heatingāˆ’4 °F - 70 °F
Min/Max Outdoor Temp for Cooling23 °F - 115 °F
Zone CompatibilitySingle Zone
Ambient Temperature Range23 °F - 115 °F
Height24.80"
Width34.29"
Depth11.81"
Warranty10 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Top reviews
  1. Very good
    Quality
    100%
    Service
    100%
    Price
    80%
    Ordering was easy and straight forward I really like the showroom format makes it a quick pick also your selection especially of mitsubishi products is outstanding payment options are great im ordering as a business and this option has really increased my sales options! Products were well packaged and shipped too the job site overall very good experience this has given me a totally new way of running g my business! Thanks again

    Review by

    Posted on

Customer Questions
No Questions
Did you find what you were looking for?
Why Choose Mitsubishi Mini Splits?
Why Choose Mitsubishi Mini Splits?

Mitsubishi mini split air conditioners and heat pumps provide exceptional comfort, energy efficiency, and ultra-quiet performance in any climate. Engineered for reliability and precision, these systems offer year-round heating and cooling while reducing energy costs and enhancing indoor air quality.
