Mitsubishi 18,000 BTU WX-Series Single Zone Mini Split Heat Pump Condenser – R454B | 230V

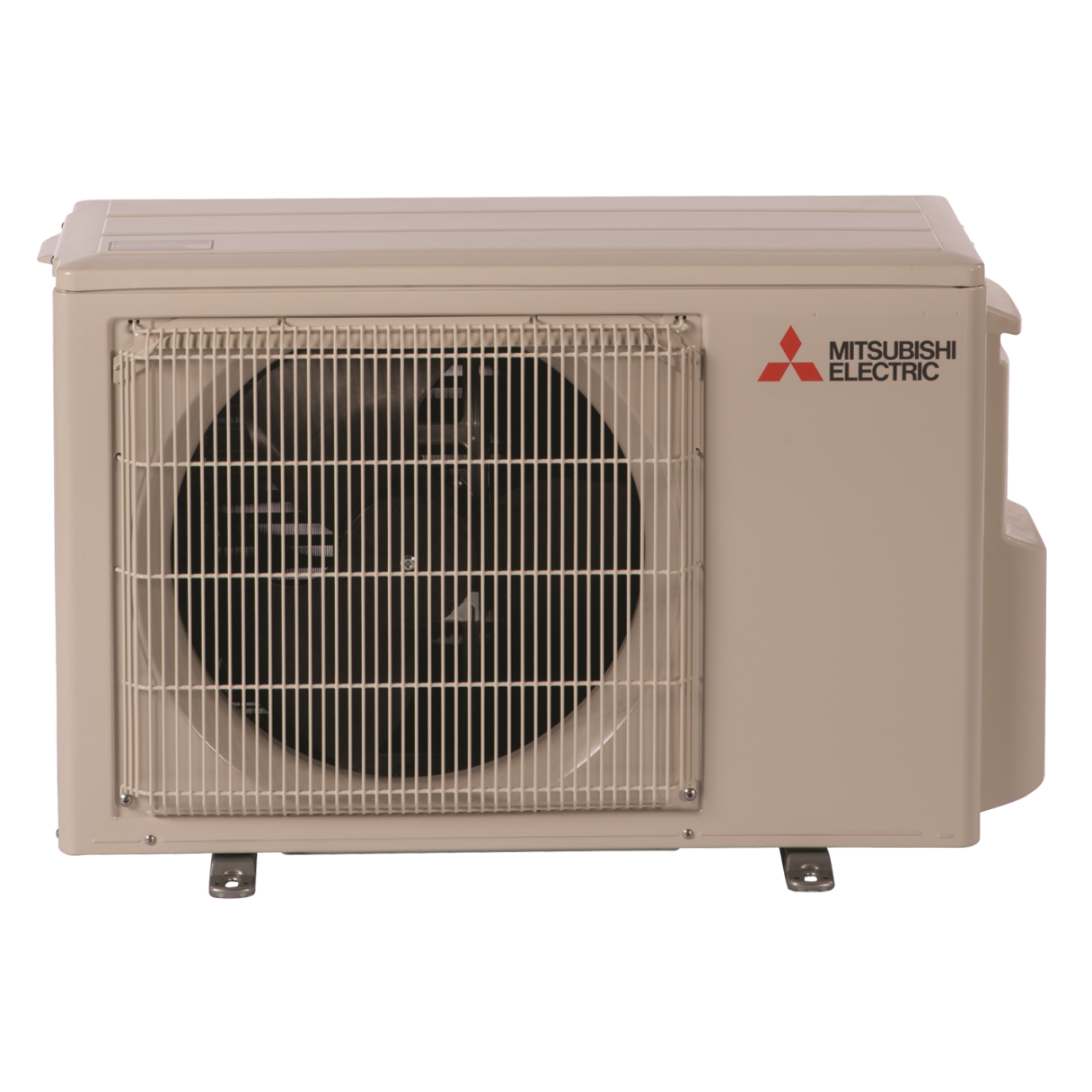

MUZ-WX18NL - 17,200 BTU/H Heat Pump Outdoor Unit

The MUZ-WX18NL is the outdoor unit of Mitsubishi's advanced line of wall-mounted air conditioning systems, providing efficient and reliable climate control. With a 17,200 BTU/H cooling and heating capacity, this unit is designed for both residential and commercial spaces. The outdoor unit is equipped with energy-efficient technology and features for enhanced durability and quiet operation.

Outdoor Unit Features (MUZ-WX18NL):

• Blue Fin Coating: A protective coating on the heat exchanger fins helps resist corrosion, making the unit ideal for coastal or industrial environments.
• INVERTER-Driven Compressor: The inverter compressor adjusts the system's capacity based on demand, ensuring precise energy use and optimal performance.
• Powered by Outdoor Unit: The outdoor unit powers the entire system and automatically restarts after a power outage, ensuring convenience and reliability.

Specifications:

• Cooling Capacity: 17,200 BTU/h (maximum capacity: 18,000 BTU/h, minimum: 5,800 BTU/h).
• Heating Capacity: 18,000 BTU/h (maximum capacity: 20,800 BTU/h, minimum: 5,400 BTU/h).
• Energy Efficiency: SEER2 of 18, HSPF2 of 8.5, providing high efficiency for both cooling and heating.
• Power Consumption: Rated power input of 1,810W for cooling and 1,680W for heating.
• Noise Level: Quiet operation with sound pressure levels as low as 32 dB(A) for cooling and 31 dB(A) for heating.
• Voltage: Operates on 208/230V, 1-phase, 60Hz electrical systems.
• Dimensions: 31-1/2 x 11-1/4 x 21-5/8 inches.

The MUZ-WX18NL outdoor unit provides the reliable and energy-efficient performance needed for year-round comfort, with features designed to enhance durability and reduce maintenance needs.
