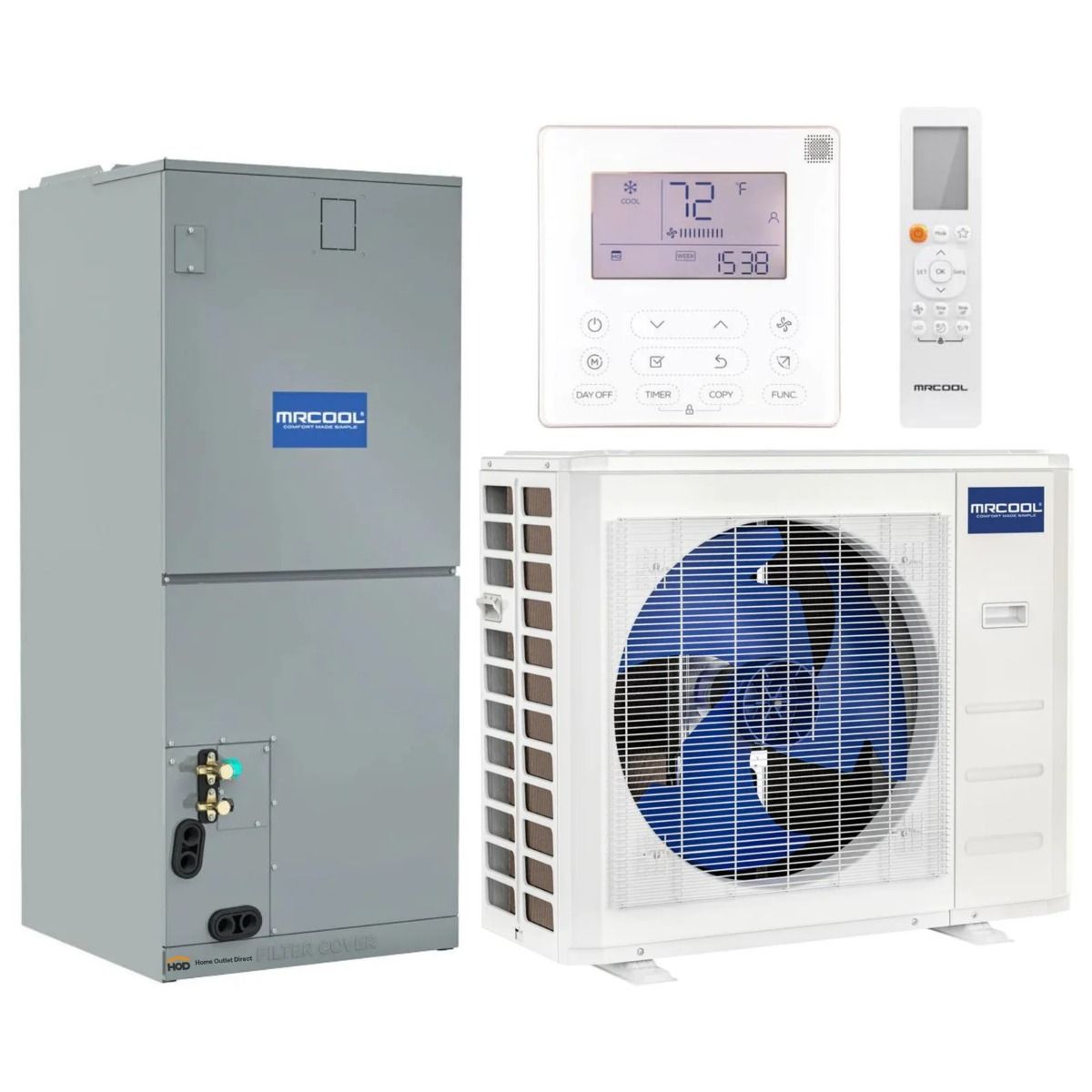

MRCOOL 2 Ton 17.4 SEER Central Ducted Hyper Heat Split System - CENTRAL-24-HP-MUAH230A00 / CENTRAL-24-HP-C-230A00

main product photo
By

MRCOOL

In stock

Model

CENTRAL-24-HP-230A00

ID

142044

Rating:
100% of 100
(1)  Write a Review

Authorized MRCOOL Dealer

AHRI Certified

AHRI Number:211497151

Your Low Price $2,988.00


Save up to $5,500 off Local HVAC Prices


Free Shipping

Required Fields *

Customize MRCOOL 2 Ton 17.4 SEER Central Ducted Hyper Heat Split System - CENTRAL-24-HP-MUAH230A00 / CENTRAL-24-HP-C-230A00
MRCOOL 24K BTU 17.4 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-24-HP-C-230A00
MRCOOL 24K BTU 17.4 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-24-HP-C-230A00
MRCOOL 24K BTU 17.4 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-24-HP-C-230A00   + $1,979.00
MRCOOL 24K BTU 17.4 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-24-HP-MUAH230A00
MRCOOL 24K BTU 17.4 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-24-HP-MUAH230A00
MRCOOL 24K BTU 17.4 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-24-HP-MUAH230A00   + $1,009.00
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 15 feet
Wall Mount Bracket for Condensers 30"

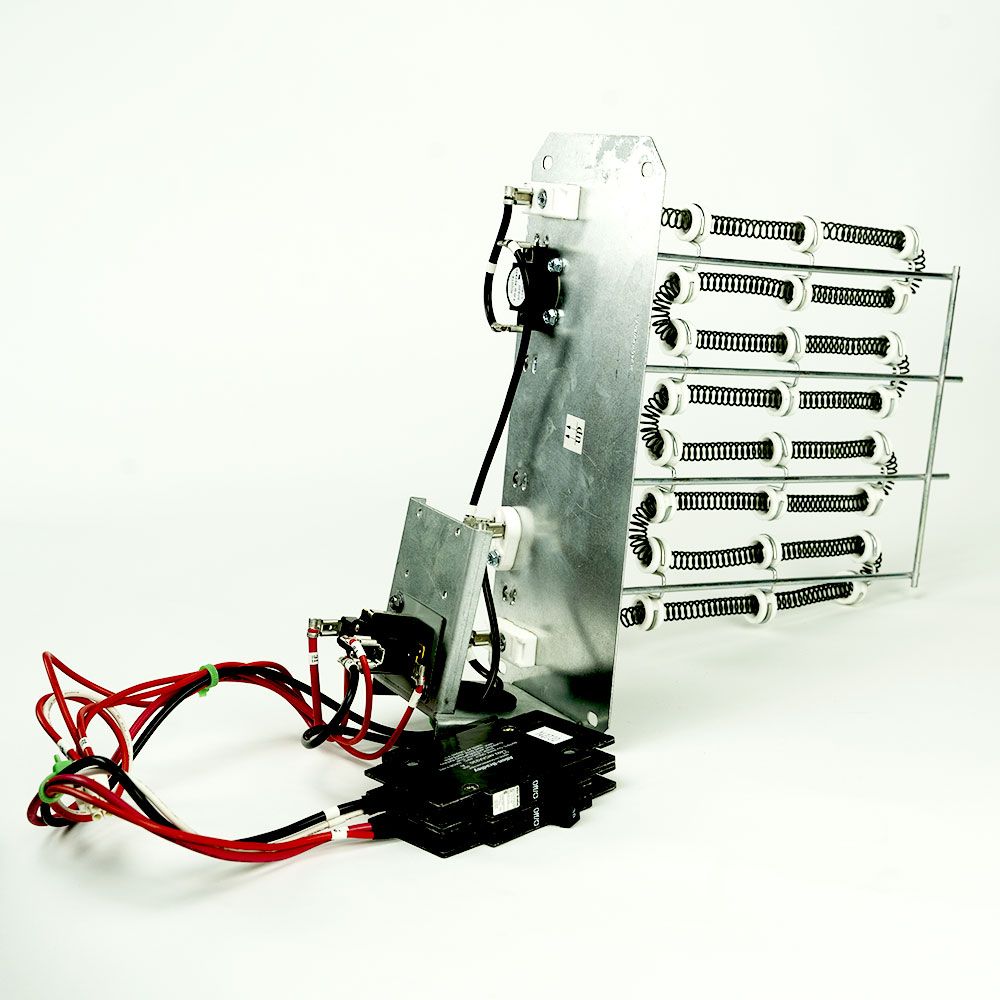

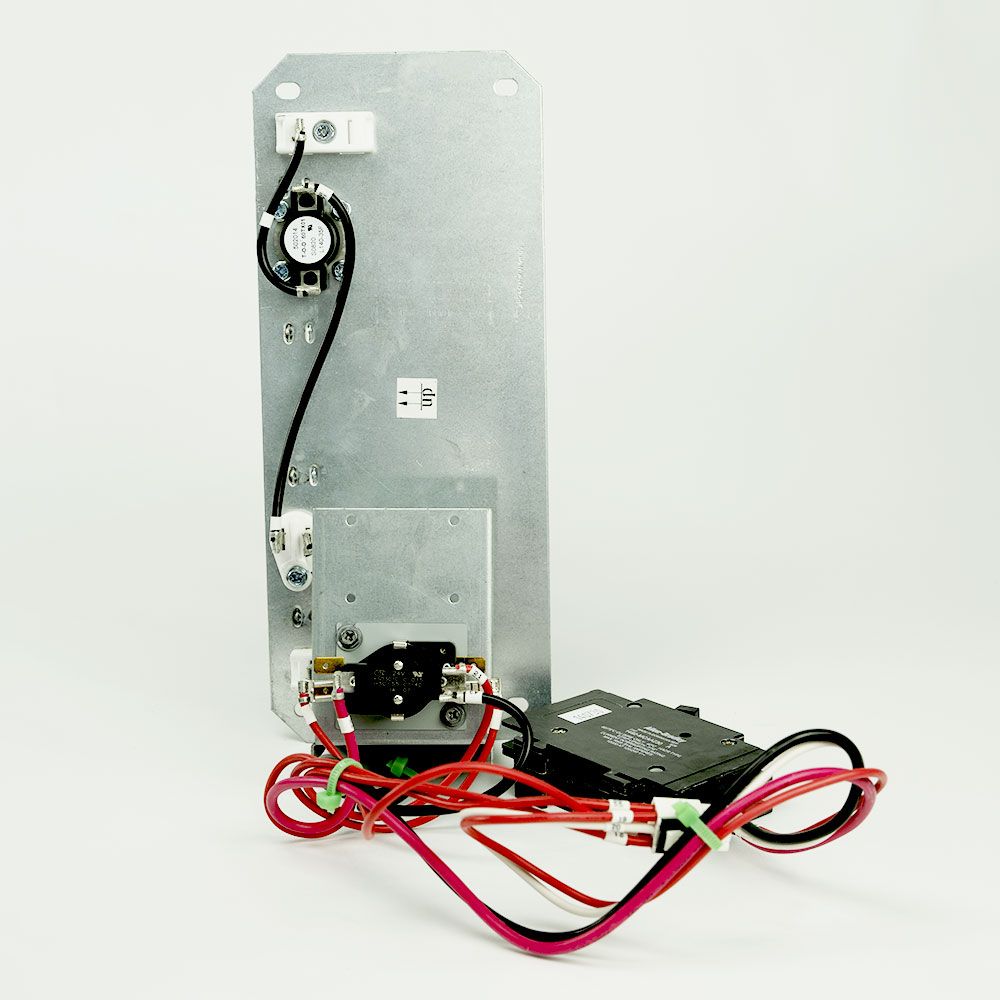

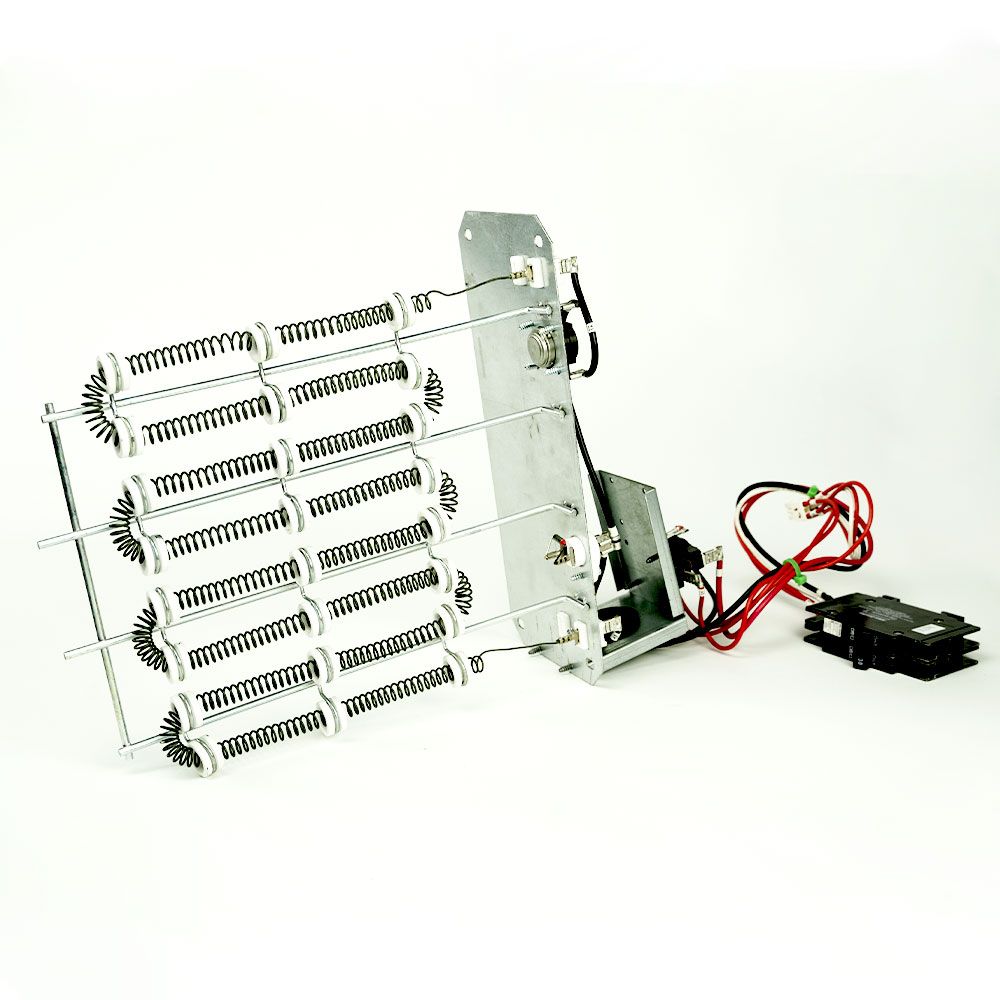

5 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
MRCOOL 2 Ton 17.4 SEER Central Ducted Hyper Heat Split System - CENTRAL-24-HP-MUAH230A00 / CENTRAL-24-HP-C-230A00

$2,988.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

Overview

The 2 Ton 17.4 SEER MRCOOL Central Ducted Hyper Heat Split System (CENTRAL-24-HP-MUAH230A00 / CENTRAL-24-HP-C-230A00) is a reliable and efficient solution for cooling and heating your space. With a cooling capacity of 2 tons and a SEER rating of 17.4, it provides effective cooling performance while ensuring energy efficiency. The hyper heat technology ensures consistent heating even in extremely cold temperatures. This split system includes the air handler (CENTRAL-24-HP-MUAH230A00) and the heat pump condenser (CENTRAL-24-HP-C-230A00), working together to distribute conditioned air throughout your ducted system. Upgrade to the CENTRAL-24-HP-MUAH230A00 / CENTRAL-24-HP-C-230A00 for enhanced comfort and energy savings in your home or commercial space.

Product Features

  • Up to 17.4 SEER2 and 10 HSPF2
  • Variable Speed
  • Enhanced Heating Capacity
  • R-410A Refrigerant
  • Painted Galvanized Steel
  • Quiet Operation
  • Compact, Side Discharge Design
  • Multi-Position Installation
  • Slide-Out Blower
  • Wired Thermostat Included
  • Follow Me Function
  • Easy-Access Removable Filter
  • Modular Design
  • Self-Diagnostics
  • Easy Maintenance

Product Specifications

More Information
MRCOOL 2 Ton 17.4 SEER Central Ducted Hyper Heat Split System - CENTRAL-24-HP-MUAH230A00 / CENTRAL-24-HP-C-230A00
SKUCENTRAL-24-HP-230A00
Refrigerant Charge25'
AHRI Certificate Number211497151
Brand/ManufacturerMRCOOL
SEER2 (Efficiency)17
Condenser StagesVariable Speed
System Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Warranty10-year Warranty on Parts, Labor, and Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
10 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK10
Weight (in lbs)13.000000
Brand/ManufacturerMRCOOL
Electric Heat10 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size50/60
Min. Breaker Size46/53
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
15 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK15
Weight (in lbs)15.000000
Brand/ManufacturerMRCOOL
Electric Heat15 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size25/30
Min. Breaker Size23/27
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
20 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK20
Weight (in lbs)16.000000
Brand/ManufacturerMRCOOL
Electric Heat20 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size50/60
Min. Breaker Size46/53
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
5 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK05
Weight (in lbs)11.000000
Brand/ManufacturerMRCOOL
Electric Heat5 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size25/30
Min. Breaker Size23/27
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
8 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK08
Weight (in lbs)13.000000
Brand/ManufacturerMRCOOL
Electric Heat8 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size40/45
Min. Breaker Size37/42
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
Ductless Mini Split Installation Kit for Condensers
SKUMSK001
Weight (in lbs)15.000000
Brand/ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING

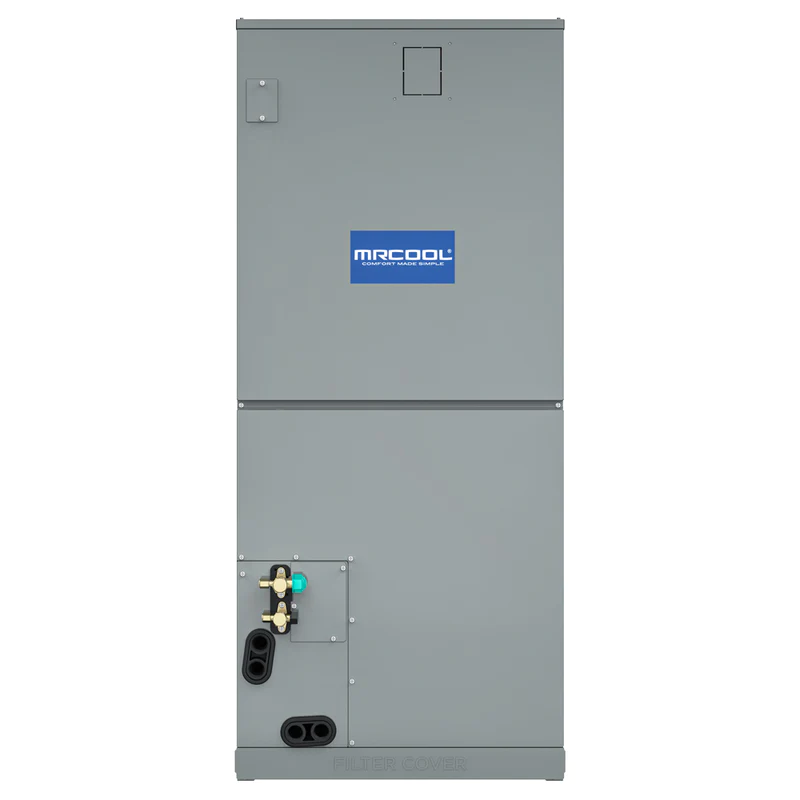

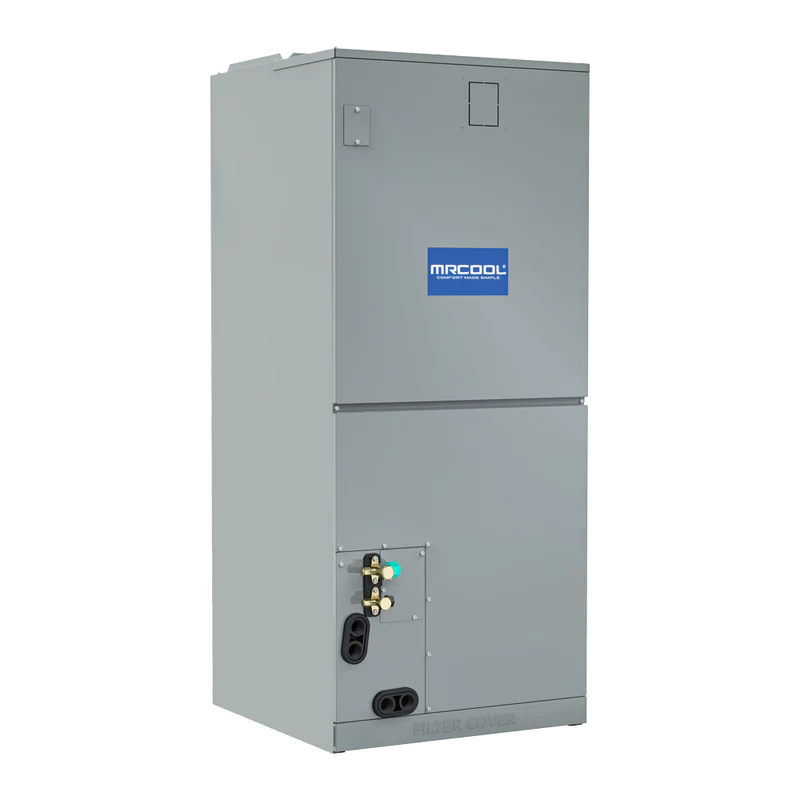

MRCOOL 24K BTU 17.4 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-24-HP-MUAH230A00
SKUCENTRAL-24-HP-MUAH230A00
Weight (in lbs)127.000000
Brand/ManufacturerMRCOOL
Cooling BTU24,000 BTU
Heating BTU24,000 BTU
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size15
Height48.62"
Width26.57"
Depth20.87"
Warranty10-year Warranty on Parts, Labor, and Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING

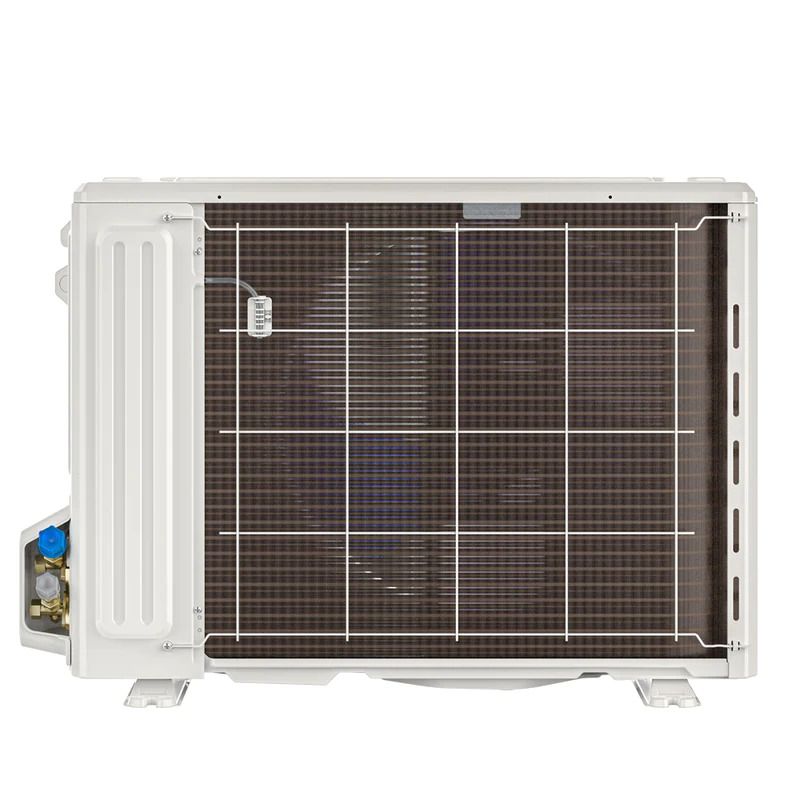

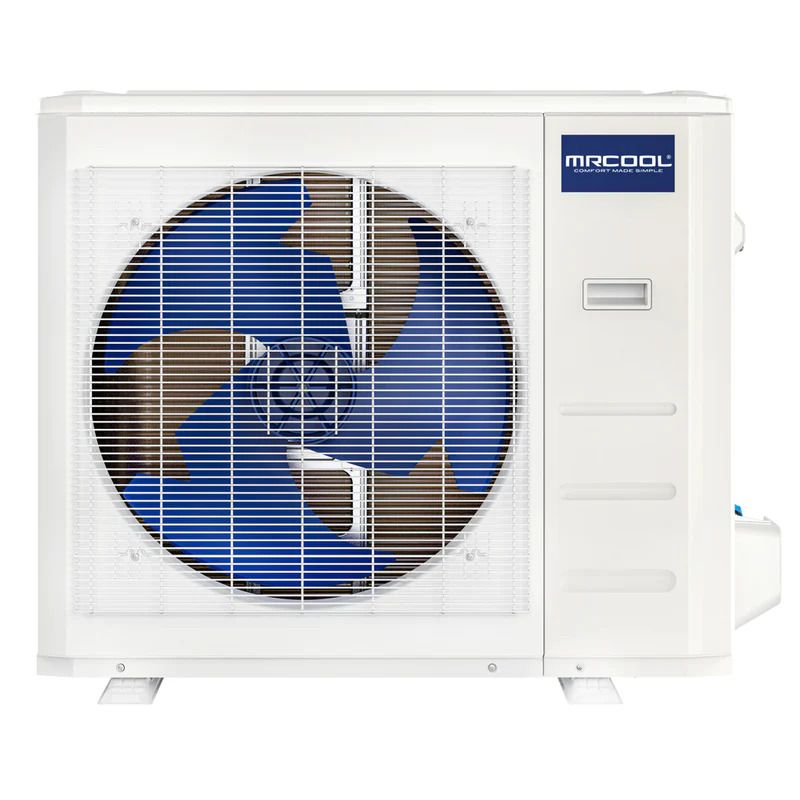

MRCOOL 24K BTU 17.4 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-24-HP-C-230A00
SKUCENTRAL-24-HP-C-230A00
Weight (in lbs)146.000000
Brand/ManufacturerMRCOOL
HSPF210
Cooling BTU24,000 BTU
Heating BTU24,000 BTU
Maximum CFM3000
RefrigerantR410A
SEER2 (Efficiency)17
Liquid Line3/8"
Suction Line3/4"
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size35
Min. Breaker Size20.5
BTU/Tonnage24,000 BTU/2 Ton
Height35.04"
Width42.91"
Depth19.88"
Warranty10-year Warranty on Parts, Labor, and Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING

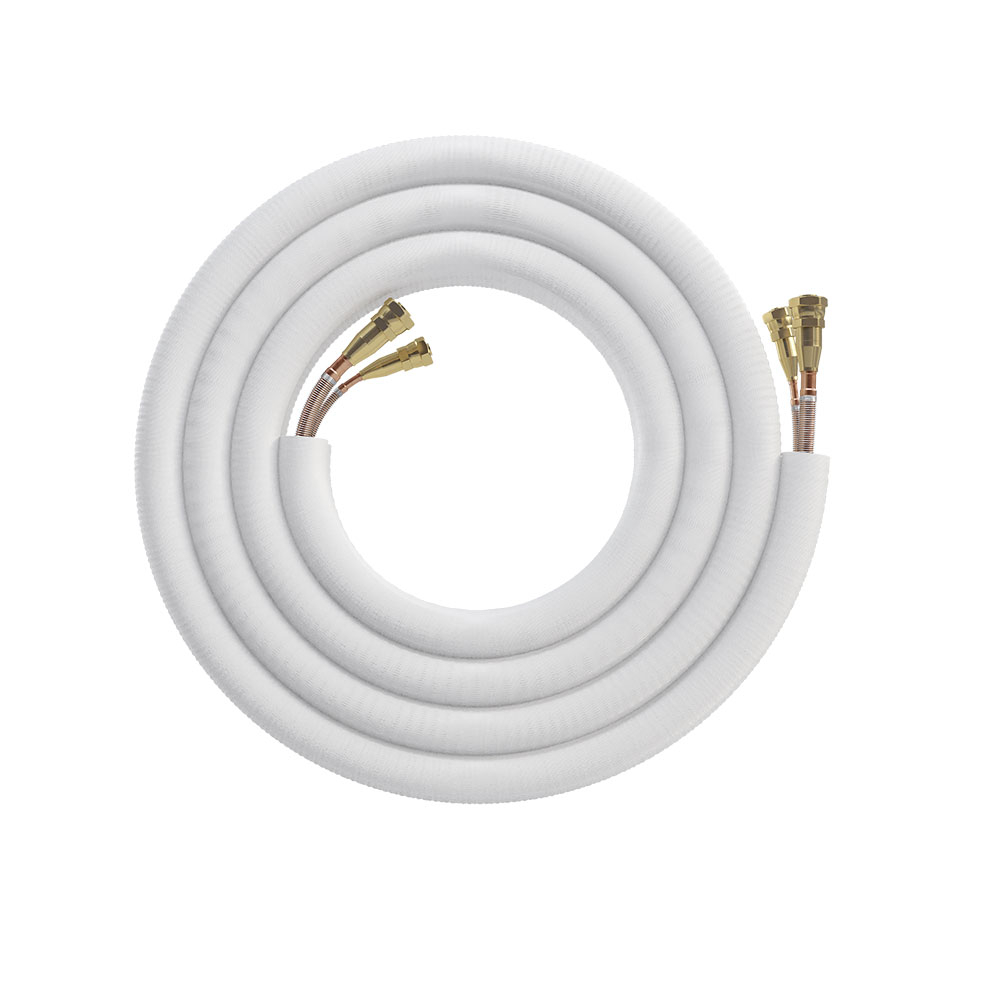

No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 15 feet
SKUNV15-3834
Refrigerant Charge1.94 oz
Weight (in lbs)10.000000
Brand/ManufacturerMRCOOL
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length15'
Safety InformationPROPOSITION 65 WARNING
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 25 feet
SKUNV25-3834
Refrigerant Charge3.17 oz
Weight (in lbs)15.000000
Brand/ManufacturerMRCOOL
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length25'
Safety InformationPROPOSITION 65 WARNING
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 35 feet
SKUNV35-3834
Refrigerant Charge9.77 oz
Weight (in lbs)20.000000
Brand/ManufacturerMRCOOL
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length35'
Safety InformationPROPOSITION 65 WARNING
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 50 feet
SKUNV50-3834
Refrigerant Charge19.44 oz
Weight (in lbs)54.000000
Brand/ManufacturerMRCOOL
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length50'
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
SKUACB-30
Weight (in lbs)9.200000
Brand/ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
SKUHW-600
Weight (in lbs)9.200000
Brand/ManufacturerOnline Supply
Length23"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
