The Bosch Inverter Ducted Split (IDS) Light series air handler is a convenient and efficient air handler to provide comfort to your home. If you want superior quality and enhanced comfort, look no further than this model.

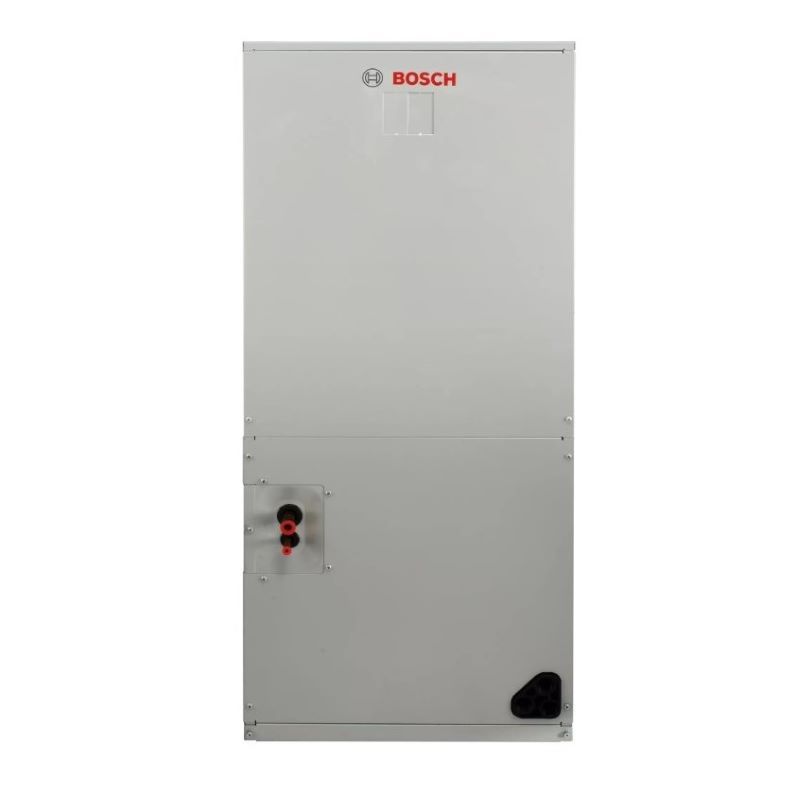

The Bosch BVA 15 Series BVA-24WN1-M15 air handler is rated for an output of 2 tons. In many cases, this air handler will be larger in tonnage than the condenser it is paired with to maintain the unit's overall efficiency. Please note that for this unit to provide cooling, an outdoor condenser is required for it to function. The unit can support electric heating as a straight electric furnace or as a backup for a heat pump, offered at an additional cost to be field installed.
Bosch BVA 15 Series offers a 10 year parts and 2 gateway connectivity components warranty on this unit. All other Bosch parts or components installed in the field have a 1 year parts warranty.
To make a more versatile unit, Bosch BVA 15 Series designed the BVA-24WN1-M15 to easily be installed in an upflow, downflow, or horizontal position. A TXV kit is already installed on the unit so your installer does not have to install one, decreasing installation costs. For durability, this air handler is designed with an extremely strong, one-piece, painted steel outer casing to protect the unit, and the all-aluminum coil has a lower chance of refrigerant leakage compared to standard copper coils.
2 Ton Multi-Positional Bosch Air Handler - BVA 15 Series | |
---|---|
SKU | BVA-24WN1-M15 |
Weight (in lbs) | 154.000000 |
Brand/Manufacturer | Bosch |
Cooling BTU | 24,000 |
Blower Motor | 3-Speed |
Decibel Level (dBA) | 62 |
Horsepower | 1/5 HP |
Configuration | Multi-Positional |
Refrigerant | R410A |
Filter Size | 18" x 20" |
Liquid Line | 3/8" |
Suction Line | 3/4" |
Electrical | 208/230v 1 Phase 60Hz |
Max Breaker Size | 15 Amps |
Min. Breaker Size | 2 Amps |
Tonnage | 2 Ton |
Connection | Sweat |
Height | 46 1/2" |
Width | 19 5/8" |
Depth | 21 5/8" |
Warranty | 10 Years Parts and 2 Year Gateway Connectivity Components Limited Warranty |
