2-Zone Single Stage (1H/1C) Zone Panel Kit

The iO HVAC Controls ZP Series is designed to fit a two zone, single stage heating and cooling system for residential and small commercial applications. This zone panel is made to be very contractor-friendly for simple and quick installation with an aluminum enclosure with a snap on panel cover.

Features

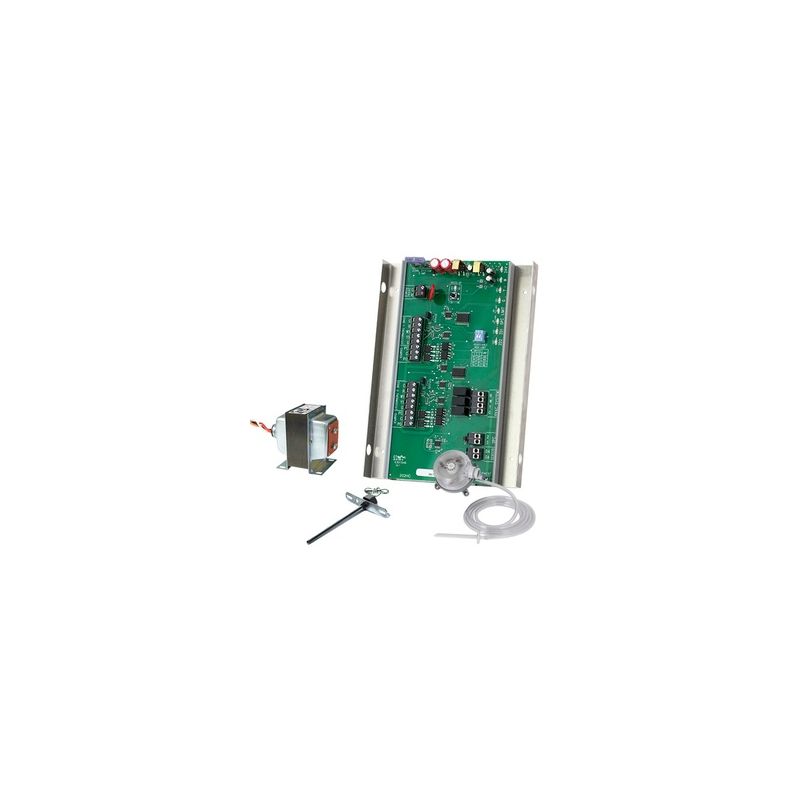

• Items Included: Panel, Static Pressure Sensor, Duct Temperature Sensor, and 40va Transformer
• Compatible with 2 or 3 wire zone dampers
• Short cycle protection
• Independent fan control by zone
• LED status indication
• Adjustable high and low balance point

The ZP2-HC-ESP-KIT has a built in static pressure control, meaning you will no longer need a bypass damper when a 3-wire, 24V damper is used. 18-gauge wire is used for all equipment connections so there are no mix-ups and less to handle. With an operating temperature range of -40° to 150° and a humidity range of 5% to 90%, this zone panel is durable and can handle many different types of environments. The time delay is 3 minutes off between cooling calls, 3 minutes off on low limit, and 20 minute time share.

As iO HVAC Controls stands behind their products, a 10 year warranty is included.
