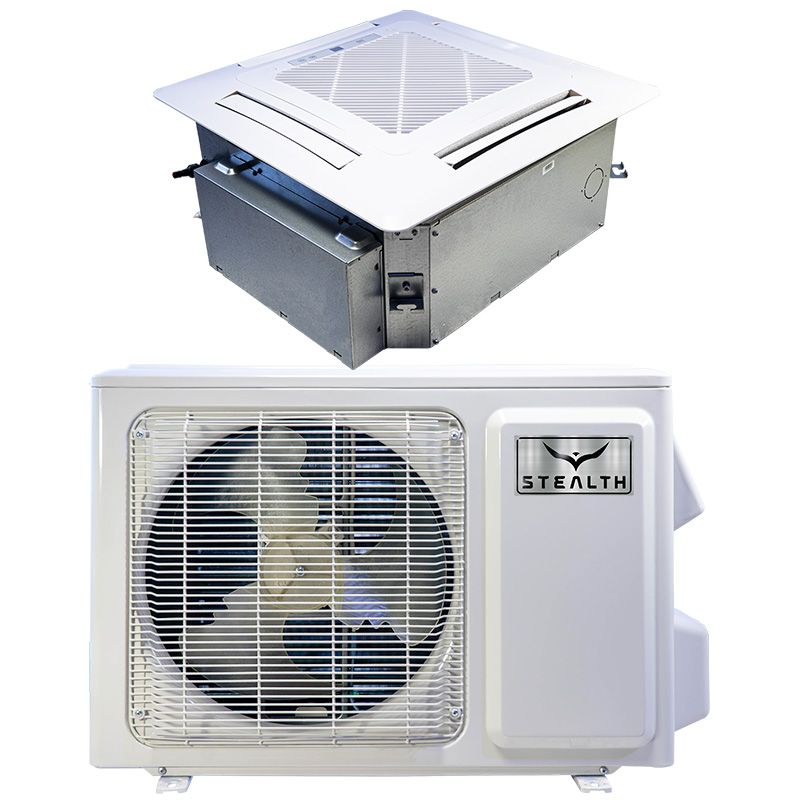

24,000 BTU 18 SEER Stealth Comfort Designer Mini Split Ceiling Cassette Single Zone System

SAVE $430.59
24,000 BTU 18 SEER Stealth Comfort Designer Mini Split Ceiling Cassette Single Zone System

Required Fields *

Customer reviews
Rating:
5 out of 5
Out of stock
By

Stealth

Out of stock

Model

SC-24Z-UM / SC-24CC-UM / SC-24CCG-UM

ID

107437

Enhanced Comfort

Stealth Designer Series Single Zone mini split systems provide the flexibility to use any of the available indoor unit types in a single zone application. Standard wall-mounted, flush mounted ceiling cassettes, floor-mounted and totally concealed ducted units are all available. You still get the precise temperature control, near-silent operation and maximum efficiency you expect from Stealth. There’s no more waiting to get exactly the system you want for your project.

Stealth Comfort Designer U-Match Cassette Decorative Grille - 24K

No Return Policy: All sales of this product are final and are non-refundable.

The Stealth Designer decorative grille is required for operation of a Stealth Designer U-Match 24,000 BTU ceiling cassette. The grille features directional louvers for a 4-way supply of conditioned air while the center of protects the return.

Compatible Indoor Units:

Ceiling Cassette: SC-24CC-UM

More Information
Stealth Comfort Designer U-Match Cassette Decorative Grille - 24K
FeatureSpec
SKUSC-24CCG-UM
Weight (in lbs)24
Brand/ManufacturerStealth
UPC689526902878
Height2.4"
Width37.5"
Depth37.5"
Warranty14 year compressor, 5 year parts with online registration
Safety InformationPROPOSITION 65 WARNING
Stealth Comfort Designer 24,000 BTU R410A 18 SEER Mini Split Single Zone Condenser
FeatureSpec
SKUSC-24Z-UM
Weight (in lbs)151.8
AHRI Certificate Number208758330
Brand/ManufacturerStealth
UPC689526902472
Cooling BTU23,800
Heating BTU27,200
Decibel Level (dBA)57 dB(A)
Electric HeatHeat Pump
RefrigerantR410A
HSPF10
SEER1 (Efficiency)18-20
EER10.7
Compressor TypeRotary
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size40 A
Min. Breaker Size23.4 A
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating0F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Zone CompatibilitySingle Zone
Height31-1/8"
Width38-5/8"
Depth16-3/4"
Warranty14 year compressor, 5 year parts with online registration
Resources
Safety InformationPROPOSITION 65 WARNING
24,000 BTU Stealth Comfort Designer Ceiling Cassette Single Zone Air Handler
FeatureSpec
SKUSC-24CC-UM
Weight (in lbs)59.4
Brand/ManufacturerStealth
UPC689526902779
Cooling BTU23,800
Heating BTU27,200
Maximum CFM765 CFM
Decibel Level (dBA)57 dB(A)
Electric HeatHeat Pump
RefrigerantR410A
HSPF10
SEER1 (Efficiency)18-20
EER10.7
Compressor TypeRotary
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size15A
Min. Breaker Size1.0A
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeCeiling Cassette
Min/Max Outdoor Temp for Heating0F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Zone CompatibilitySingle Zone
Height09.5"
Width36"
Depth39"
Warranty14 year compressor, 5 year parts with online registration
Resources
Safety InformationPROPOSITION 65 WARNING
