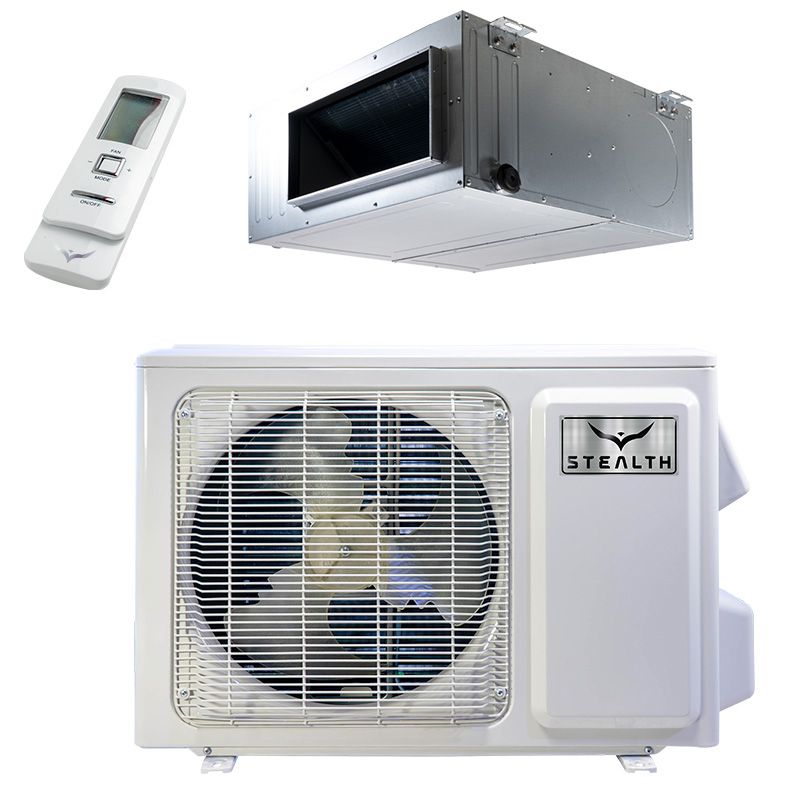

24,000 BTU 16 SEER Stealth Comfort Designer Mini Split Concealed Duct Single Zone System

SAVE $0.00
24,000 BTU 16 SEER Stealth Comfort Designer Mini Split Concealed Duct Single Zone System

Required Fields *

Customer reviews
Rating:
5 out of 5
Out of stock
By

Stealth

Out of stock

Model

SC-24Z-UM / SC-24CD-UM

ID

107347

Enhanced Comfort

Stealth Designer Series Single Zone mini split systems provide the flexibility to use any of the available indoor unit types in a single zone application. Standard wall-mounted, flush mounted ceiling cassettes, floor-mounted and totally concealed ducted units are all available. You still get the precise temperature control, near-silent operation and maximum efficiency you expect from Stealth. There’s no more waiting to get exactly the system you want for your project.

More Information
Stealth Comfort Designer 24,000 BTU R410A 18 SEER Mini Split Single Zone Condenser
FeatureSpec
SKUSC-24Z-UM
Weight (in lbs)151.8
AHRI Certificate Number208758330
Brand/ManufacturerStealth
UPC689526902472
Cooling BTU23,800
Heating BTU27,200
Decibel Level (dBA)57 dB(A)
Electric HeatHeat Pump
RefrigerantR410A
HSPF10
SEER1 (Efficiency)18-20
EER10.7
Compressor TypeRotary
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size40 A
Min. Breaker Size23.4 A
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating0F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Zone CompatibilitySingle Zone
Height31-1/8"
Width38-5/8"
Depth16-3/4"
Warranty14 year compressor, 5 year parts with online registration
Resources
Safety InformationPROPOSITION 65 WARNING
24,000 BTU Stealth Comfort Designer Concealed Duct Single Zone Air Handler
FeatureSpec
SKUSC-24CD-UM
Weight (in lbs)74.8
Brand/ManufacturerStealth
UPC689526902663
Cooling BTU23,800
Heating BTU27,200
Maximum CFM820 CFM
Decibel Level (dBA)46 dB(A)
Electric HeatHeat Pump
RefrigerantR410A
HSPF10
SEER1 (Efficiency)16-17
EER10.7
Compressor TypeRotary
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size40
Min. Breaker Size23.4
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeConcealed Duct
Min/Max Outdoor Temp for Heating0F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Zone CompatibilitySingle Zone
Height09.5"
Width45.6"
Depth20.4"
Warranty14 year compressor, 5 year parts with online registration
Resources
Safety InformationPROPOSITION 65 WARNING
