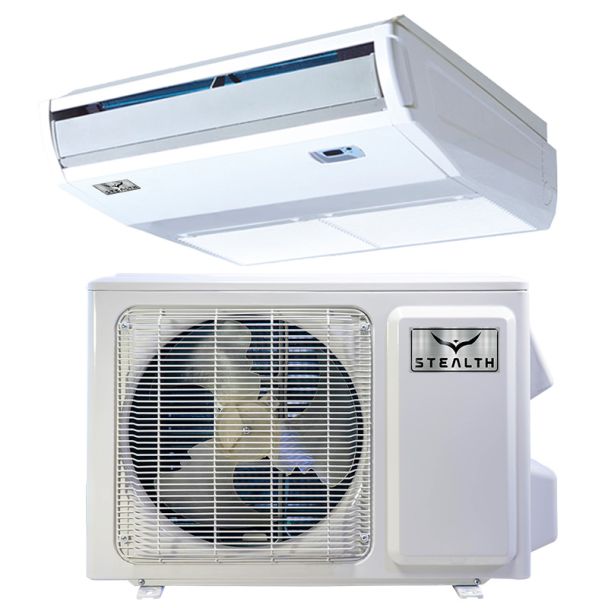

24,000 BTU 16 SEER Stealth Designer Mini-Split Floor Mounted Single Zone System

By

Stealth

Model

SC-24Z-UM / SC-24FM-UM

ID

107314

Rating:
100% of 100
Availability: In Stock - Ready to Ship

Authorized Stealth Dealer

AHRI Certified

AHRI Number:208758330

Suggested Retail $3,226.15
Your Low Price $2,097.00

Free Shipping

Required Fields *

Customize 24,000 BTU 16 SEER Stealth Designer Mini-Split Floor Mounted Single Zone System
24,000 BTU 16 SEER Stealth Designer Mini-Split Single Zone Condenser
24,000 BTU 16 SEER Stealth Designer Mini-Split Single Zone Condenser   + $1,395.00
24,000 BTU Stealth Designer Floor/Ceiling Mount Single Zone Air Handler
24,000 BTU Stealth Designer Floor/Ceiling Mount Single Zone Air Handler   + $702.00
24,000 BTU 16 SEER Stealth Designer Mini-Split Floor Mounted Single Zone System

$2,097.00

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

Enhanced Comfort

Stealth Designer Series Single Zone mini split systems provide the flexibility to use any of the available indoor unit types in a single zone application. Standard wall-mounted, flush mounted ceiling cassettes, floor-mounted and totally concealed ducted units are all available. You still get the precise temperature control, near-silent operation and maximum efficiency you expect from Stealth. There’s no more waiting to get exactly the system you want for your project.

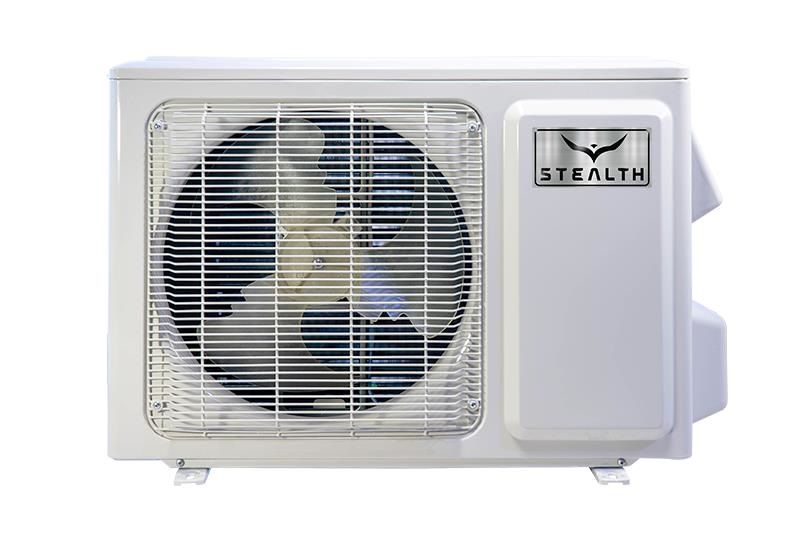

24,000 BTU 16 SEER Stealth Designer Mini-Split Single Zone Condenser

OVERVIEW

The Stealth Designer Series Single Zone SC-24Z-UM heat pump condenser has a Gen 3 variable inverter compressor, for even, predictable cooling and heating without temperature swings or noisy on/off cycling. The condenser ships with a pre-charge of eco-friendly R410a refrigerant.

QUICK FACTS

  • Superior engineering for maximum comfort with minimum noise
  • 9,000 BTU – 36,000 BTU models sizes available
  • Rugged construction with acrylic resin fin coating for durability
  • Intelligent defrost means more heat time and lower energy use
  • I-Feel function allows you to control temp sensing location
  • Sleep mode and Energy Saving mode give you more ways to save

24,000 BTU, 16 SEER

A system this size is suitable for rooms up to 1,000 square feet depending on climate in your area. The SEER rating of 16 means you pay less for this amount of heating and cooling compared to systems with lower SEER values. Stealth means elite performance and everyday prices.

14 Year Warranty

The Stealth Emerald Series features a 14 warranty with online registration. The standard warranty on the SC-24Z-UM is a 5-year parts and 7-year limited compressor warranty. With online registration and an installation following state and local installation codes, the compressor warranty increases to 14 years.

Durability and Reliability

Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Designer Series model, resulting in powerful performance across a punishing range of conditions. This SC-24Z-UM provides continuous heating down to an outside temperature of -31 degrees Fahrenheit.

Installation and Maintenance

Every Stealth Designer Series condenser includes a pre-charge of eco-friendly R410a refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits- including both refrigerant lines, control wire and drain hose extensions, are available under Accessories on this page. Stealth Designer Series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the unit.

Please note:  

This system includes only the outdoor condenser, indoor air handler and wall mounted, or remote thermostat (depending on model) as depicted in the photo above. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire and condensation control. The condenser requires connection to household power, wired through a disconnect switch and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 377-2850<.p>


ACIQ Ceiling Cassette Mini-Split SystemACIQ Ceiling Cassette Mini-Split System

 14 Year Warranty

The Stealth Designer Series features a 14 warranty. The standard warranty is a 5-year parts and 7-year limited compressor warranty. With online registration and installation following state and local installation codes, the compressor warranty increases to 14 years.


Quiet Operations

The Stealth Designer Series offers whisper-quiet operations even at the highest workloads while providing precision temperature control. It is a system that creates seamless comfort with maximum efficiency at a competitive price.

ACIQ Ceiling Cassette Mini-Split SystemACIQ Ceiling Cassette Mini-Split System

Stealth Designer Series Specifications

  • Effective cooling as low as 0°F to 118°F outdoor temperatures
  • Effective heating as low as 0°F to 75°F outdoor temperatures
  • 18,000 BTU – 48,000 BTU model sizes available

Modern Design

With its modern and sleek appearance, the Stealth Designer Series effortlessly blends into any environment, making it the perfect addition to any décor. In addition, it has state-of-the-art features such as soft LED displays, timer function, sleep mode, and energy save mode. Also, included is the I-Follow remote control location temperature sensing.

ACIQ Ceiling Cassette Mini-Split SystemACIQ Ceiling Cassette Mini-Split System

ACIQ Ceiling Cassette Mini-Split SystemACIQ Ceiling Cassette Mini-Split System

Durability and Reliability

Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Designer Series model, resulting in powerful performance across a punishing range of conditions. This Stealth Designer provides continuous heat even with outside temperatures down to 0 degrees Fahrenheit.


Installation and Maintenance

Every Stealth series condenser comes pre-charged of eco-friendly R410a refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including both refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. The Stealth Designer Series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside unit.

Please note: This system includes only the outdoor condenser, indoor air handlers, and wall-mounted or remote thermostats depending on model. Additional Accessories are required to complete the installation. Each air handler requires a separate refrigerant line set, control wire, and condensation control. The condenser requires connection to household power, wired through a disconnect switch, and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 397-1392.

ACIQ Ceiling Cassette Mini-Split SystemACIQ Ceiling Cassette Mini-Split System

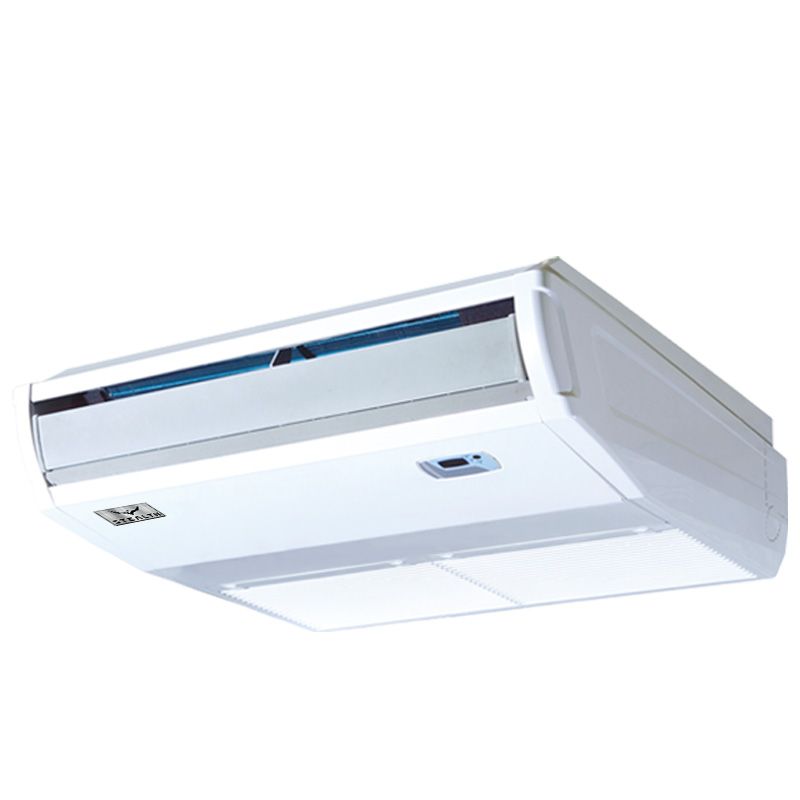

24,000 BTU Stealth Designer Floor/Ceiling Mount Single Zone Air Handler

Stealth Designer Series Floor or Ceiling Mount Air Handlers can be surface mounted vertically or horizontally* for ultimate flexibility in placement.  The wider, flatter form factor makes it a good solution when you only have vertical wall space that is close to the floor, such as in an attic room.  Surface mount on the ceiling is also possible but may require a separate condensate pump to remove water. 

Please note: This air handler must be connected to an outdoor condenser in order to function. 

Product Specifications

More Information
24,000 BTU 16 SEER Stealth Designer Mini-Split Single Zone Condenser
SKUSC-24Z-UM
Weight (in lbs)151.800000
AHRI Certificate Number208758330
Brand/ManufacturerStealth
HSPF10
Cooling BTU23,800
Heating BTU27,200
Maximum CFM705 CFM
Decibel Level (dBA)57 dB(A)
Electric HeatHeat Pump
RefrigerantR410A
SEER1 (Efficiency)16-17
EER10.7
Compressor TypeRotary
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size40
Min. Breaker Size23.4
Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating0F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Zone CompatibilitySingle Zone
Height31.1"
Width38.6"
Depth16.8"
Warranty14 year compressor, 5 year parts with online registration
Resources
Safety InformationPROPOSITION 65 WARNING
24,000 BTU Stealth Designer Floor/Ceiling Mount Single Zone Air Handler
SKUSC-24FM-UM
Weight (in lbs)88.000000
Brand/ManufacturerStealth
HSPF10
Cooling BTU23,800
Heating BTU27,200
Maximum CFM705 CFM
Decibel Level (dBA)40 dB(A)
Electric HeatHeat Pump
Energy StarNo
RefrigerantR410A
EER10.7
Compressor TypeRotary
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size40
Min. Breaker Size23.4
BTU/Tonnage24,000 BTU/2 Ton
Mini-Split TypeLow Wall/Ceiling
Min/Max Outdoor Temp for Heating0F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Zone CompatibilitySingle Zone
Height27.5"
Width48.0"
Depth08.9"
Warranty14 year compressor, 5 year parts with online registration
Resources
Safety InformationPROPOSITION 65 WARNING
