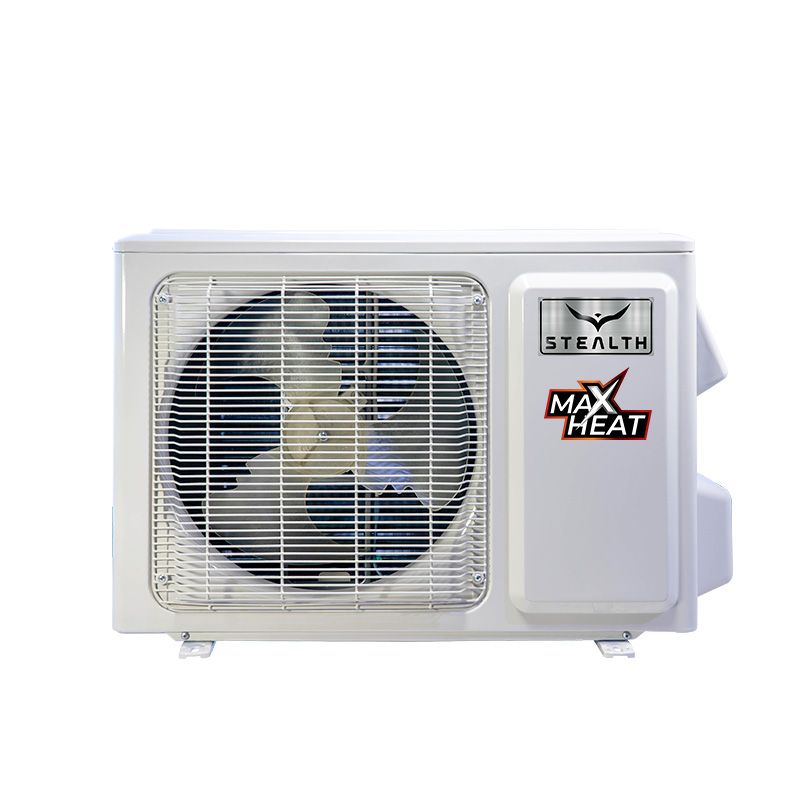

24,000 BTU 23 SEER Stealth Pinnacle Mini-Split 2-3 Zone Heat Pump Condenser

By

Stealth

In stock
Model

SC-27Z-HH-M3

ID

107113

Rating:
93% of 100
Availability: In Stock - Ready to Ship

Authorized Stealth Dealer

AHRI Certified

AHRI Number:208674945

Suggested Retail $3,163.85 Your Low Price Special Price $1,619.00

Free Shipping
Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

OVERVIEW

The Stealth Pinnacle Series Multi Zone SC-27Z-HH-M3 heat pump condenser is Energy Star rated, with Hyper Heat performance down to an outside temperature of –31 degrees Fahrenheit. The outdoor unit has connections for up to 3 air handlers and is pre-charged with R410a refrigerant for 98' of total line set length.

Pinnacle Series condensers have the highest efficiency ratings of any multi zone mini-split, up to 23 SEER and 10.5 HSPF.

QUICK FACTS

  • Energy Star Rated
  • Max efficiency up to 23 SEER and 10.5 HSPF
  • Heating temperatures range from -31°F to 75°F
  • Cooling temperatures range from 0°F to 118°F
  • 14 year compressor, 5 year parts extended warranty with registration
  • 18,000 BTU – 42,000 BTU condenser models available
  • Rugged construction with acrylic resin fin coating for durability

24,000 BTU, 23 SEER

This condenser has connections for up to 3 air handlers to cover different rooms or zones in your space. The SEER rating of 23 means you pay less for this amount of heating and cooling compared to systems with lower SEER values. The Stealth Pinnacle Series means elite performance at attractive prices.

14 Year Warranty

The Stealth Emerald Series features a 14 warranty with online registration. The standard warranty on the SC-24Z-HH-M3 is a 5-year parts and 7-year limited compressor warranty. With online registration and an installation following state and local installation codes, the compressor warranty increases to 14 years.

Durability and Reliability

Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Pinnacle Series model, resulting in powerful performance across a punishing range of conditions. The SC-18Z-HH-M2 provides continuous heat with outdoor temperatures down to -31 degrees Fahrenheit.

Installation and Maintenance

Every Stealth Pinnacle series condenser comes pre-charged with R410a refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including insulated copper refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. Stealth Pinnacle series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside units.

Please note:

This system includes only the outdoor condenser, indoor air handlers and wall-mounted or remote thermostats (depending on model) as depicted in the photo above. Additional Accessories are required to complete the installation.

Each air handler requires a separate refrigerant line set, control wire and condensation control. The condenser requires connection to household power, wired through a disconnect switch and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 377-2850.

Product Specifications

More Information
24,000 BTU 23 SEER Stealth Pinnacle Mini-Split 2-3 Zone Heat Pump Condenser
SKUSC-27Z-HH-M3
Refrigerant ChargePre-charged for: 98'
Weight (in lbs)183.000000
AHRI Certificate Number208674945
Brand/ManufacturerStealth
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 82'
Additional InformationMaximum System Piping: 164'
HSPF10.5
Cooling BTU22,000
Heating BTU26,000
Decibel Level (dBA)Outdoor Unit: 58 dB(A)
RefrigerantR410A
SEER1 (Efficiency)23-24
EER12.5
Liquid Line1/4" (3)
Suction Line3/8" (3)
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size35 amps
Min. Breaker Size23 amps
Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating-31F - 75F
Min/Max Outdoor Temp for Cooling0F - 118F
Zone CompatibilityMulti Zone
Height31.1"
Width36.2"
Depth15.6"
Warranty14 year compressor, 5 year parts with online registration
