24,000 BTU Daikin Aurora Multi-Zone Wall Mount Mini Split Heat Pump System - R-410A | 230V - 18+9
Required Fields *
By
Daikin
Out of stock
Model
3MXL24WMVJU9 / FTXS18WVJU9 / FTXR09WVJUS9
ID
212790
Out of stock

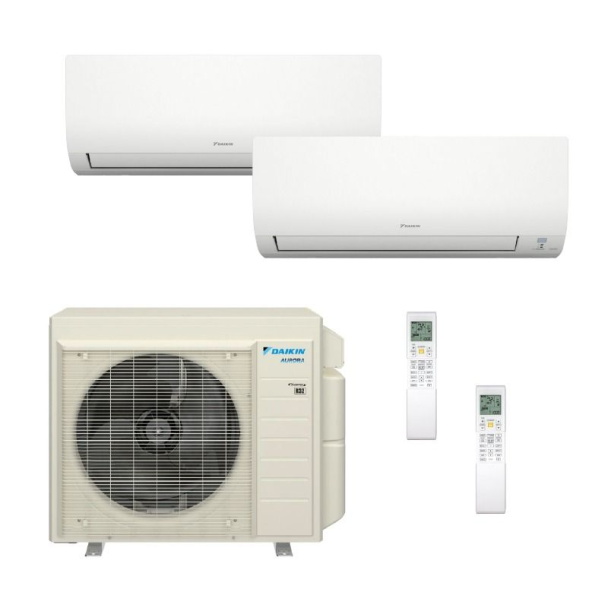

The 24,000 BTU Daikin Aurora Multi-Zone Wall Mount Mini Split Heat Pump System is a high-efficiency solution designed to provide year-round heating and cooling for multiple spaces. Ideal for residential and light commercial applications, this system includes one 18,000 BTU and one 9,000 BTU indoor unit, allowing independent climate control in each area. Featuring advanced inverter technology, a sleek wall-mounted design, and eco-friendly R-410A refrigerant, this system ensures superior energy savings and personalized comfort.
Key Features
- 24,000 BTU Total Capacity – Includes one 18,000 BTU and one 9,000 BTU indoor unit for efficient heating and cooling.
- 18 SEER2 Energy Efficiency – Reduces energy consumption while maintaining powerful performance.
- Dual Zone Operation – Independently control two separate spaces for customized comfort.
- Advanced Inverter Technology – Adjusts power output for consistent temperature control and efficiency.
- Eco-Friendly R-410A Refrigerant – Minimizes environmental impact while enhancing system performance.
- Quiet Operation – Low noise levels make it ideal for bedrooms, offices, and other quiet areas.
- Wall-Mounted Indoor Units – Sleek, space-saving design that blends seamlessly with any décor.
- 230V Power Supply – Ensures stable and efficient operation for long-term reliability.
Ideal Applications
- Homes, offices, and commercial spaces needing efficient dual-zone heating and cooling.
- Areas without ductwork where a traditional HVAC system is impractical.
- Bedrooms, living rooms, kitchens, or other spaces requiring independent climate control.
- Replacing inefficient window units, portable air conditioners, or outdated heating systems.
What's Included
- One (1) 18,000 BTU Wall-Mounted Indoor Unit
- One (1) 9,000 BTU Wall-Mounted Indoor Unit
- Outdoor Condenser Unit
- Two (2) Wireless Remote Controllers
- Installation Kit (line set length varies based on selection)
- Wall Mounting Brackets
Warranty
Daikin provides a 12-year limited warranty on parts for registered systems, ensuring peace of mind and long-term reliability.
Daikin 2.0‑Ton 24,000 BTU Aurora Single Zone Heat Pump Condenser – R410A - 3MXL24WMVJU9
The Daikin 3MXL24WMVJU9 multi-zone heat pump system delivers reliable comfort and energy efficiency. Combining the ducted FDMQ24WVJU9 indoor unit with the 3MXL24WMVJU9 outdoor condenser, it provides steady heating and cooling with minimal noise and precise temperature control. Rapid heating and cooling features ensure quick attainment of the desired indoor temperature.
Features
- Cooling Capacity (Nominal): 21,200 BTU/hr (range: 9,000–23,000)
- Heating Capacity (Nominal): 24,000 BTU/hr (range: 9,000–27,600)
- SEER2 / EER2 / HSPF2 / COP2: 15.2 / 9.6 / 8.4 / 3.0
- Refrigerant / Oil: R‑410A / FVC50K
- Maximum Piping Length / Elevation: 98.5 ft (30 m) / 65.6 ft (20 m), pre-charged up to 32.75 ft
- Indoor Noise / Outdoor Noise: ~40 dB(A) / ~55 dB(A)
- Fan Airflow (Indoor / Outdoor): 731 cfm (High) / 2,641 cfm
- Power Supply: Single-phase, 208–230V, 60Hz
- Dimensions (Indoor / Outdoor): 9‑⅝" × 39‑⅜" × 31‑½" / 28‑15/16" × 34‑¼" × 12‑5/8"
- Weight (Indoor / Outdoor): 82 lb / ~143 lb
- Special Modes: Hot Start, Dry, Powerful, Comfort, Auto-Restart
This system requires a compatible indoor unit. The Daikin Aurora series is ideal for residential and light commercial applications.
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 15 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 30 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 50 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 25 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet
Refrigerant line set (pair) for mini split systems, liquid line size 1/4 inch O.D. flared ends, suction line size 1/2 inch O.D. flared ends, length 35 feet, insulation thickness of 1/2 inch. For use with air conditioning and refrigeration systems, includes both the liquid line and the suction line.
Features:
- One pair, heavy duty refrigerant lines
- Flared line ends
| Daikin 2.0‑Ton 24,000 BTU Aurora Single Zone Heat Pump Condenser – R410A - 3MXL24WMVJU9 | |
|---|---|
| SKU | 3MXL24WMVJU9 |
| Refrigerant Charge | precharged for: 33' |
| Weight (in lbs) | 143.000000 |
| Brand/Manufacturer | Daikin |
| Cooling BTU | 24,200 BTU/hr |
| Heating BTU | 24,000 BTU/hr |
| Decibel Level (dBA) | 55 dB(A) |
| Refrigerant | R410A |
| SEER2 (Efficiency) | 15.2 |
| Compressor Type | Swing |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230V 1 Phase 60 Hz |
| Max Breaker Size | 15 amps |
| Min. Breaker Size | 9.5 amps |
| BTU/Tonnage | 24,000 BTU/2 Ton |
| Min/Max Outdoor Temp for Heating | -13°F - 75°F |
| Min/Max Outdoor Temp for Cooling | 50°F - 115°F |
| Zone Compatibility | Single Zone |
| Height | 28-15/16" |
| Width | 34-1/4" |
| Depth | 12-5/8" |
| Warranty | 12 Years with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends - 15 feet | |
| SKU | 201814 |
| Weight (in lbs) | 15.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends - 30 feet | |
| SKU | 216741 |
| Weight (in lbs) | 30.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 30' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends - 50 feet | |
| SKU | 366402 |
| Weight (in lbs) | 45.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 50' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends - 25 feet | |
| SKU | 366400 |
| Weight (in lbs) | 25.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 25' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Refrigerant Line Set with 1/4" and 1/2" Line Ends - 35 feet | |
| SKU | 366401 |
| Weight (in lbs) | 35.000000 |
| Brand/Manufacturer | Online Supply |
| Length | 15' |
| Height | 1/2" |
| Width | 1/2" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
