Infinity Living 2 Ton 17.4 SEER2 High Efficiency Heat Pump Split System - R410A Hyper Heat Inverter - Multi-Positional

Required Fields *

By

Infinity Living

In stock

Model

EZ-24-HP / EZ-24-AH

ID

175406

Was $3,572.00
Your Low Price $2,500.00
Customer reviews
Rating:
4.9 out of 5

Ships in 5-6 Weeks
Free Shipping
Customize Infinity Living 2 Ton 17.4 SEER2 High Efficiency Heat Pump Split System - R410A Hyper Heat Inverter - Multi-Positional
24,000 BTU Stealth Single Zone Ducted Air Handler-R410A
24,000 BTU Stealth Single Zone Ducted Air Handler-R410A
24,000 BTU Stealth Single Zone Ducted Air Handler-R410A   + $1,350.00
24,000 BTU Stealth Single Zone Ducted Air Handler-R410A
24,000 BTU Stealth Single Zone Ducted Air Handler-R410A
24,000 BTU Stealth Single Zone Ducted Air Handler-R410A   + $1,150.00
Installation Kit for Condensers
30" Wall Mount Bracket
Stealth 5 Kilowatt 16,200 BTU Electric Heat Kit
Ecobee Smart WiFi Thermostat with Alexa
ez-24-hp / ez-24-ah

$2,500.00

OVERVIEW

The Infinity Living 2 Ton 17.4 SEER2 Hyper Heat Split System is designed for homeowners seeking year-round comfort with maximum efficiency. With advanced hyper heat technology, this system delivers superior heating performance, even in the coldest climates. The high SEER2 rating ensures energy-efficient cooling, reducing your utility bills and providing consistent comfort all year long.

Quick Facts

  • 2 Ton, 17.4 SEER2, 10 HSPF2 heat pump split system
  • Can cool up to a small house in average conditions
  • Twin rotary inverter compressors
  • Variable speed blower motor
  • Multi-positional air handler
  • Factory-charged with R410A refrigerant
  • EEV metering device
  • Wired thermostat included
  • 10 year parts and compressor warranty with online registration
  • AHRI certified

EZ Connect

One of the standout features of this system is the EZ Connect linesets, which significantly simplify the installation process. These pre-charged, no-flare linesets eliminate the need for specialized tools and brazing, reducing installation time and costs. This feature also minimizes the risk of refrigerant leaks, ensuring a clean and secure connection for lasting system performance. Perfect for both new installations and replacements, the EZ Connect linesets streamline your HVAC setup, making it faster and more efficient than traditional linesets.

Why Infinity Living?

Infinity Living is built around a simple concept: empowering homeowners with a single-source home improvement solution. Specializing in simple, stylish, and affordable options to enhance your home, we enable you to take charge of your home's comfort and aesthetics without the need for professional assistance.

With reliable performance, innovative design, and energy-saving benefits, this system is the ideal choice for anyone looking to upgrade their home’s HVAC system.

More Information

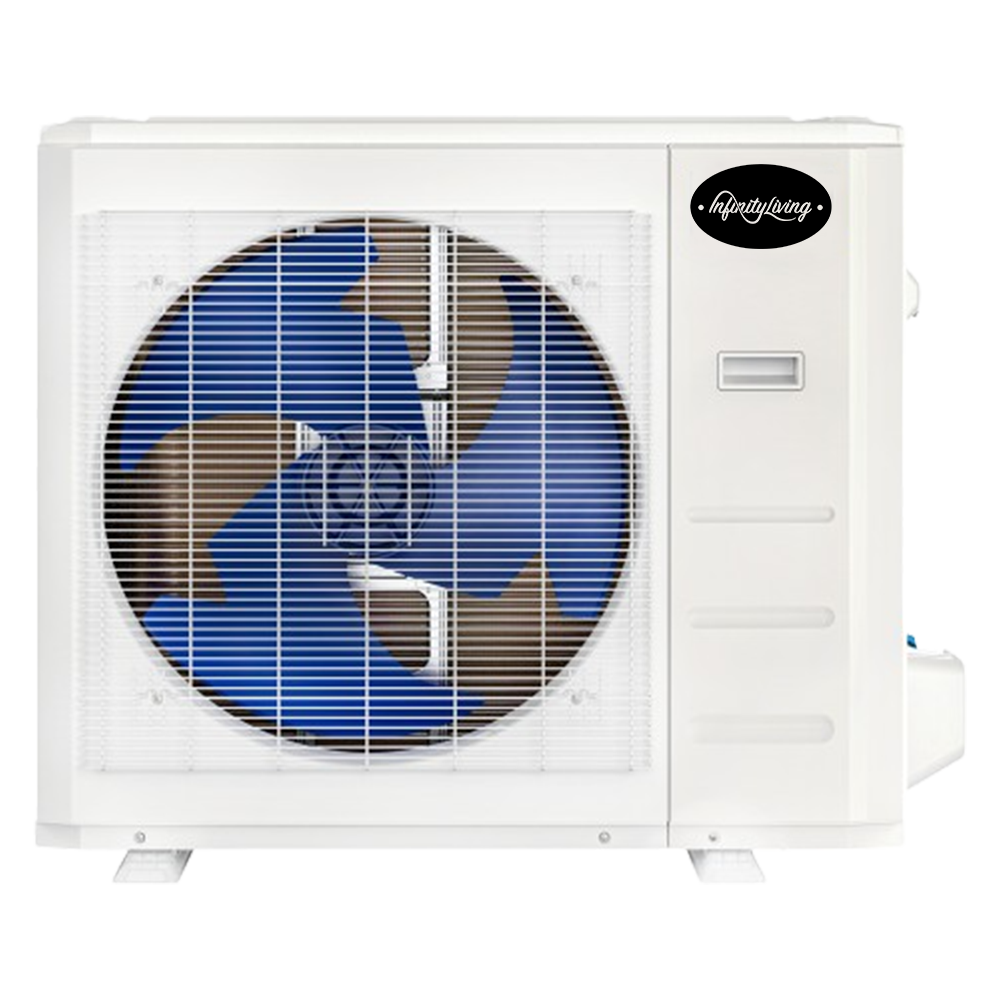

Infinity Living 24K BTU R410A 17.4 SEER2 Hyper Heat Central Ducted Heat Pump Condenser
FeatureSpec
SKUEZ-24-HP
Weight (in lbs)145.500000
Brand/ManufacturerStealth
Product FeaturesHigh Efficiency / Inverter, Hyper Heat, Quick Connect, Variable Speed Condenser
Cooling BTU24,000 BTU
Heating BTU24,000 BTU
Maximum CFM823.53 CFM
Decibel Level (dBA)62 Decibels
RefrigerantR410A
HSPF2

HSPF2-4: 10

HSPF2-5: 8.0

SEER2 (Efficiency)17.4
Condenser StagesVariable Speed
Compressor TypeTwin Rotary
Liquid Line3/8"
Suction Line3/4"
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size35 Amps
Min. Breaker Size20.5 Amps
Tonnage2 Ton
BTU/Tonnage24,000 BTU/2 Ton
Height31.89"
Width37.24"
Depth16.14"
Warranty10 Years Parts and Compressor with Online Registration
Resources You will need Adobe‚ Acrobat‚ Reader to view PDF documents
Safety InformationPROPOSITION 65 WARNING

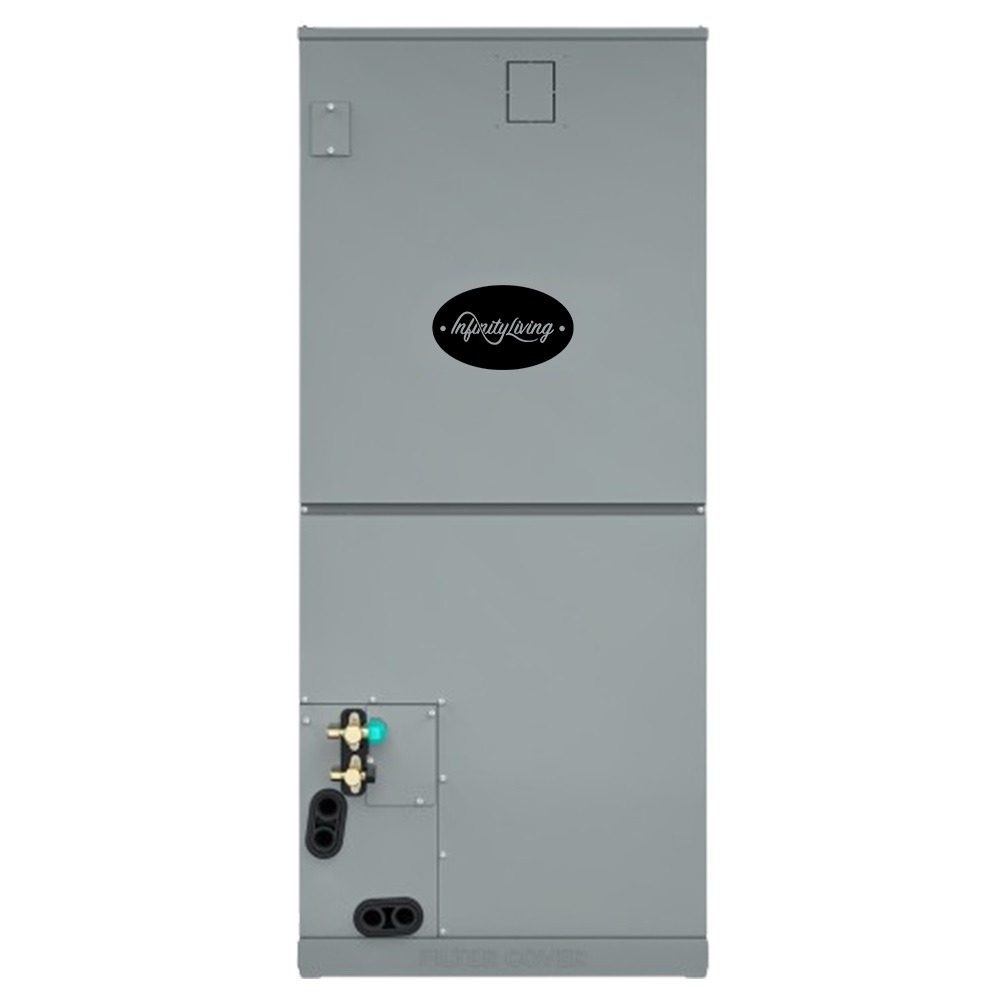

24,000 BTU Stealth EZ Connect High‑Efficiency Ducted Air Handler – R410A | 230V
FeatureSpec
SKUEZ-24-AH
Weight (in lbs)127.430000
Brand/ManufacturerStealth
Product FeaturesQuick Connect
Cooling BTU24,000 BTU
Maximum CFM3000 CFM
RefrigerantR410A
SEER2 (Efficiency)17.4
Liquid Line3/8"
Suction Line3/4"
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size15 Amps
Tonnage2 Ton
Height45.00"
Width21.02"
Depth17.52"
Warranty10 Years Parts and Compressor with Online Registration
Resources You will need Adobe‚ Acrobat‚ Reader to view PDF documents
Safety InformationPROPOSITION 65 WARNING

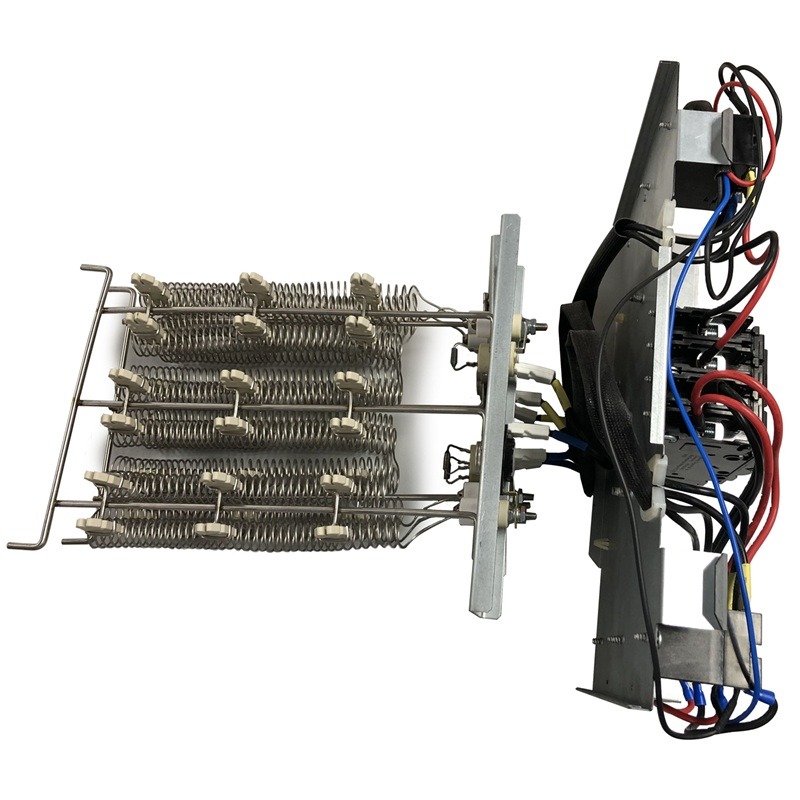

Stealth 5 Kilowatt 16,200 BTU Electric Heat Kit
FeatureSpec
SKUEAH-05B-IL
Weight (in lbs)8.000000
Brand/ManufacturerStealth
Heating BTU16,200
Electric Heat5 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Safety InformationPROPOSITION 65 WARNING
Stealth 15 Kilowatt 51,150 BTU Electric Heat Kit
FeatureSpec
SKUEAH-15B-IL
Weight (in lbs)10.000000
Brand/ManufacturerStealth
Heating BTU51,150
Electric Heat15 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Safety InformationPROPOSITION 65 WARNING
Stealth 10 Kilowatt 34,100 BTU Electric Keat Kit
FeatureSpec
SKUEAH-10B-IL
Weight (in lbs)8.000000
Brand/ManufacturerStealth
Heating BTU34,100
Electric Heat10 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Safety InformationPROPOSITION 65 WARNING
Stealth 8 Kilowatt 26,000 BTU Electric Heat Kit
FeatureSpec
SKUEAH-08B-IL
Weight (in lbs)8.000000
Brand/ManufacturerStealth
Heating BTU26,000
Electric Heat8 Kilowatts
Electrical208 / 230 / 240 Volts / 1 Phase
PhaseSingle Phase
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
FeatureSpec
SKU87762 / EL1838-3
Weight (in lbs)25.000000
Brand/ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Ecobee Smart WiFi Thermostat with Alexa
FeatureSpec
SKUEB-STATE6P-01
Weight (in lbs)0.500000
Brand/Manufacturerecobee
Product FeaturesProgrammable, WiFi, Heat Pump Capable, 3 Heat, 2 Cool
Energy StarYes
Warranty3 years
Resources
Safety InformationPROPOSITION 65 WARNING
ACiQ WiFi Programmable 3H/2C Heat Pump 2H/2C Conventional Touchscreen Thermostat
FeatureSpec
SKUSTN855W
Weight (in lbs)1.000000
Brand/ManufacturerACiQ
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible
FeatureSpec
SKUTL04-1
Weight (in lbs)0.700000
Brand/ManufacturerACiQ
Product FeaturesHeat Pump Capable, Programmable, WiFi, 1 Heat, 2 Heat, 3 Heat, 1 Cool, 2 Cool
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
ACiQ Non-Programmable 2H/1C Thermostat
FeatureSpec
SKUSTN1320
Weight (in lbs)1.000000
Brand/ManufacturerACiQ
Product FeaturesNon Programmable, Heat Pump Capable, 2 Heat, 1 Cool
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
30" Wall Mount Bracket for Mini Split Systems
FeatureSpec
SKUACB-30
Weight (in lbs)9.200000
Brand/ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
FeatureSpec
SKUMSK001
Weight (in lbs)15.000000
Brand/ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Top reviews
  1. Amazing customer support
    Quality
    60%
    Service
    100%
    Price
    100%
    My experience with the HVACdirect staff in both sales and technical support was AMAZING. This company clearly knows how to make a customer and DIY installer happy. After being part of seven previous minisplit installs with top-tier brands, I have to admit I'm nervous buying this far cheaper and strangely generic unit. It is running perfectly now, after the DIY lineset presented no problems (I called the technical guys mostly to ask, "Is this seriously all I have to do?") But will the unit take a dump in a few months? Will I get just a few years out of it? Is it literally made on the same assembly line as the name brands? Who knows? As much as I worry about its resiliency and performance, there is a satisfaction to NOT paying the runaway prices of the top tier and the installation technicians they require. So I'm leaving a five-star rating on service and price; I'd rather not rate the quality just yet but it's forcing me to choose, so I'll go with two stars. OMG, the unit and I hardly know each other. Check back a little later for an honest assessment of quality and performance.

    Review by

    Posted on

  2. parts were shipped promptly thankyou.
    Quality
    100%
    Service
    100%
    Price
    100%
    this is our 2nd unit from you folks, 1st.one has been working 4 yrs.flawless, this 2nd. unit seems to be doing a good job cooling. our temp. is in the mid to upper 90s and very humid now it is very quiet and we got a very clean installation on it i have to register the package still we just installed it on july 4th. thanks very much for quick delivery and safe packaging.

    Review by

    Posted on

  3. Great Product
    Quality
    100%
    Service
    100%
    Price
    100%
    Thanks for the great price

    Review by

    Posted on

  4. Great unit easy install
    Quality
    100%
    Service
    100%
    Price
    100%
    Nice unit great easy install and works great

    Review by

    Posted on

  5. Wonderful company
    Quality
    100%
    Service
    100%
    Price
    100%
    They where wonderful to work with!

    Review by

    Posted on

Customer Questions
Is there a way to add WiFi to this unit?
You can set this system up with a WiFi thermostat such as an Ecobee to add WiFi-capabilities to it. If you are interested in the Ecobee, the model number for it is EB-STATE6P-01. If you have any further questions, please call us and we will be happy to assist you.
can you use a Honeywell thermostat?
Yes, you can use a Honeywell thermostat with the EZ-24-HP / EZ-24-AH system, but only if you set the system to 24-volt (non-communicating) mode using the DIP switches and wire it correctly. If you have any further questions, please call us and we will be happy to assist you.
