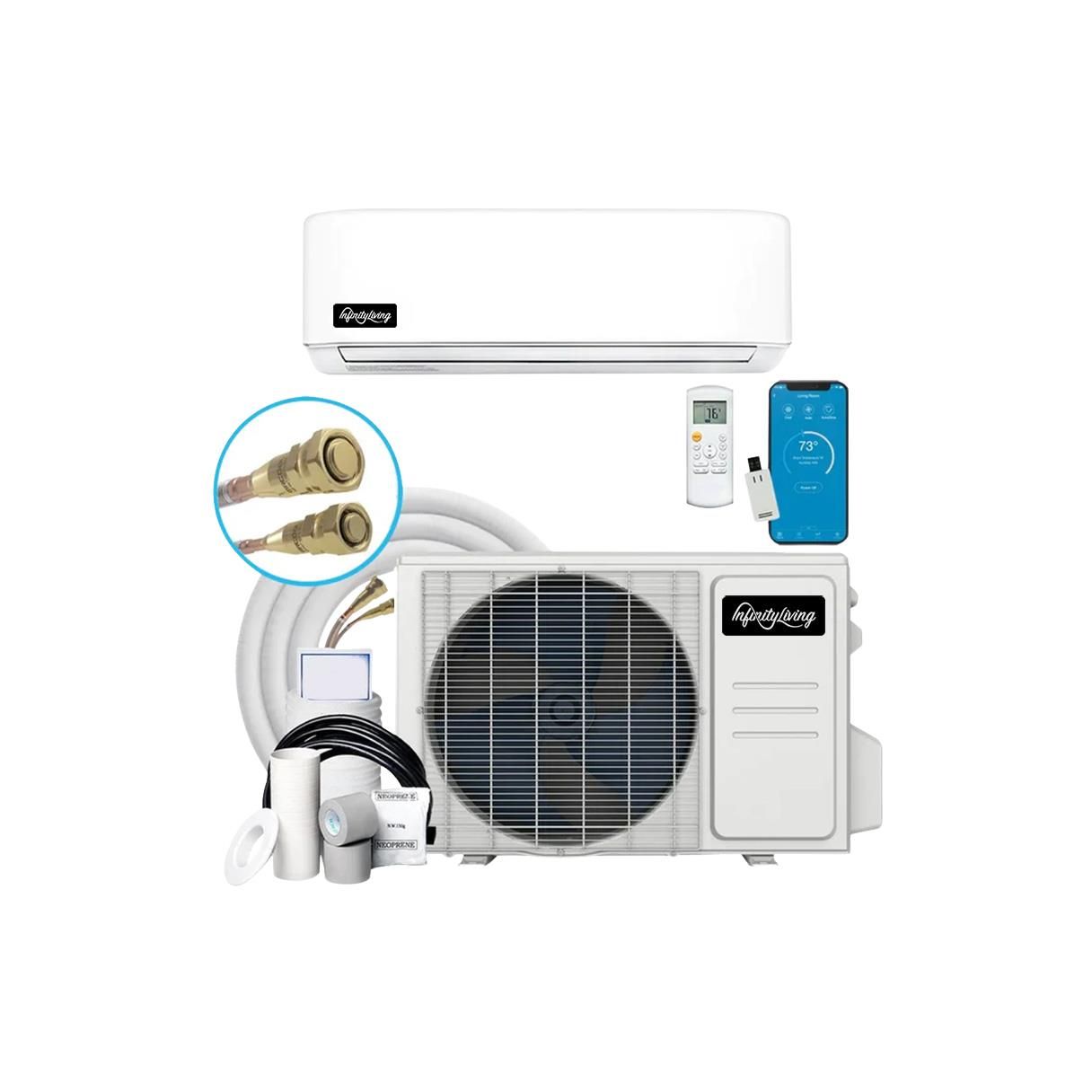

24,000 BTU Infinity Living DIYCOOL 18.9 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V

SAVE $1,103.84

Required Fields *

By

Infinity Living

In stock

Model

EZ-24Z-HP230B / EZ-24W-HP230B

ID

209107

Rating:
100% of 100
In Stock - 64 Ready to Ship
Was $3,153.83
Your Low Price $2,049.99

Free Shipping
  • EZ Connect Installation
  • Includes 16ft Line Set
  • Heating & Cooling
  • Quiet Operation
  • Perfect for up to 1,500sqft Rooms
  • Wi-Fi & Smartphone App Capabilities
Customize 24,000 BTU Infinity Living DIYCOOL 18.9 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
24,000 BTU Infinity Living DIYCOOL Wall Mount Air Handler - R454B
24,000 BTU Infinity Living DIYCOOL Wall Mount Air Handler - R454B
24,000 BTU Infinity Living DIYCOOL Wall Mount Air Handler - R454B   + $717.50
24,000 BTU Infinity Living Single Zone Condenser - R454B
24,000 BTU Infinity Living Single Zone Condenser - R454B
24,000 BTU Infinity Living Single Zone Condenser - R454B   + $1,332.49
Condenser Risers - 4" x 18" - 2 Pack
Installation Kit for Condensers
24,000 BTU Infinity Living DIYCOOL 18.9 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V - EZ-24Z-HP230B / EZ-24W-HP230B

$2,049.99

Infinity Living DIYCOOL 24,000 BTU Mini Split Heat Pump System – 18.9 SEER2, R454B, 230V

The Infinity Living DIYCOOL 24,000 BTU Mini Split System is a high-efficiency, single zone heating and cooling solution for rooms up to 1,500 sq. ft. Designed for easy DIY installation, this wall-mounted mini split heat pump includes a 16 ft pre-charged line set and advanced inverter technology for reliable year-round comfort.

Main Features

  • 24,000 BTU Capacity: Ideal for large rooms, open floor plans, or larger spaces
  • 18.9 SEER2 Efficiency: Reduces energy use and helps lower utility bills
  • R454B Refrigerant: Eco-friendly and energy-efficient alternative to older refrigerants
  • Easy Installation: Includes 16 ft. pre-charged line set with EZ Connect fittings
  • Low Ambient Cooling: Operates in outdoor temperatures down to -13°F
  • Smart Controls: Compatible with Amazon Alexa and Google Assistant
  • Quiet Operation: Low-noise performance for peaceful environments

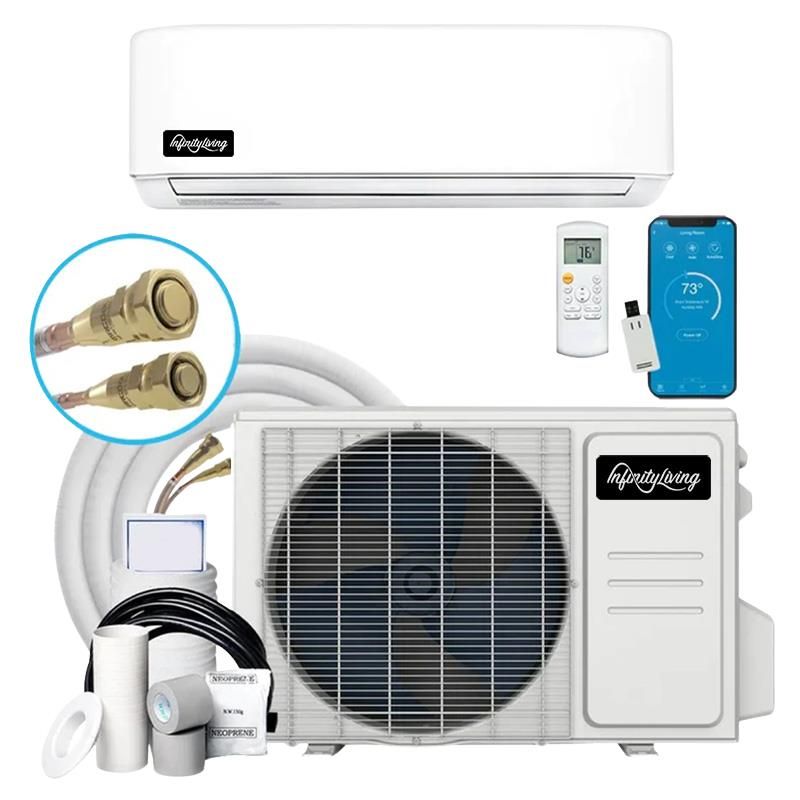

What’s Included

  • Indoor air handler & outdoor condenser
  • 16 ft pre‑charged line set and control wiring
  • Mounting bracket and accessory kit
  • WiFi‑ready module and LCD remote

Warranty

  • Parts: 5 Years
  • Compressor: 7 Years
More Information

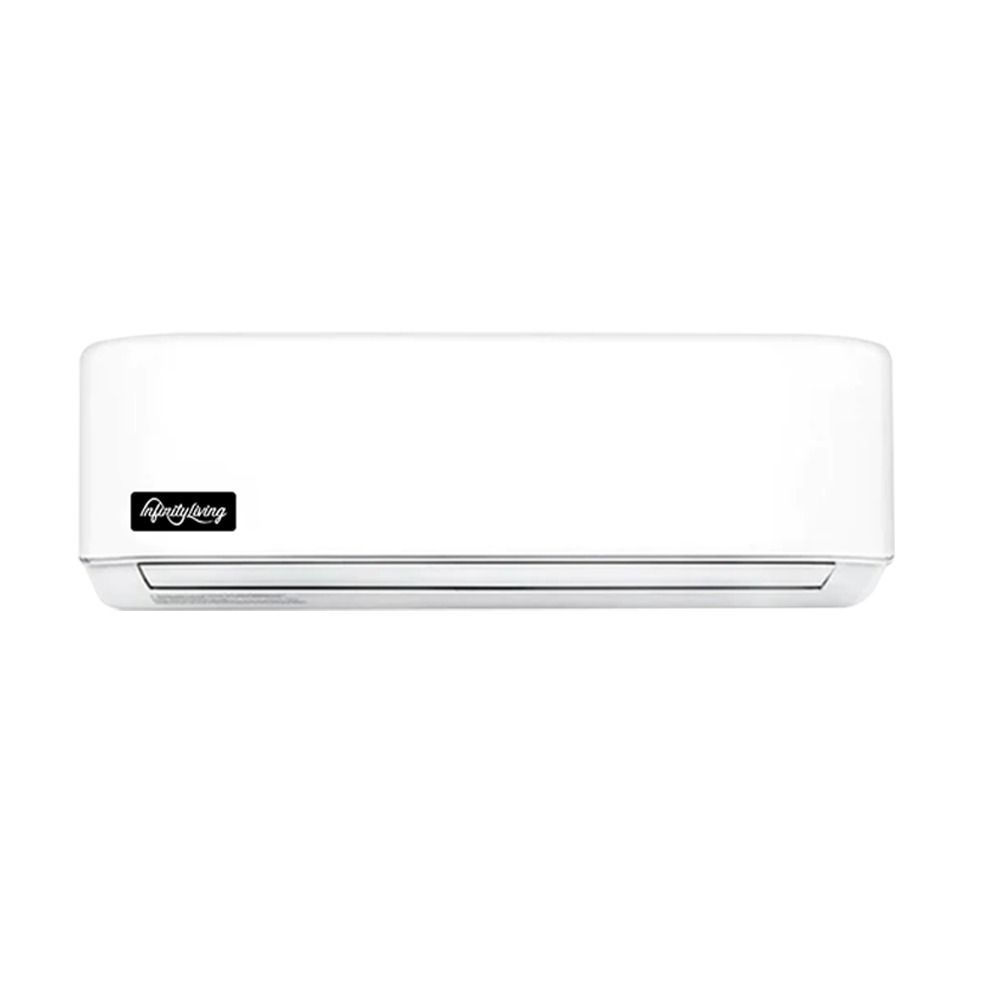

24,000 BTU Infinity Living DIYCOOL Single Zone Wall Mount Mini Split Air Handler - R454B | 230V
SKUEZ-24W-HP230B
Weight49.600000
ManufacturerInfinity Living
ReplacesEZ-24W-HP230
Product FeaturesQuick Connect, WiFi
HSPF29.7
Cooling BTU24000 BTU
Heating BTU25000 BTU
Decibel Level (dBA)21.5
RefrigerantR454B
SEER218.9
Liquid Line3/8
Suction Line5/8
Max Breaker Size15
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeWall Mounted
Zone CompatibilitySingle Zone
Height13.27
Width42.60
Depth9.21
Warranty5 Year Parts / 7 Year Condenser with Online Registration
Resources You will need Adobe‚ Acrobat‚ Reader to view PDF documents
Safety Informationsafety_information=PROPOSITION 65 WARNING

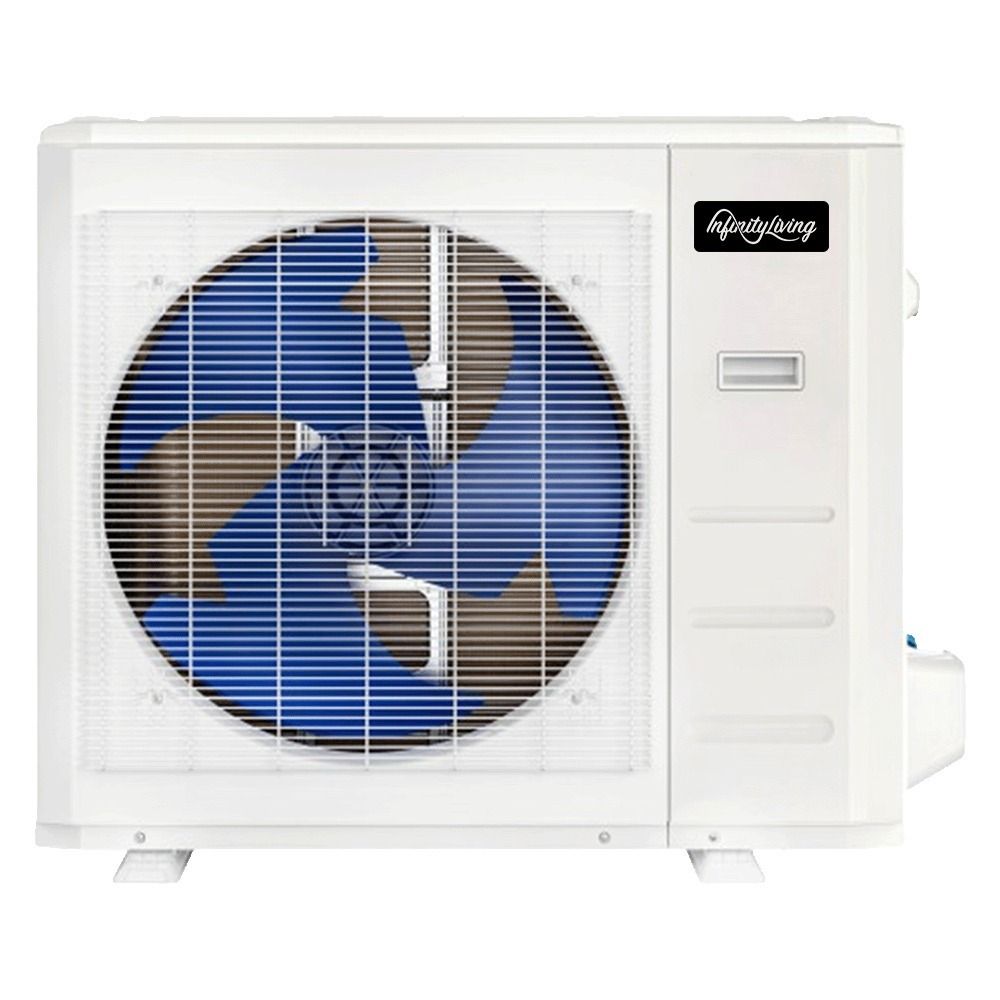

24,000 BTU Infinity Living DIYCOOL Single Zone Mini Split Heat Pump Condenser - R454B | 230V
SKUEZ-24Z-HP230B
Weight117.730000
ManufacturerInfinity Living
ReplacesEZ-24Z-HP230
Product FeaturesQuick Connect, WiFi
HSPF28.7
Cooling BTU24000
Heating BTU25000
Maximum CFM3000
Decibel Level (dBA)61
RefrigerantR454B
SEER218.9
Compressor TypeRotary
Liquid Line3/8
Suction Line5/8
Electrical208/230V, 60HZ, 1Ph
Max Breaker Size20
BTU/Tonnage24,000 BTU/2 Ton
Zone CompatibilitySingle Zone
Height26.5
Width35.04
Depth13.46
Warranty5 Year Parts / 7 Year Condenser with Online Registration
Resources You will need Adobe‚ Acrobat‚ Reader to view PDF documents
Safety InformationPROPOSITION 65 WARNING
Condenser Risers - 4" x 18" - 2 Pack
SKU87762
Weight5.000000
ManufacturerOnline Supply
E Lite Equipment Pad and Risers Kit 18" x 38" x 3"
SKU87762 / EL1838-3
Weight25.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
SKUACB-30
Weight9.200000
ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
E Lite Equipment Pad 18" x 38" x 3"
SKUEL1838-3
Weight16.000000
ManufacturerOnline Supply
Height3"
Width18"
Depth38"
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Write Your Own Review
You're reviewing:24,000 BTU Infinity Living DIYCOOL 18.9 SEER2 Single Zone Wall Mount Mini Split Heat Pump System - R454B | 230V
Your Rating
Customer Questions
What electric does this product need?
Thank you for reaching out, this system requires an electrical voltage of 208/230V, 60HZ, 1 phase.
