Mitsubishi 24,000 BTU SEZ-AD-Series Single Zone Mini Split Heat Pump Condenser R-454B | 230V

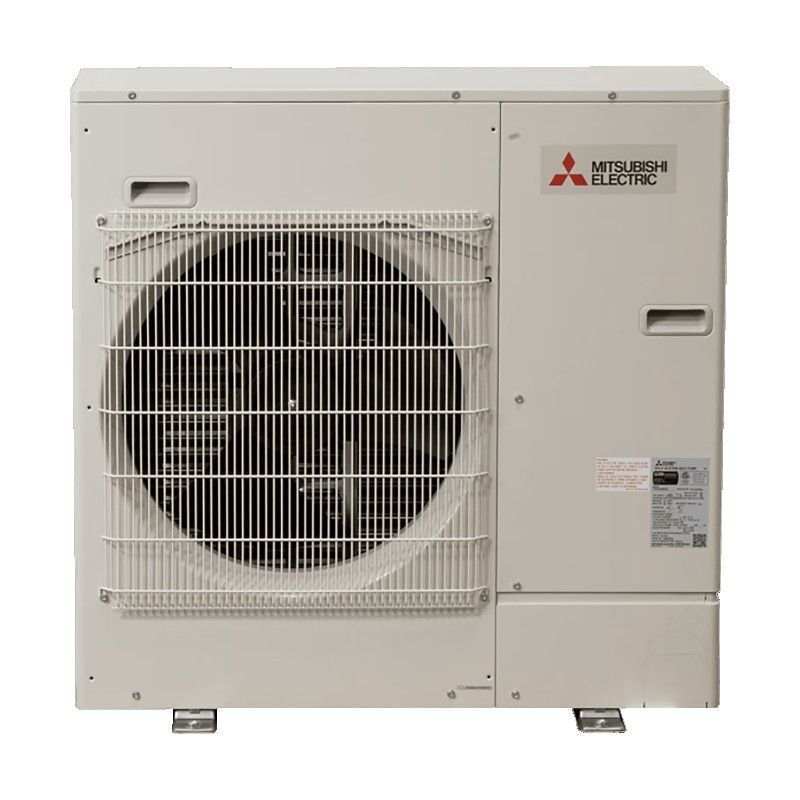

PUY-AH24NL - Outdoor Unit for Ceiling-Suspended Air Conditioning System

The PUY-AH24NL is a high-performance outdoor unit designed for use with ceiling-suspended air conditioning systems, offering excellent cooling and heating capabilities for larger spaces. It is ideal for commercial and residential applications that require efficient climate control across multiple zones. Below are the key features and specifications of this model:

Key Features:

• Blue Fin Coating: An anti-corrosion treatment applied to the heat exchanger's aluminum fins, protecting against corrosion from salt, sulfur, and other airborne contaminants, especially in coastal and industrial areas.
• Continuous Operation: Capable of 24-hour continuous operation in cooling mode, providing consistent comfort around the clock.
• Fast Restart: Quickly resumes operation after power interruptions, minimizing downtime and maintaining comfort.
• High Pressure Protection: Equipped with high-pressure safeguards to protect the system from anomalies, ensuring reliability and safe operation.
• INVERTER-Driven Compressor: Adjusts the compressor speed according to cooling demand, enhancing energy efficiency and maintaining stable temperatures.
• Low Ambient Cooling: Supports cooling down to -40°F with the addition of wind baffles, making it suitable for a variety of climates.
• Pre-Charged Refrigerant: The unit is pre-charged with refrigerant for specific line lengths, simplifying installation and reducing setup time.
• Seacoast Protection: Features a robust anti-corrosion system, including a treated heat exchanger coil and coated external panels, rated for 2,000 hours under ASTM B117 testing, ensuring durability in coastal environments.
• Superior Energy and Operational Efficiency: Designed to deliver top-tier performance while minimizing energy consumption and reducing operational costs.

Specifications:

• Cooling Capacity at 95°F:
  • Maximum Capacity: 24,000 BTU/h
  • Rated Capacity: 21,800 BTU/h
  • Minimum Capacity: 9,800 BTU/h
• Power Consumption:
  • Maximum Power Input: 2,120 W
  • Rated Power Input: 1,810 W
• Moisture Removal: 4 pints/h
• Energy Efficiency Ratings:
  • SEER2: 20.2
  • EER21: 12
• Electrical Requirements:
  • Voltage: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 264 V AC
  • Indoor-Outdoor Voltage (S1-S2): 208/230 V AC
  • Short-circuit Current Rating (SCCR): 5 kA
  • Recommended Outdoor Fuse/Breaker Size: 25 A
  • Recommended Wire Size (Indoor to Outdoor): 14 AWG
• Outdoor Unit Dimensions (W x D x H): 37-13/32 x 14 x 37-1/8 inches (950 x 355 x 943 mm)
• Outdoor Unit Weight: 155 lbs (70 kg)

The PUY-AH24NL outdoor unit is designed to offer efficient and reliable cooling and heating for ceiling-suspended systems, delivering superior performance and durability for a wide range of applications.
