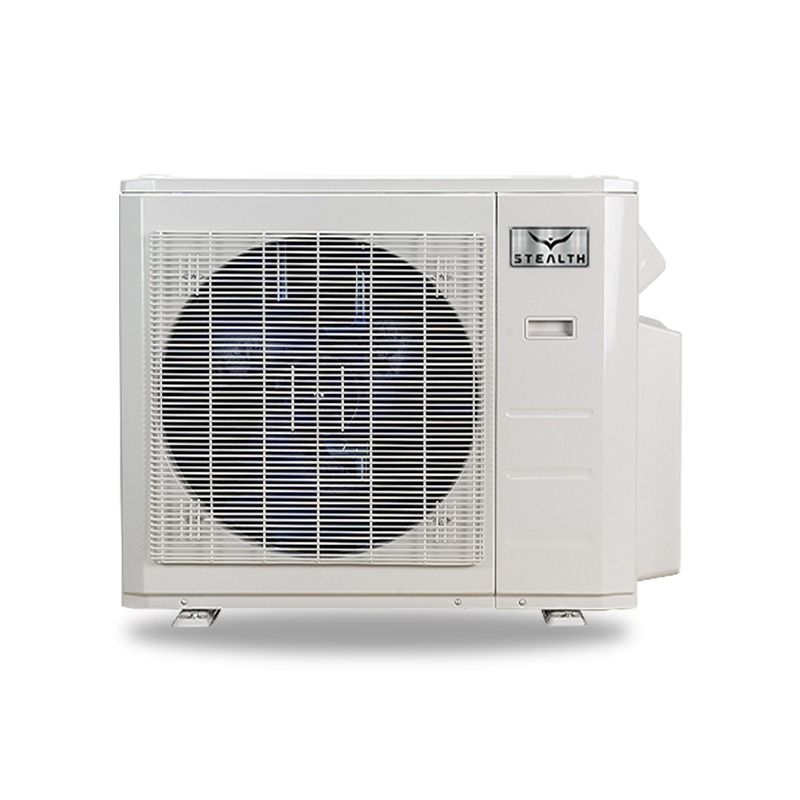

24,000 BTU Stealth DIYCOOL Single Zone Mini Split Heat Pump Condenser – R454B | 230V

SAVE $862.02
In Stock - 99 Ready to Ship
Free Shipping
By

Stealth

In stock
Model

EZ-24Z-HP230B

ID

209103

Was $2,049.99 Your Low Price Special Price $1,187.97

  • EZ Connect installation
  • Includes features such as timer mode, refrigerant leakage detection, and more
  • Smart Controls that work with your favorite devices.
  • R-454B refrigerant
  • Perfect for rooms up to 1,500 sqft
  • SEER2: 18.9
  • >

Enjoy powerful, year-round comfort with a high-performance outdoor condenser designed for easy installation and dependable operation.

The Stealth DIYCOOL Series 24,000 BTU Single Zone Mini Split Heat Pump Condenser is engineered to deliver reliable heating and cooling for spaces up to 1,500 square feet. Operating on 230V power and utilizing environmentally friendly R-454B refrigerant, this outdoor condenser provides energy-efficient performance throughout the year. Featuring an EZ Connect installation system, it helps simplify setup while pairing seamlessly with compatible Stealth DIYCOOL Series wall-mounted indoor air handlers to create an efficient single-zone comfort solution.

Key Features

  • EZ Connect Installation — Designed with a quick-connect system to help streamline installation and reduce setup time.
  • High-Capacity Heat Pump Performance — Provides dependable heating and cooling for year-round comfort in living rooms, open-concept spaces, additions, and other areas up to 1,100 sq. ft.
  • Eco-Friendly R-454B Refrigerant — Utilizes next-generation refrigerant to deliver efficient operation while reducing environmental impact.
  • Quiet, Durable Outdoor Unit — Engineered for low-noise performance and long-lasting reliability in a variety of weather conditions.
  • Compatible Single-Zone System — Designed to pair with compatible Stealth DIYCOOL Series wall-mounted indoor air handlers for a complete single-zone heating and cooling system.

Warranty

Stealth offers a limited warranty of 7-Year Compressor / 5-Year Parts Warranty when installed according to manufacturer guidelines.

More Information
24,000 BTU Stealth DIYCOOL Single Zone Mini Split Heat Pump Condenser – R454B | 230V
FeatureSpec
SKUEZ-24Z-HP230B
Refrigerant Charge3.15 lbs (Pre-Charged for 25ft Line Set)
Weight (in lbs)117.73
AHRI Certificate Number216980888
Brand/ManufacturerStealth
UPC605468310205
Cooling BTU24,000 BTU
Heating BTU25,000 BTU
Decibel Level (dBA)56 dBA
RefrigerantR454B
HSPF28.7
SEER2 (Efficiency)18.9
EER29.7
Liquid Line3/8"
Suction Line5/8"
Electrical208/230V | 1 Phase | 60Hz
Max Breaker Size25 Amps
Min. Breaker Size24 Amps
BTU/Tonnage24,000 BTU/2 Ton
Min/Max Outdoor Temp for Heating-13°F - 122°F
Min/Max Outdoor Temp for Cooling-13°F - 122°F
Zone CompatibilitySingle Zone
Height26.5"
Width35.04"
Depth13.46"
Warranty7 Year Compressor / 5 Years Parts Warranty with Online Registration
Resources You will need Adobe‚ Acrobat‚ Reader to view PDF documents
Safety InformationPROPOSITION 65 WARNING
