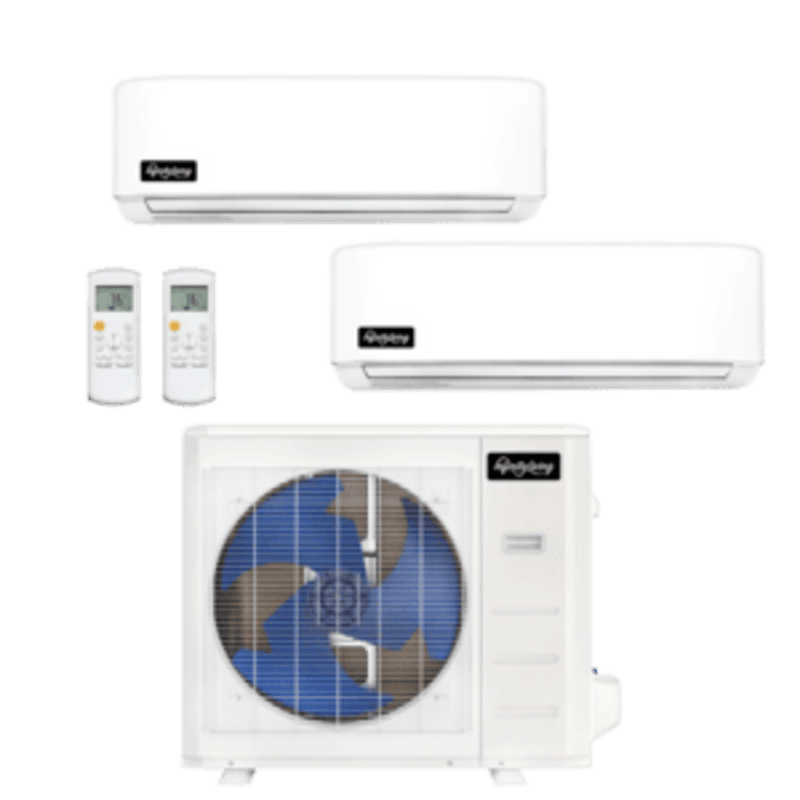

27,000 BTU Infinity Living DIYCOOL 23 SEER2 Dual Zone Mini Split Wall Mount Heat Pump System R454B | 230V - 9 + 9
Required Fields *
By
Infinity Living
In stock
Model
EZ-27Z-M3B / EZ-09W-MB-2
ID
210864
In Stock - 147 Ready to Ship
Was $4,960.18
Your Low Price $2,935.99
Free Shipping
Product Features
- Do-It-Yourself Installation
- SEER2 Rating 23
- 27,000 BTU
- Perfect for two rooms up to 250-400 sqft
- R454B Refrigerant
- days
- Hours
- Minutes
- Seconds
EZ-27Z-M3B / EZ-09W-MB / EZ-09W-MB 27,000 BTU Infinity Living DIYCOOL Multi Zone Mini Split Heat Pump System
The EZ-27Z-M3B Multi-Zone Mini Split Heat Pump System delivers 27,000 BTU of efficient heating and cooling with DIYCOOL technology and eco-friendly R454B refrigerant. Designed for multi-zone applications, this system provides comfort for up to 4 zones with quiet operation and energy-efficient performance.
Key Features
- Compressor Type: Rotary, Model KTM240D46UKT2
- Outdoor Airflow: 2130.7 CFM
- Outdoor Noise Level: 61 dBA
- Refrigerant: R454B with 620 mL VG74 oil charge
- Power Supply: 208/230V, 60Hz, 1 Phase
- Efficiency Ratings: SEER2 23.0, HSPF2-4 9.5, EER2 12.0, COP 3.4
- Cooling Capacity: 26,000 Btu/hr nominal, 7,200 ~ 32,000 Btu/hr range
- Heating Capacity: 8,400 ~ 29,000 Btu/hr; Max at 5°F: 18,200 Btu/hr
Dimensions & Weight
- Outdoor Unit (W×D×H): 37.24 x 16.14 x 31.89 in (946 x 410 x 810 mm)
- Package (W×D×H): 42.91 x 19.69 x 34.84 in (1090 x 500 x 885 mm)
- Net / Gross Weight: 140.21 / 151.02 lbs (63.6 / 68.5 kg)
Refrigerant Piping Specifications
- Liquid Pipe Size: 4 x 6.35 mm (1/4 in)
- Gas Pipe Size: 4 x 9.52 mm (3/8 in)
- Additional Refrigerant Charge: 0.16 oz/ft (15 g/m)
Performance & Operating Range
- Cooling System Power Input: 2167 W (500 ~ 2780 W)
- Heating System Power Input: 2241 W (500 ~ 2440 W)
- Standard Operating Range: -13 ~ 122°F (-25 ~ 50°C) Cooling, -13 ~ 75°F (-25 ~ 24°C) Heating
- Max Piping Length for all rooms: 221.4 ft / 67.5 m
- Max Piping Length for one IDU: 73.8 ft / 22.5 m
Installation & Connectivity
- Connection Method: Connector
- Max Height Difference IDU to ODU: 32.8 ft / 10 m
- Outdoor Throttle Type: EXV
The EZ-27Z-M3B Multi-Zone Mini Split Heat Pump System combines high-efficiency performance, quiet operation, and smart DIYCOOL installation for multi-zone comfort using eco-friendly R454B refrigerant. These bundles require the purchase of a Pre-Charged Line Set, these are not included.
27,000 BTU Infinity Living DIYCOOL Multi-Zone Mini Split Heat Pump Condenser - R454B | 230V
Coming in as one of the first brands to offer a multi zone DIY mini split, Infinity Living offers the EZ-27Z-M3B condenser for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective.
Key Features
- EZ-Connect Installation: Comes pre-charged with R-454B refrigerant and EZ line sets, making it possible for a certified-free installation without vacuum pumps or special tools.
- Multi-Zone Flexibility: Supports up to four zones of varying BTU capacities, allowing tailored climate control in each zone.
- Energy Efficiency: A SEER2 rating of 23 & HSPF2-2 rating of 9.5
- Smart Home Integration: Wi-Fi compatibility allows control via your favorite smart devices.
When paired with Infinity Living's easy-install pre-charged line sets and air handlers, the EZ-27Z-M3B is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.
9,000 BTU Infinity Living DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V
Enhance your space with Infinity Living’s 09k BTU wall-mounted air handler. This versatile unit is compatible with both Infinity Living Platinum Single Zone systems and Infinity Living Multi Zone systems, offering flexibility for various setups. Equipped with Infinity Living's innovative EZ Connect technology, this air handler allows for a seamless, straightforward installation, perfect for DIY enthusiasts. Additionally, it’s compatible with Wi-Fi through our app, allowing you to control your climate settings conveniently from your smartphone. Whether for heating or cooling, this powerful unit consistently delivers comfort tailored to your needs.
Key Features:
- High Efficiency: Delivers a strong balance of comfort and energy savings with high SEER2 performance ratings.
- Smart Home Ready: Works with your favorite smart devices.
- Quiet Operation: Minimizes indoor noise for enhanced comfort and relaxation.
- Multiple Modes: Offers heating, cooling, dehumidification, and fan-only modes to adapt to varying climate needs.
- Compact Wall-Mount Design: Saves space while delivering effective room-wide air circulation.
Infinity Living 35' EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers – R454B
The Infinity Living EZ Connect DIYCool Line sets are designed for effortless installation and outstanding performance in your HVAC system. Specifically tailored for the EZ Connect series, this line set comes packaged with a reinforced control wire, ensuring a secure and durable connection. The DIYCool technology simplifies the installation process, allowing you to set up your system without the need for specialized tools or professional assistance. Engineered to withstand wear and environmental factors, this line set offers long-lasting reliability, making it a perfect fit for your Infinity Living setup.
Infinity Living 50' EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers – R454B
The Infinity Living EZ Connect DIYCool Line sets are designed for effortless installation and outstanding performance in your HVAC system. Specifically tailored for the EZ Connect series, this line set comes packaged with a reinforced control wire, ensuring a secure and durable connection. The DIYCool technology simplifies the installation process, allowing you to set up your system without the need for specialized tools or professional assistance. Engineered to withstand wear and environmental factors, this line set offers long-lasting reliability, making it a perfect fit for your Infinity Living setup.
Infinity Living 25' EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers - R454B
The Infinity Living EZ Connect DIYCool Line sets are designed for effortless installation and outstanding performance in your HVAC system. Specifically tailored for the EZ Connect series, this line set comes packaged with a reinforced control wire, ensuring a secure and durable connection. The DIYCool technology simplifies the installation process, allowing you to set up your system without the need for specialized tools or professional assistance. Engineered to withstand wear and environmental factors, this line set offers long-lasting reliability, making it a perfect fit for your Infinity Living setup.
Wall Mount Bracket for Mini Split Systems
This wall mount bracket is perfect for outdoor mini split condensers. The length of the the wall bracket arms are 17” long. The condensing unit is mounted onto the L-shaped brackets and fastened using the bolts and anti-vibration washers provided.
Features:- 17” Arm Length
- Weight capacity of 220 lbs per arm
- Bolts and anti-vibration washers included
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 1/2" x 6' Electrical Whip – SKU: 84136
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
| 27,000 BTU Infinity Living DIYCOOL Multi-Zone Mini Split Heat Pump Condenser - R454B | 230V | |
|---|---|
| SKU | EZ-27Z-M3B |
| Weight | 140.210000 |
| Manufacturer | Infinity Living |
| Replaces | EZ-27Z-M3 |
| HSPF2 | 9.5 |
| Cooling BTU | 26,000 |
| Heating BTU | 26,000 |
| Decibel Level (dBA) | 61 |
| Refrigerant | R454B |
| SEER2 | 23 |
| Compressor Type | Rotary |
| Liquid Line | 1/4 |
| Suction Line | 3/8 |
| Liquid Valve Size | 1/4 |
| Suction Valve Size | 3/8 |
| Electrical | 208/230 |
| Max Breaker Size | 25 |
| Min. Breaker Size | 23 |
| BTU/Tonnage | 27,000 BTU/2.25 Ton |
| Zone Compatibility | Multi Zone |
| Height | 31.89 |
| Width | 37.24 |
| Depth | 16.14 |
| Warranty | 7 Year Compressor/5 Year Parts Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 9,000 BTU Infinity Living DIYCOOL Multi-Zone Wall Mount Mini Split Air Handler - R454B | 230V | |
| SKU | EZ-09W-MB |
| Weight | 24.470000 |
| Manufacturer | Infinity Living |
| Refrigerant | R454B |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Multi Zone |
| Height | 11.69 |
| Width | 31.57 |
| Depth | 7.44 |
| Warranty | 7 Year Compressor / 5 Year Parts Warranty with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Infinity Living 35' EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers – R454B | |
| SKU | EZ-35-1412-MB |
| Weight | 20.000000 |
| Manufacturer | Infinity Living |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 230 V. 1 Phase 60 Hz |
| Mini Split Type | Wall Mounted |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Infinity Living 50' EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers – R454B | |
| SKU | EZ-50-1412-MB |
| Weight | 20.000000 |
| Manufacturer | Infinity Living |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 230 V. 1 Phase 60 Hz |
| Mini Split Type | Wall Mounted |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Infinity Living 25' EZ Connect DIYCOOL Line Set for 9k, 12k, 18k Air Handlers - R454B | |
| SKU | EZ-25-1412-MB |
| Weight | 30.000000 |
| Manufacturer | Infinity Living |
| Refrigerant | R454B |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 230 V. 1 Phase 60 Hz |
| Mini Split Type | Wall Mounted |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Wall Mount Bracket for Mini Split Systems | |
| SKU | HW-600 |
| Weight | 9.200000 |
| Manufacturer | Online Supply |
| Length | 17" |
| Height | 20" |
| Width | 6" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Installation Kit for Condensers - Accessory Set | |
| SKU | MSK001 |
| Weight | 15.000000 |
| Manufacturer | Online Supply |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
