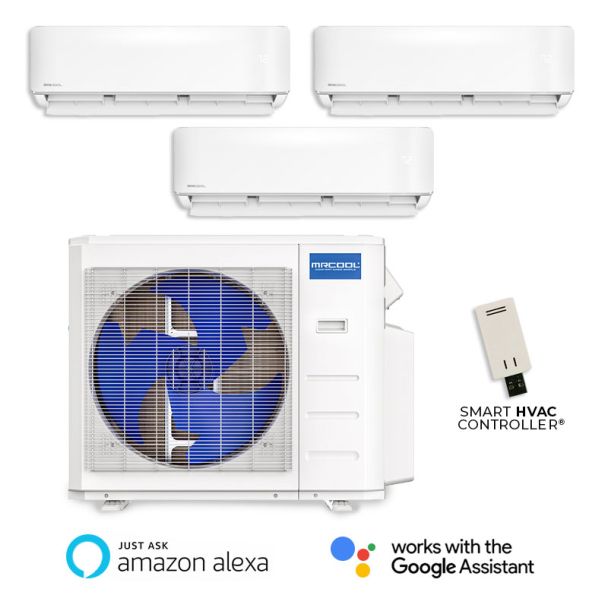

27,000 BTU MRCOOL DIY 4th Gen Tri Zone Wall Mount Mini Split Heat Pump System R410A | 230V 9 + 12 + 12
Required Fields *
By
MRCOOL
In stock
Model
DIY-MULTI3-27HP230C / 2-DIY-12-HP-WMAH-230C25 / DIY-09-HP-230C25
ID
216995
Rating:
100% of 100
ONLY 8 LEFT!
Was $7,121.59
Your Low Price $3,069.97
Â
Free Shipping
- days
- Hours
- Minutes
- Seconds
Other Popular Systems
Infinity Living Design Your Own Tri Zone Heat Pump System
Was $5,245.74
Special Price $1,649.97
Infinity Living DIYCOOL Design Your Own Tri Zone Heat Pump System R454B
Was $3,212.68
Special Price $2,110.99
27,000 BTU Infinity Living DIYCOOL 23 SEER2 Tri Zone Mini Split Wall Mount Heat Pump System R454B | 230V - 9 + 9 + 9
Was $5,866.43
Special Price $3,380.99
27,000 BTU Infinity Living DIYCOOL 23 SEER2 Tri Zone Mini Split Wall Mount Heat Pump System R454B | 230V - 9 + 9 + 12
Was $5,907.68
Special Price $3,599.99
27,000 BTU MRCOOL DIY 4th Gen 21.8 SEER2 Tri Zone Wall Mount Mini Split Heat Pump System | R-454B | 230V 9 + 12 + 12
The MRCOOL DIY 4th Generation 27,000 BTU Tri Zone Wall Mount Mini Split Heat Pump System delivers efficient heating and cooling for up to 3 zones, making it perfect for providing customizable comfort throughout your home or office.
Equipped with a high-efficiency 21.8 SEER2 rating and environmentally friendly R454B refrigerant, this system ensures energy savings while reducing environmental impact. The wall-mount indoor units offer space-saving installation and quiet operation for a comfortable and unobtrusive experience.
Key Features
- Tri Zone Independent Control: Set heating and cooling preferences for each room individually.
- Wall-Mount Indoor Units: Compact design with optimal airflow for consistent comfort.
- High Energy Efficiency: 21.8 SEER2 rating reduces energy consumption and operating costs.
- Smart Home Compatible: Works with MRCOOL SmartHVAC app and supports voice control via Alexa and Google Assistant.
- Quiet Operation: Low noise levels ensure a peaceful indoor environment.
- Eco-Friendly Refrigerant: Uses R454B for safe and efficient cooling and heating.
System Components
- Outdoor Unit: 27,000 BTU inverter-driven multi-zone condenser built for reliable performance.
- Remote Controls: Individual remotes for each indoor unit for precise temperature control.
Applications
Ideal for residential or small commercial spaces that need efficient, multi-zone heating and cooling. Perfect for living rooms, bedrooms, offices, or small conference areas. Pre-Charged Line Set required, sold separately.
MRCOOL DIY 4th Gen 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi-R410AIntelligent Comfort Whenever You Need It
A DIY Installation Built to Last
OVERVIEW
Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-09-HP-WMAH-230C25 wall mounted air handler for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-09-HP-WMAH-230C25.
FEATURES
- 9,000 BTU multi zone DIY wall mounted air handler
- Generally suitable to cover a small room in ideal climates
- Direct-from-manufacturer customer technical support available for all MRCOOL DIY units
- 100% sealed and pre-charged system when installed with the right accessories
- Energy Star certified
9,000 BTU
With a rated output of 9,000 BTU, the MRCOOL DIY-09-HP-WMAH-230C25 wall mounted air handler can generally heat and cool a small room in ideal climates. Please note that in order to function, this air handler must be installed with a compatible condenser, controllers, MRCOOL precharged line sets, and other installation equipment, available at an additional cost. If you have any questions, please do not hesitate to contact us for details.
Warranty
MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.
With MRCOOL's WiFi compatibility built-in to each DIY air handler, you can control your home's comfort from anywhere in the world that you have Internet—across town or across the world. This WiFi is easily set up, further improving the ease of this unit's installation.
When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-09-HP-WMAH-230C25 is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.
MRCOOL DIY 4th Gen 12,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi-R410AIntelligent Comfort Whenever You Need It
A DIY Installation Built to Last
OVERVIEW
Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY-12-HP-WMAH-230B wall mounted air handler for use in almost any installation need while providing a simple installation process. When paired with the proper installation materials, installation is fast, convenient, and cost-effective with MRCOOL’s DIY-12-HP-WMAH-230B.
FEATURES
- 12,000 BTU multi zone DIY wall mounted air handler
- Generally suitable to cover a small room in ideal climates
- Direct-from-manufacturer customer technical support available for all MRCOOL DIY units
- 100% sealed and pre-charged system when installed with the right accessories
- Energy Star certified
12,000 BTU
With a rated output of 12,000 BTU, the MRCOOL DIY-12-HP-WMAH-230B wall mounted air handler can generally heat and cool a small room in ideal climates. Please note that in order to function, this air handler must be installed with a compatible condenser, controllers, MRCOOL precharged line sets, and other installation equipment, available at an additional cost. If you have any questions, please do not hesitate to contact us for details.
Warranty
MRCOOL offers a 5 year parts and 7 year compressor warranty on their multi zone DIY units when installed following the installation instructions and registered online through the manufacturer.
With MRCOOL's WiFi compatibility built-in to each DIY air handler, you can control your home's comfort from anywhere in the world that you have Internet—across town or across the world. This WiFi is easily set up, further improving the ease of this unit's installation.
When paired with MRCOOL's easy-install precharged line sets and air handlers, the DIY-12-HP-WMAH-230B is installation ready for almost any wall-mounted application. With no need to evacuate the line sets or add refrigerant, this unit can support multi-room heating and cooling without the expensive labor cost of a regular mini split. With this major obstacle out of the way, you will only need to follow the instructions for the unit and hard wire the condenser to power.
MRCOOL DIY 4th Gen Multi-Zone 3-Zone Condenser - R-410A
DIY-MULTI3-27HP230C MrCool DIY® 4th Generation Multi-Zone 27,000 BTU Condenser — 230V
Product Overview
The MrCool DIY® 4th Generation 27,000 BTU Multi-Zone Condenser is designed to deliver efficient heating and cooling for up to three zones. Operating on 230V power, this outdoor unit pairs with compatible indoor air handlers to provide inverter-driven performance, quiet operation, and durable weather protection. With its DIY-friendly installation, it offers a reliable and cost-effective solution for customized multi-zone climate control.
Key Features
- Capacity: 27,000 BTU/h to support up to three zones
- Inverter compressor technology for precise temperature control and energy efficiency
- DIY installation with pre-charged refrigerant and quick-connect fittings
- Smart control compatibility for remote operation and monitoring
- Gold Fin® condenser coating for enhanced corrosion resistance
- Low ambient heating capability with automatic defrost functionality
- Quiet design suitable for residential and light commercial use
Performance & Coverage
Perfect for mid-sized applications, this condenser ensures year-round comfort with consistent heating and cooling. The inverter system adjusts output to match demand, improving comfort while lowering energy consumption.
Specifications
- Power supply: 230V, single-phase, 60Hz
- Refrigerant: R-410A, pre-charged
- Liquid line size: 1/4"
- Gas line size: 1/2"
- Maximum number of zones: 3
- SEER2 rating: Up to 22
- Heating performance down to: -13°F
Installation Benefits
- Pre-charged refrigerant and quick-connect fittings simplify installation
- Single-phase 230V power supply requirement
- Accessible service panels for easier maintenance
- Durable outdoor construction with Gold Fin® protection
Why Choose This Model?
The DIY-MULTI3-27HP230C is an excellent choice for homeowners seeking a dependable, energy-efficient multi-zone HVAC system with easy DIY installation and smart control options.
MRCOOL DIY 16' Quick Connect Line Set for 9k, 12k, and 18k Air Handlers-R410A
Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY16-1412 as a means of coupling two of MRCOOL's precharged line sets together to allow for a longer line for installations that need it, all the while keeping the system precharged in nature. This coupler furthers MRCOOL's ability to provide a simple DIY installation to almost any wall mounted installation. Please note that this line set will only function with MRCOOL's DIY multi zone line of products and will not function with any other brand or system series.
MRCOOL DIY 25' Quick Connect Line Set for 9k, 12k, and 18k Air Handlers-R410A
Coming in as one of the first brands to offer a multi zone DIY mini split, MRCOOL offers the DIY25-1412 as a means of coupling two of MRCOOL's precharged line sets together to allow for a longer line for installations that need it, all the while keeping the system precharged in nature. This coupler furthers MRCOOL's ability to provide a simple DIY installation to almost any wall mounted installation. Please note that this line set will only function with MRCOOL's DIY multi zone line of products and will not function with any other brand or system series.
| MRCOOL DIY 4th Gen 9,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi-R410A | |
|---|---|
| SKU | DIY-09-HP-WMAH-230C25 |
| Weight | 23.800000 |
| Manufacturer | MRCOOL |
| Product Features | Quick Connect, WiFi |
| Cooling BTU | 9,000 BTU |
| Heating BTU | 9,000 BTU |
| Decibel Level (dBA) | 25-40 |
| Refrigerant | R410A |
| SEER | 22 |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230 V. 1 Phase 60 Hz |
| Max Breaker Size | 15 |
| Min. Breaker Size | 3 |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Wall Mounted |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 5-year Parts / 7-year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL DIY 4th Gen 12,000 BTU Multi-Zone Wall Mounted Air Handler with Enhanced WiFi-R410A | |
| SKU | DIY-12-HP-WMAH-230C25 |
| Weight | 23.600000 |
| Manufacturer | MRCOOL |
| Product Features | Quick Connect, WiFi |
| Cooling BTU | 12,000 BTU |
| Heating BTU | 12,000 BTU |
| Refrigerant | R410A |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208/230 V. 1 Phase 60 Hz |
| Max Breaker Size | 15 Amps |
| Min. Breaker Size | 3 Amps |
| BTU/Tonnage | 12,000 BTU/1 Ton |
| Mini Split Type | Wall Mounted |
| Height | 11.69" |
| Width | 31.57" |
| Depth | 7.44" |
| Warranty | 5-year Parts / 7-year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL DIY 4th Gen Multi-Zone 3-Zone Condenser - R-410A | |
| SKU | DIY-MULTI3-27HP230C |
| Weight | 157.190000 |
| Manufacturer | MRCOOL |
| Cooling BTU | 27,000 BTU |
| Heating BTU | 27,000 BTU |
| Approximate Heating Area | 1,000 - 1,500 Sq Ft |
| Decibel Level (dBA) | 61 dBA |
| Energy Star | No |
| Refrigerant | R410A |
| SEER2 | 22 |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 208-230V | 1 Phase | 60Hz |
| Amperage Requirement | 40 Amps |
| Zone Compatibility | Multi Zone |
| Operating Mode | Cooling, Heating |
| Height | 31.89" |
| Width | 37.24" |
| Depth | 16.14" |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Resources | You will need Adobe Acrobat Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL DIY 16' Quick Connect Line Set for 9k, 12k, and 18k Air Handlers-R410A | |
| SKU | DIY16-1412 |
| Weight | 20.000000 |
| Manufacturer | MRCOOL |
| Refrigerant | R410A |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 230 V. 1 Phase 60 Hz |
| Mini Split Type | Wall Mounted |
| Warranty | 5-year Parts / 7-year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| MRCOOL DIY 25' Quick Connect Line Set for 9k, 12k, and 18k Air Handlers-R410A | |
| SKU | DIY25-1412 |
| Weight | 30.000000 |
| Manufacturer | MRCOOL |
| Refrigerant | R410A |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 230 V. 1 Phase 60 Hz |
| Mini Split Type | Wall Mounted |
| Warranty | 5-year Parts / 7-year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| DIY 4th Generation 35ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor | |
| SKU | DIY35-1412C |
| Weight | 20.000000 |
| Manufacturer | MRCOOL |
| Refrigerant | R410A |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 230 V. 1 Phase 60 Hz |
| Mini Split Type | Wall Mounted |
| Warranty | 5-year Parts / 7-year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| DIY 4th Generation 50ft 1/4 x 1/2 Lineset for DIY 9K, 12K & 18K Indoor | |
| SKU | DIY50-1412C |
| Weight | 20.000000 |
| Manufacturer | MRCOOL |
| Refrigerant | R410A |
| Liquid Line | 1/4" |
| Suction Line | 1/2" |
| Electrical | 230 V. 1 Phase 60 Hz |
| Mini Split Type | Wall Mounted |
| Warranty | 5-year Parts / 7-year Compressor |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
