Today's Hours 8am - 11pm est3 Inch Horizontal Hot Dawg Vent Kit
Required Fields *
Customer reviews
Call for Availability
By
Z-Flex
In stock
Model
2svepwcf0301 / 2svepwcf0302 / 2svsahd03 / 2svsttf03 / 2svwt03
ID
158899
Was $394.43
Your Low Price $213.86
This kit contains the components you need all in one box. This simple kit includes a variety of 3-inch Horizontal Vent Kit for Modine Hot Dawg Models.
This kit includes:
- (1) 3 Inch x 1 Ft. Z-Vent Single Wall Pipe (2svepwcf0301)
- (1) 3 Inch x 2 Ft. Z-Vent Single Wall Pipe (2svepwcf0302)
- (1) 3 Inch Z-Vent Modine Hot Dawg Adapter (2svsahd03)
- (1) 3 Inch Z-Vent Horizontal Termination Tee (2svsttf03)
- (1) 3 Inch Z-Vent Adjustable Wall Thimble (2svwt03)
Z-Vent Features:
- Gasketed connections
- No sealant required, no cure time, or no call backs
- Air tight seam, smooth finish, better fit
- Metallic special gas vent cut to length on site
- Highest pressure rating in the industry greater than five time the industry standard

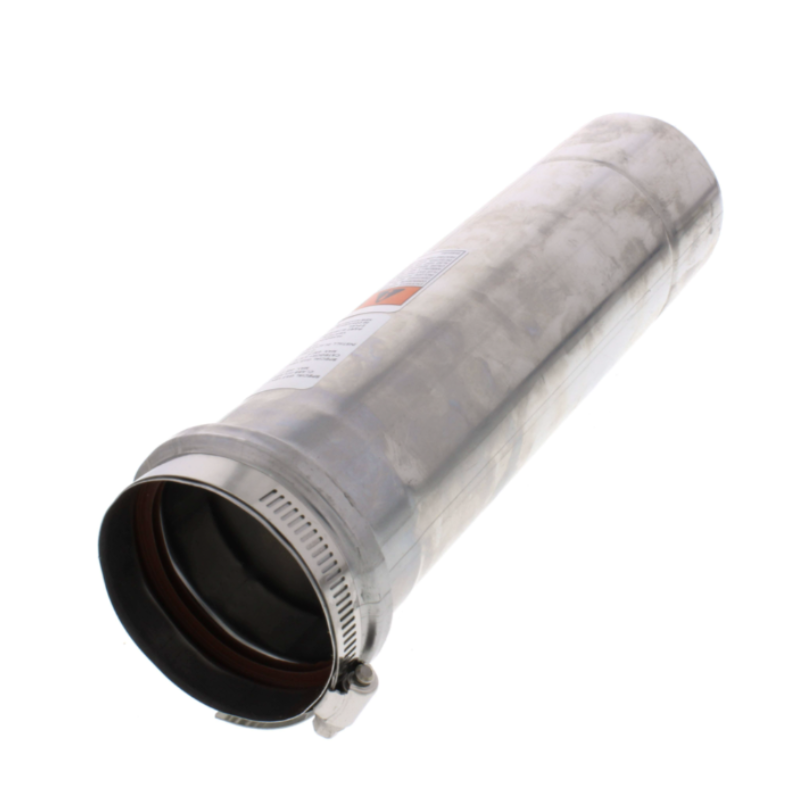

Z-Flex 3 Inch x 1 Ft. Z-Vent Single Wall Pipe
This Z-Vent Single Wall Pipe has a silicon gasket and integral gear clamp on the female end, the male end can be cut to size with a hacksaw.
Z-Flex 3 Inch x 2 Ft. Z-Vent Single Wall Pipe
This Z-Vent Single Wall Pipe has a silicon gasket and integral gear clamp on the female end, the male end can be cut to size with a hacksaw.
- Air tight seam
- Gasketed connections
- No sealant required
- High pressure rating
3 Inch Z-Flex Modine Hot Dawg Adapter
The Z-Vent 2svsahd03 is a 3-Inch Modine Hot Dawg Adapter. It is suitable for both positive and negative pressure applications.
- Material: Inner and outer wall constructed from AL29-4C stainless steel
- Diameter: 3 inches
- Pressure rating: Positive and negative
- Application: Can be used with flat roof or chimney applications
- Simple gasketed connection - no sealant needed
- Highest pressure rating in the industry
- Compatible with all types of Z-Flex Z-Vent
- Factory-built and engineered for durability and performance

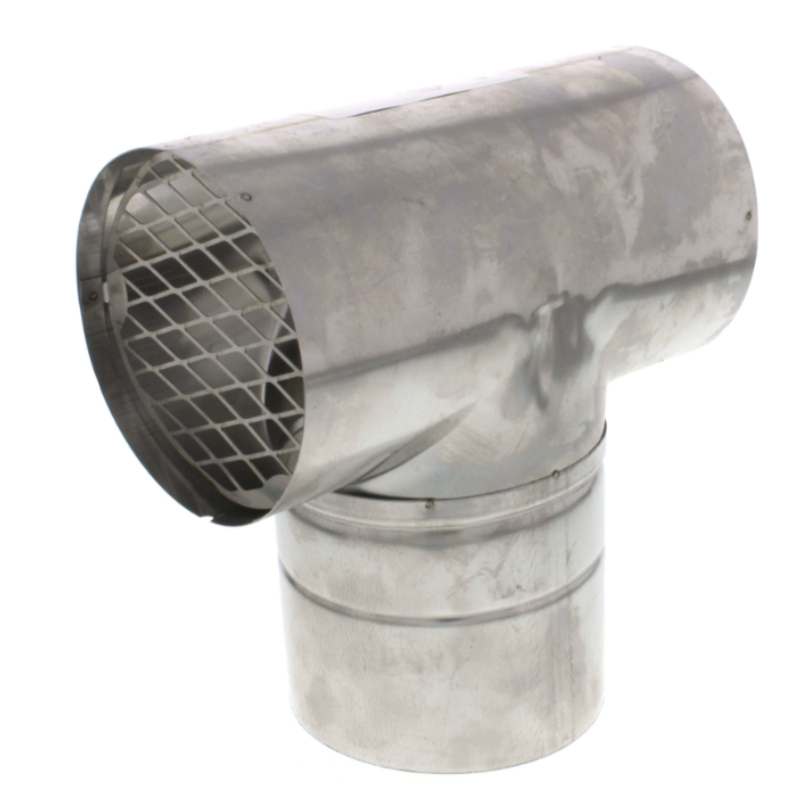

3 Inch Z-Flex Horizontal Termination Tee
The Z-Vent 2svsttf03 is a 3-inch horizontal termination tee fitting made from stainless steel. This termination tee can be used as either an intake or an exhaust piece. It has a bird screen to keep animals out of your exhaust system.
- Material: Stainless steel
- Size: 3 inches
- Tee openings can be positioned up and down or left to right.
3 Inch Z-Flex Adjustable Wall Thimble
The 3-inch wall thimble is used for many single wall pipe, horizontal vent exhaust applications. This 3-inch wall thimble is a rigid pipe, using Category III Stainless Steel. The 3-inch wall thimble is adjustable from 4" to 7" and has dimensions of 8" x 8".
- Material: Category III stainless steel
- Size: 3-inch diameter, adjustable from 4" to 7" wall thickness
