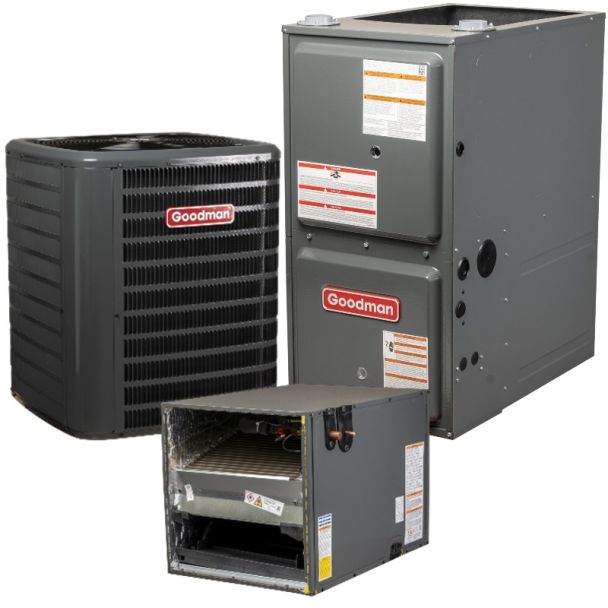

3 Ton 15.2 SEER2 96% AFUE 100,000 BTU Goodman Gas Furnace and Air Conditioner System - Horizontal
Required Fields *
By
Goodman
In stock
Model
GLXS5BA3610 / CHPTA4830C3 / GD9T961005CN
ID
178277
ONLY 7 LEFT!
Was $2,980.00
Your Low Price $2,682.00
Free Shipping
Requires: Plastic / PVC Flue Vent Piping
- days
- Hours
- Minutes
- Seconds
A Goodman combination system is a great choice to keep your home comfortable all season long. With tons of extra features and a great price, a Goodman furnace and air conditioning system is the perfect choice for all of your heating and cooling needs.
Goodman 96% 100,000 BTU Two Stage Gas Furnace - 21" Width - Downflow / Horizontal
OVERVIEW
The Goodman brand consistently brings efficiency and other cost-saving benefits and technology to their furnace. The GC9C961005CN gas furnace is no exception to Goodman's ingenuity in design, bringing you comfort at a high efficiency for any downflow or horizontal application.
QUICK FACTS
- This furnace is ideal to heat a medium to large house (depending on climate)
- 100,000 BTU 96% AFUE natural gas furnace
- Requires plastic/PVC flue venting
- Complies with Clean Air Act New Refrigerant Requirements
- Can be used in the downflow or horizontal orientation
- Can be converted to an LP furnace with an optional conversion kit (sold separately)
- Innovative design for electrical efficiency, safety, and lower sound output
100,000 BTU
Heating up to a medium to large house in average environmental conditions, the GD9T961005CN Goodman furnace has an input of 100,000 BTU's and an output of 96,000 BTU's (input X efficiency rating = output).
96% AFUE
The GD9T961005CN gas furnace is 96% efficient. This efficiency means that 4% of the fuel going into the furnace is lost out of the flue venting, while 96% of the fuel is actually used to heat your home. As a condensing furnace, this furnace will need to be vented with plastic or PVC flue venting. If you are looking for a furnace that requires metal flue venting, you would need an 80% efficient furnace.
Two Stage 9-Speed Furnace
With a two stage burner, the GD9T961005CN provides two heating outputs: one at a 60% heating output for warmer days and one at a 100% output for when you need the furnace most. The furnace also has a 9 speed ECM motor instead of an inefficient PSC motor. Both of these upgrades provide a better efficiency with a more stable output to better heat your home through all seasons of use.
Warranty
With installation that follows your state and local codes, the GD9T961005CN gas furnace comes with a 10-year parts and lifetime heat exchanger warranty when registered online through Goodman.
Durability and Reliability
The outer casing on the GD9T961005CN gas furnace is heavy-gauge steel with enhanced insulated for better protection and lower air leakage and sound output, providing more comfort to your home. The new hot surface ignitor replaces the standing pilot light for a more efficient startup.
Installation and Maintenance
The cost-saving benefits of the Goodman brand doesn't stop at efficiency. The GD9T961005CN Goodman furnace can be installed in either the downflow or horizontal orientation, making this furnace an ideal choice for multiple installation applications. Naturally, the GD9T961005CN comes with natural gas valves built in. However, increasing its installation potential, the GD9T961005CN can be field converted with the LP conversion kit (found here, for an extra fee) if you need it to be propane. Not only does the Goodman brand save you money on installation costs, but also with maintenance and warranty work. In the event of a rare warranty issue, the self-diagnostic control board alerts you and your serviceman what is wrong with the unit for most basic issues for a faster solution to almost any problem.
30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set
Line sets are the copper lines which connect an outdoor condensing unit/heat pump to an inside air handler or evaporator coil. Line sets are available in different lengths and diameters to fit most applications.
50 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set
Ensure optimal refrigerant flow and HVAC efficiency with this 50-foot insulated line set. Designed for a seamless connection between an outdoor condensing unit or heat pump and an indoor air handler or evaporator coil, this line set provides durability, flexibility, and superior thermal insulation for reliable system performance.
Key Features:
✔ Premium Copper Tubing: 3/8" liquid line (LL) and 7/8" suction line (SL) for efficient refrigerant transfer.
✔ Pre-Insulated for Efficiency: 3/8" thick insulation minimizes energy loss and condensation buildup.
✔ Versatile Application: Ideal for heat pumps and conventional split systems.
✔ Easy Installation: Flexible and durable copper tubing allows for smooth routing and secure connections.
✔ Extended 50-Foot Length: Perfect for larger residential and light commercial HVAC installations.
Upgrade your HVAC system with this high-quality insulated line set, designed for long-lasting performance and energy efficiency.
ACiQ Single-Stage Dual Powered Non-Programmable Thermostat
The ACiQ STN701 Single-Stage Dual Powered Non-Programmable Thermostat is a cost effective solution to temperature control! Designed with a bright blue backlight and large easy to read characters, ACiQ thermostats are easy to operate for all consumers.
- 1 Heat / 1 Cool Non-Programmable Thermostat
- Operable with AAA batteries or 24v power
- Large, easy to ready clear LCD display with different backlight color options
- Configurable with Electric or Gas Systems
- Separate B & O terminals
- Handles heating and cooling temperature swing adjustments separately
- Toggleable 5 minute compressor delay protection
- Temperature Range: 32°F-99°F (1°C-40°C)
- Temperature Accuracy: ±1.8°F (±1°C)
Ecobee Smart WiFi Thermostat with Alexa
The Ecobee is more than a smart thermostat. Most thermostats only read the temperature in one place (usually the hallway) which can make other rooms uncomfortable. Ecobee5 comes with a room sensor to help manage hot or cold spots. When you place sensors in your favorite rooms, ecobee5 can read the temperature and detect occupancy. That's how it ensures comfort in the rooms that matter.
With Amazon Alexa Voice Service built inside, ecobee5 can perform the many 'skills' that come with Alexa. All you have to do is ask, and watch the blue light pipe on top of the thermostat blink in response. For total hands-free control, it can even hear you from across the room. Imagine you’re throwing a last-minute dinner party. Simply ask your ecobee5 to walk you through each step out loud – from finding the right recipes to the ideal music playlist. ecobee5 has embedded microphones with far-field voice recognition and a speaker engineered for clear voice and full sound. It’s the smart thermostat that looks at home on your wall – that you can hear and speak to from across the room.
Features
Not at your thermostat? No problem.
Adjust temperature and comfort settings easily from the ecobee mobile app on your Android and iOS devices, including Apple Watch.
Connects to your existing home network
Convenient Wi-Fi capabilities offer a secure and reliable connection.
Knows you have a life
Vacationing and forgot to let your ecobee know? Make a vacation event using the ecobee mobile app. If something’s wrong with your equipment, we can send you service alerts and reminders.
Control the volume
If it's getting a little loud for your taste, you can use the app to adjust the volume.
Built to last
ecobee thermostats are hardwired, which means your thermostat isn’t relying on a battery or your HVAC equipment to charge itself.
ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible
Smarter Comfort. Sleek Control.
The ACiQ TL04-1 Smart Thermostat is engineered to bring precise, intelligent control to your home’s HVAC system. Compatible with both standard 24V wiring and HA & HB communication protocols, it delivers flexibility for new builds or system upgrades.
QUICK FACTS
- Dual Compatibility: Supports 24V systems and HA/HB non-polarity communication systems
- Control Options: Works with single and two-stage heating, cooling, and heat pump systems with auxiliary/emergency heat
- Modern Touchscreen: Auto-wake screen with responsive touch interface
- Clean Installation: Includes M-base, trim plate, wire labels, screws, and anchors
- Smart Safety: Built-in installation tips, safety reminders, and FCC/IC compliance
- Perfect for homeowners looking to upgrade their comfort with modern, intelligent technology
Santa Fe Ultra70 Whole House Dehumidifier - 110/120V - R454B (SKU 4044100)
The Santa Fe Ultra70 is a high-efficiency, ventilating dehumidifier designed to control excess humidity throughout your entire home. Capable of integrating directly with your HVAC system, this unit removes up to 70 pints of moisture per day and is ideal for spaces up to 1,800 square feet.
High Efficiency
The Ultra70 is the perfect dehumidifier for residential use, including low-clearance crawl spaces, basements, and whole-house applications. Drawing just 4.1 amps, this unit offers powerful moisture control with low energy consumption. It utilizes a MERV-13 filter—one of the most efficient in its class—and uses R454B refrigerant for a more environmentally responsible performance.
Versatile Applications
- Compact Design: Weighs just 55 lbs and measures only 12” wide, making it easy to place in tight spaces.
- Flexible Installation: Can be used as a free-standing unit or ducted into your home's HVAC system.
- Plug-in Ready: Includes a 9-foot power cord and plug-in wiring style for easy setup.
Industry Usage: Perfect for homes, apartments, and condominiums.
Operating Temperature Range: Effective in environments from 49°F to 95°F.
Bonus Features
- Auto Restart: Automatically resumes operation after a power outage.
- Advanced Control Panel: Includes a built-in dehumidistat for precise manual humidity control.
- Automatic Defrost: Prevents frost buildup in colder environments for uninterrupted performance.
Warranty
Santa Fe offers an industry-leading warranty to ensure long-term performance and peace of mind:
- 5-Year Warranty: Covers operational failures.
- 6-Year Warranty: Covers faulty components.
In the event of a malfunction, Santa Fe will repair or replace the unit. Please refer to the Owner’s Manual for full warranty details and terms.
Wall Mount Bracket for Condensers 48"
This wall mount bracket is perfect for outdoor condensers. The length of the the wall bracket arms are 48" long. The condensing unit is mounted onto the L-shaped brackets and fastened using bolts and anti-vibration washers (not included with brackets).
Features:
- Steel: 10 GA
- Powder-coated grey Finish
- Load rating: 600 lbs per pair
- Holes will accommodate anchors for installation
- Warranty: 1 year
- ACB line of wall brackets are approved by the Florida Building Commission and are High Velocity Hurricane Zone (HVHZ) approved. (See product certification documentation for complete details.)
No Return Policy
All sales of this product are final and are non-refundable.
E Lite Equipment Pad 36" x 36" x 3"
E Liteis a plastic pad designed as a mounting base for air conditioning condensers. The rugged design provides uniform and generous ribbing for optimum, self-leveling ground support without inserts. E Lite is injection molded from polypropylene, resulting in a pad that is lightweight, but not too light. A subtle texture prevents unit slide and presents a classic appearance, which is enhanced by rounded edges and a concrete gray color. Each pad is molded with its size in raised letters.
- High recycled plastic content
- Subtle texture resists unit slide
- Unaffected by UV or weather
- Uniform ribbing transfers load evenly
- Drillable for securing unit
- Lightweight, yet rugged
No Return Policy
All sales of this product are final and are non-refundable.
Installation Kit for Condensers - Accessory Set
Ensure a professional and secure installation for your condenser with this comprehensive installation kit. Designed to provide all the essential components needed for a smooth setup, this kit helps protect your system while ensuring proper electrical and refrigerant connections.
Key Features:
✔ All-in-One Kit: Includes key accessories for a professional-grade installation.
✔ Enhanced System Protection: Features a surge protector and disconnect safety switch for added safety.
✔ Reliable Electrical Connections: Comes with a whip and charging adapter to ensure proper power supply.
✔ Secure Wall Penetration: Telescoping wall sleeve protects and stabilizes refrigerant and electrical lines.
✔ HVAC Professional Recommended: Ideal for new installations and system replacements.
What’s Included:
- 1/2" x 6' Electrical Whip – SKU: 84136
- 60A Non-Fused Disconnect – SKU: 83335
- Surge Protector – SKU: ICM517
- CPS Charging Adapter – SKU: 87-AD87
- Telescoping Wall Sleeve – SKU: NFP-75
Equip your condenser with everything needed for a safe, durable, and professional installation. Order your Condenser Installation Kit today!
Propane (LP) Conversion Kit for Goodman GR9T96 and GD9T96 FurnacesThis propane (LP) conversion kit is for Goodman's GR9T96 and GD9T96 furnace series. Please note that this does NOT work for model GR9T960303AN; LPM-30 is the correct kit for this specific model.
| Goodman 96% 100,000 BTU Two Stage Gas Furnace - 21" Width - Downflow / Horizontal | |
|---|---|
| SKU | GD9T961005CN |
| Weight (in lbs) | 140.000000 |
| AHRI Certificate Number | 215225022 |
| Airflow Direction | Downflow/Horizontal |
| Exhaust Flue Requirement | Plastic / PVC |
| Brand/Manufacturer | Goodman |
| Product Features | New Refrigerant Compliant |
| Furnace Efficiency / AFUE | 96% |
| Heating BTU | 100,000 |
| Blower Motor | 9-Speed - ECM |
| Maximum CFM | 2000 |
| Configuration | Downflow/Horizontal |
| Energy Star | Yes |
| Electrical | 115 V. 1 Phase 60 Hz |
| Max Breaker Size | 25 Amps |
| Min. Breaker Size | 14.4 Amps |
| Burner Stages | Two |
| Fuel Type | Propane, Natural Gas |
| Height | 34.5" |
| Width | 21" |
| Depth | 28.75" |
| Warranty | Lifetime Heat Exchanger, 10 Years Unit Replacement, and 10 Years Parts with Online Registration |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information |
This gas appliance requires a trained technician to install. Improperly connecting gas lines or improperly connecting a gas flue or venting may result in death. By purchasing this item, you are agreeing that you are using a trained technician to install this gas appliance. We will not be responsible for any injury or property damage arising from improper service or service procedures. Whoever installs or services this unit assumes responsibility for any personal injury or property damage which may result. Many jurisdictions require a license to install this equipment.
PROPOSITION 65 WARNING This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 30 Feet of 3/8" LL x 3/4" SL x 3/8" Insulated Line Set | |
| SKU | LS38343830 |
| Weight (in lbs) | 35.000000 |
| Brand/Manufacturer | Online Supply |
| Liquid Line | 3/8" |
| Suction Line | 3/4" |
| Suction Line Insulation Thickness | 3/4" |
| Length | 30 feet |
| 50 Feet of 3/8" LL x 7/8" SL x 3/8" Insulated Line Set | |
| SKU | LS38783850 |
| Weight (in lbs) | 30.000000 |
| Brand/Manufacturer | Online Supply |
| Liquid Line | 3/8" |
| Suction Line | 7/8" |
| Suction Line Insulation Thickness | 3/4" |
| Length | 50 feet |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ Single-Stage Dual Powered Non-Programmable Thermostat | |
| SKU | STN701 |
| Weight (in lbs) | 1.000000 |
| Brand/Manufacturer | ACiQ |
| Product Features | Heat Pump Capable, Non Programmable, 1 Heat, 1 Cool |
| Resources | Braeburn Brochure
Braeburn User Guide |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ 7-Day Programmable Thermostat with WiFi | |
| SKU | STN855W |
| Weight (in lbs) | 1.000000 |
| Brand/Manufacturer | ACiQ |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Ecobee Smart WiFi Thermostat with Alexa | |
| SKU | EB-STATE6P-01 |
| Weight (in lbs) | 0.500000 |
| Brand/Manufacturer | ecobee |
| Product Features | Programmable, WiFi, Heat Pump Capable, 3 Heat, 2 Cool |
| Energy Star | Yes |
| Warranty | 3 years |
| Resources | |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| ACiQ TL04-1 Smart Thermostat – 24V & HA/HB Compatible | |
| SKU | TL04-1 |
| Weight (in lbs) | 0.700000 |
| Brand/Manufacturer | ACiQ |
| Product Features | Heat Pump Capable, Programmable, WiFi, 1 Heat, 2 Heat, 3 Heat, 1 Cool, 2 Cool |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Santa Fe Ultra70 Whole House Dehumidifier - 110/120V - R454B (SKU 4044100) | |
| SKU | UL3684 |
| Weight (in lbs) | 55.000000 |
| Brand/Manufacturer | Santa Fe |
| Additional Information | Residential Use: Whole House |
| Additional Information | Manufacturer-Suggested Room Size: 1800 sq. ft |
| Additional Information | Certifications: CSA, UL |
| Maximum CFM | 150 CFM |
| Decibel Level (dBA) | 55.3 dB |
| Square Foot | 1,500-1,999 |
| Energy Star | No |
| Refrigerant | R454B |
| Capacity | 70 pints |
| Wattage | 580 W |
| Max Breaker Size | 5.1 Amps |
| Height | 12" |
| Width | 28" |
| Depth | 12" |
| Pint Capacity | 0-99 |
| Usage | Ducted, Restaurants, Whole House |
| Additional Info | Drain Hose Diameter: 0.75" |
| Warranty | 5-Year Complete Warranty | 6-Year Component Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Wall Mount Bracket for Condensers 48" | |
| SKU | ACB-48 |
| Weight (in lbs) | 9.200000 |
| Brand/Manufacturer | Online Supply |
| Length | 30" |
| Height | 16" |
| Width | 2" |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| E Lite Equipment Pad 36" x 36" x 3" | |
| SKU | EL3636-3 |
| Weight (in lbs) | 28.000000 |
| Brand/Manufacturer | Online Supply |
| Height | 3" |
| Width | 36" |
| Depth | 36" |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Installation Kit for Condensers - Accessory Set | |
| SKU | MSK001 |
| Weight (in lbs) | 15.000000 |
| Brand/Manufacturer | Online Supply |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| Propane (LP) Conversion Kit for Goodman GR9T96 and GD9T96 Furnaces | |
| SKU | LPM-34 |
| Weight (in lbs) | 1.000000 |
| Brand/Manufacturer | Goodman |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
Write Your Own Review
Customer Questions
No Questions
Did you find what you were looking for?
Why Choose Goodman?
For over three decades Goodman has concentrated on something more important than simple brand recognition consumer advertising. They focus on the design, engineering, and manufacturing of dependable products that have helped millions and millions of homeowners achieve reliable, high-quality, and affordable indoor comfort. In addition, Goodman has earned the loyalty and respect from thousands of local independent heating and cooling professionals across North America.
Accessories
Got everything you needed to install? See the recommended and/or required options for installation below.
Check the items you would like to include with your order
