MRCOOL Hyper Heat 3 Ton 16 SEER Central Ducted Heat Pump Split System

By

MRCOOL

In stock

Model

CENTRAL-36-HP-230A00

ID

142047

Rating:
98% of 100
ONLY 16 LEFT!
MRCOOL

Authorized MRCOOL Dealer

Your Low Price $3,458.00

Free Shipping

Required Fields *

Customize MRCOOL Hyper Heat 3 Ton 16 SEER Central Ducted Heat Pump Split System
MRCOOL 36K BTU 16 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-36-HP-C-230A00
MRCOOL 36K BTU 16 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-36-HP-C-230A00
MRCOOL 36K BTU 16 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-36-HP-C-230A00   + $2,360.00
MRCOOL 36K BTU 16 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-36-HP-MUAH230A00
MRCOOL 36K BTU 16 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-36-HP-MUAH230A00
MRCOOL 36K BTU 16 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-36-HP-MUAH230A00   + $1,098.00
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 15 feet
Installation Kit for Condensers
5 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
Wall Mount Bracket for Condensers 30"
CENTRAL-36-HP-230A00

$3,458.00

Accessories for this product
Customer Reviews
BBB Rating
Best Pricing
People that viewed this product purchased this instead:
SAVE $715.31
Easy Install
SAVE $783.31
Easy Install
12 Year Warranty
ACiQ 2.5 Ton 16.2 SEER2 High Efficiency Central Heat Pump System | Inverter | Extreme Series
SAVE $813.00
-22 Hyper Heat
12 Year Warranty
SAVE $1,019.00
-22 Hyper Heat

Description

Overview

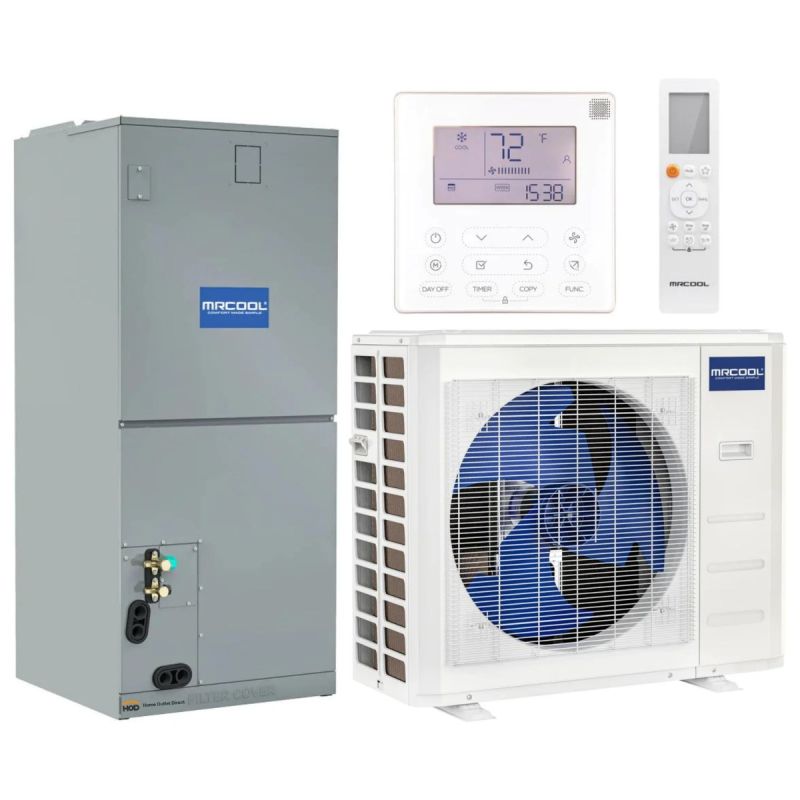

The 3 Ton 16 SEER MRCOOL Central Ducted Hyper Heat Split System (CENTRAL-36-HP-MUAH230A00 / CENTRAL-36-HP-C-230A00) is a powerful and efficient solution for cooling and heating larger spaces. With a cooling capacity of 3 tons and a SEER rating of 16, it provides effective cooling performance while minimizing energy consumption. The hyper heat technology ensures reliable heating even in extreme weather conditions. This split system includes the air handler (CENTRAL-36-HP-MUAH230A00) and the heat pump condenser (CENTRAL-36-HP-C-230A00), working together to distribute conditioned air throughout your space. Upgrade to the CENTRAL-36-HP-MUAH230A00 / CENTRAL-36-HP-C-230A00 for optimal comfort and energy efficiency in your home or commercial environment.

Product Features

  • Up to 17.4 SEER2 and 10 HSPF2
  • Variable Speed
  • Enhanced Heating Capacity
  • R-410A Refrigerant
  • Painted Galvanized Steel
  • Quiet Operation
  • Compact, Side Discharge Design
  • Multi-Position Installation
  • Slide-Out Blower
  • Wired Thermostat Included
  • Follow Me Function
  • Easy-Access Removable Filter
  • Modular Design
  • Self-Diagnostics
  • Easy Maintenance

Product Specifications

More Information
MRCOOL Hyper Heat 3 Ton 16 SEER Central Ducted Heat Pump Split System
SKUCENTRAL-36-HP-230A00
AHRI Certificate Number210279122
ManufacturerMRCOOL
Product FeaturesHigh Efficiency, Inverter, Low Ambient Heating, Quick Connect, Variable Speed Condenser
HSPF9.5
HSPF28
Cooling BTU36000
Heating BTU40000
Maximum CFM4500
Decibel Level (dBA)45
SEER216
EER10
Condenser StagesVariable Speed
Liquid Line1/4"
Suction Line3/8"
Electrical208/230V 1 Phase 60 Hz
Max Breaker Size50
Min. Breaker Size41
Tonnage Bundle3 Ton
BTU/Tonnage36,000 BTU/3 Ton
HeightIndoor 49.02 | Outdoor: 52.48
WidthIndoor 21.02 | Outdoor: 37.48
DepthIndoor 21.02 | Outdoor: 16.34
Warranty10-year Warranty on Parts, Labor, and Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
MRCOOL 36K BTU 16 SEER2 Hyper Heat Central Ducted Heat Pump Condenser - CENTRAL-36-HP-C-230A00
SKUCENTRAL-36-HP-C-230A00
Weight256.000000
ManufacturerMRCOOL
Product FeaturesQuick Connect
HSPF29.5
Cooling BTU36,000 BTU
Heating BTU40,000 BTU
Maximum CFM4500
RefrigerantR410A
SEER216
Liquid Line3/8"
Suction Line3/4"
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size50
BTU/Tonnage36,000 BTU/3 Ton
Height57.48"
Width43.11"
Depth19.49"
Warranty10-year Warranty on Parts, Labor, and Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
MRCOOL 36K BTU 16 SEER2 Hyper Heat Central Ducted Air Handler - CENTRAL-36-HP-MUAH230A00
SKUCENTRAL-36-HP-MUAH230A00
Weight154.000000
ManufacturerMRCOOL
Product FeaturesQuick Connect
Cooling BTU36,000 BTU
Heating BTU40,000 BTU
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Electrical208/230 V. 1 Phase 60 Hz
Max Breaker Size15
Height52.56"
Width26.57"
Depth24.41"
Warranty10-year Warranty on Parts, Labor, and Compressor
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 15 feet
SKUNV15-3834
Refrigerant Charge1.94 oz
Weight10.000000
ManufacturerMRCOOL
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length15'
Safety InformationPROPOSITION 65 WARNING
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 25 feet
SKUNV25-3834
Refrigerant Charge3.17 oz
Weight15.000000
ManufacturerMRCOOL
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length25'
Safety InformationPROPOSITION 65 WARNING
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 35 feet
SKUNV35-3834
Refrigerant Charge9.77 oz
Weight20.000000
ManufacturerMRCOOL
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length35'
Safety InformationPROPOSITION 65 WARNING
No-Vac Precharged Refrigerant Line Set with 3/8" and 3/4" Line Ends - 50 feet
SKUNV50-3834
Refrigerant Charge19.44 oz
Weight54.000000
ManufacturerMRCOOL
RefrigerantR410A
Liquid Line3/8"
Suction Line3/4"
Valve TypeQuick-Connect
Length50'
Safety InformationPROPOSITION 65 WARNING
Installation Kit for Condensers - Accessory Set
SKUMSK001
Weight15.000000
ManufacturerOnline Supply
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
5 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK05
Weight11.000000
ManufacturerMRCOOL
Electric Heat5 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size25/30
Min. Breaker Size23/27
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
8 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK08
Weight13.000000
ManufacturerMRCOOL
Electric Heat8 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size40/45
Min. Breaker Size37/42
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
10 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK10
Weight13.000000
ManufacturerMRCOOL
Electric Heat10 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size50/60
Min. Breaker Size46/53
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
15 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK15
Weight15.000000
ManufacturerMRCOOL
Electric Heat15 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size25/30
Min. Breaker Size23/27
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
20 Kilowatt Electric Heat Kit for MRCOOL Central Ducted Hyper Heat Air Handlers
SKUCENTRALHK20
Weight16.000000
ManufacturerMRCOOL
Electric Heat20 Kilowatts
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size50/60
Min. Breaker Size46/53
Height10.24"
Width24.02"
Depth14.37"
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Condensers 30"
SKUACB-30
Weight9.200000
ManufacturerOnline Supply
Length30"
Height16"
Width2"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Wall Mount Bracket for Mini Split Systems
SKUHW-600
Weight9.200000
ManufacturerOnline Supply
Length17"
Height20"
Width6"
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
