Mitsubishi 30,000 BTU SEZ-AD-Series Single Zone Mini Split Heat Pump Condenser R454B | 230V

*Please Note* This product is currently estimated to ship sometime in January 2026

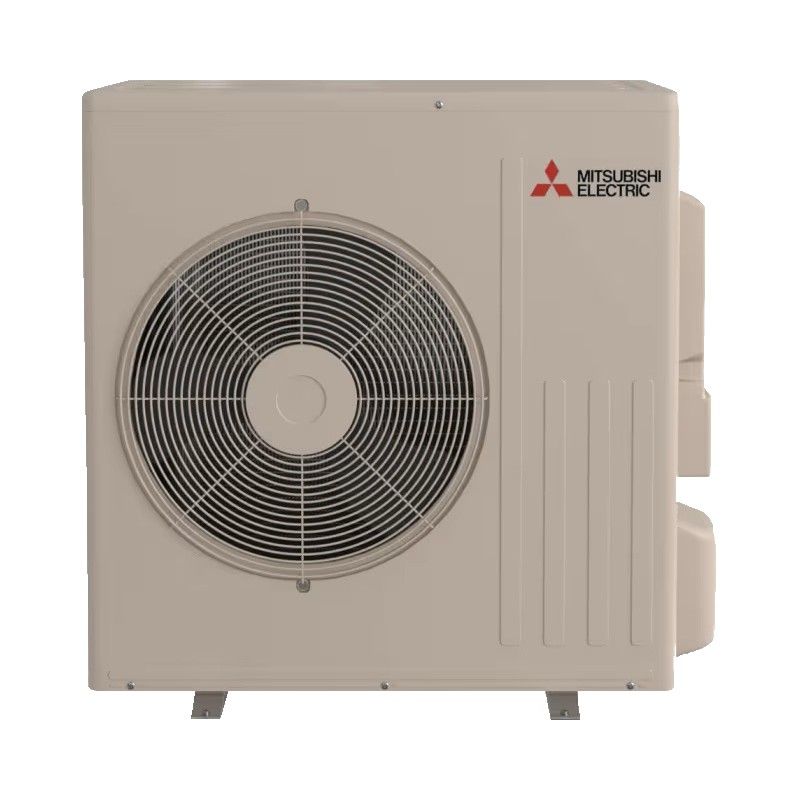

SUZ-AA30NL - 30,000 BTU/H Heat Pump Outdoor Unit

The SUZ-AA30NL is an advanced outdoor unit designed for high-performance heating and cooling. This heat pump unit integrates innovative features for energy-efficient operation and quiet, reliable performance in a wide range of applications, including residential and light commercial environments.

Outdoor Unit Features (SUZ-AA30NL):

• Quiet Operation: Designed to operate quietly with noise levels comparable to a normal conversation, ensuring minimal disruption.
• Inverter-Driven Compressor: Provides precise capacity control, ensuring efficient and effective temperature regulation.
• Pulse Amplitude Modulation Technology: Enhances energy efficiency by optimizing compressor performance to reduce energy consumption.
• Hot-Start Technology: Prevents cold air blasts during start-up by ensuring the fan only activates once the heat exchanger is sufficiently warm.
• High-Performance Grooved Piping: Increases heat exchange efficiency for improved overall performance.
• Blue Fin Coating: Protects the heat exchanger against corrosion from salt, sulfur, and airborne contaminants, making it ideal for coastal and industrial environments.
• Outdoor Unit Directed Power: Powers the indoor unit and includes an automatic restart feature in the event of a power outage.
• Joint Lap DC Motor: Ensures high efficiency and reliability with a durable motor design.

Specifications:

• Cooling Capacity: 30,000 BTU/h rated, with a maximum capacity of 27,000 BTU/h and a minimum of 9,500 BTU/h at 95°F outdoor temperature.
• Heating Capacity: 31,400 BTU/h at 47°F, with capacities of 18,700 BTU/h at 17°F, 17,000 BTU/h at 5°F, and 13,700 BTU/h at -4°F outdoor temperature.
• Energy Efficiency: SEER2 rating of 20.3, EER2 of 11.7, and HSPF2 of 9.5 for optimal energy performance.
• Refrigerant: Uses R454B refrigerant, pre-charged with 3.25 lbs of refrigerant and a maximum piping length of 65 feet.
• Noise Levels: Sound pressure level of 55 dB(A) during both cooling and heating modes.
• Unit Dimensions: 33-1/16 x 13 x 34-11/16 inches, with a unit weight of 117 lbs.

The SUZ-AA30NL is engineered to deliver reliable performance in a wide range of climates and applications, providing excellent comfort and energy savings while maintaining a compact design for easy installation.
