Mitsubishi 30,000 BTU SEZ-AD-Series Single Zone Mini Split Hyper Heat Pump Condenser R454B | 230V

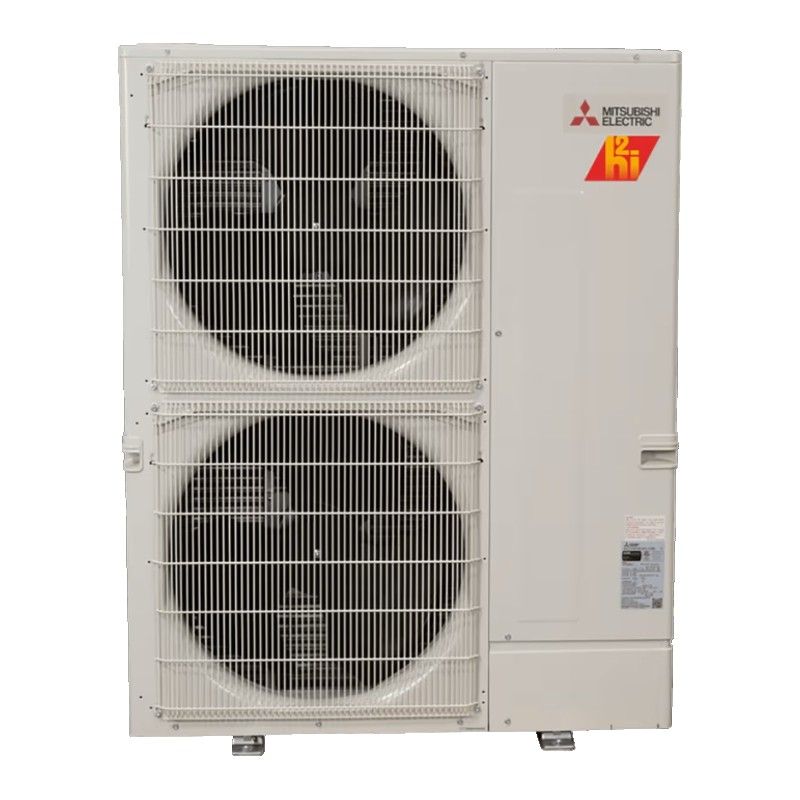

SUZ-AK30NLHZ - 30,000 BTU/H Hyper Heat Pump Outdoor Unit

The SUZ-AK30NLHZ is an advanced outdoor unit designed to provide superior performance in both cooling and heating applications. This unit incorporates innovative technology to offer high energy efficiency and reliable operation, even in extreme temperatures.

Outdoor Unit Features (SUZ-AK30NLHZ):

• Blue Fin Coating: Anti-corrosion treatment applied to the heat exchanger's aluminum fins to protect against environmental contaminants, making it ideal for coastal and industrial areas.
• Built-In Base Pan Heater: Helps prevent ice formation during colder months, ensuring reliable operation in freezing conditions.
• Hot-Start Technology: The fan only activates once the heat exchanger is warm, eliminating the release of cold air during start-up.
• Hyper-Heating INVERTER® (H2i®): Provides 100% heating capacity down to 5°F with guaranteed operation at temperatures as low as -13°F.
• Joint Lap DC Motor: High-efficiency motor designed to improve reliability and performance, ensuring long-lasting operation.
• Outdoor Unit Directed Power: The outdoor unit powers the indoor unit, with automatic restart functionality when power is restored after an outage.
• Pulse Amplitude Modulation Technology: Optimizes compressor performance, adjusting power supply for precise capacity control and reduced energy consumption.
• Quiet Operation: Designed to operate at sound levels similar to a normal conversation, providing minimal disruption to the surrounding environment.

Specifications:

• Cooling Capacity: 30,000 BTU/h rated, with a maximum of 30,800 BTU/h and a minimum of 12,200 BTU/h at 95°F outdoor temperature.
• Heating Capacity: 34,000 BTU/h at 47°F, 32,000 BTU/h at 17°F, and 21,300 BTU/h at -13°F.
• Power Input: 2,420W rated power input during cooling, with 2,768W in heating mode at 47°F.
• SEER2: 19.5 for high energy efficiency in cooling mode.
• HSPF2: 8.5 for optimal heating performance.
• Refrigerant: Uses R454B refrigerant, pre-charged with 9 lbs 14 oz, and supports up to 25 feet of piping length.
• Dimensions: 41-11/32 x 14 x 52-43/64 inches for the unit, with a weight of 231 lbs.
• Sound Pressure Level: 52 dB(A) during cooling and 53 dB(A) during heating for quieter operation.

The SUZ-AK30NLHZ offers exceptional performance, energy savings, and comfort, making it a reliable choice for both residential and commercial applications, even in the harshest conditions.
