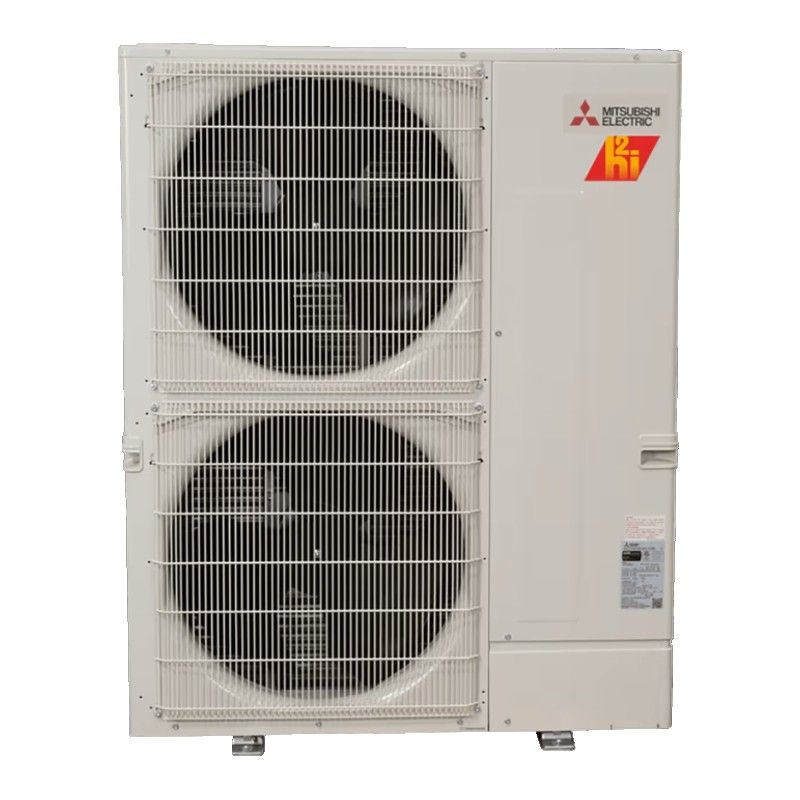

PUZ-AK30NLHZ - Outdoor Unit for Heat Pump System

The PUZ-AK30NLHZ is a high-efficiency outdoor unit designed to pair with Mitsubishi Electric's PCA-AK30NL ceiling-suspended indoor unit, delivering reliable heating and cooling for commercial applications. Below are the key features and specifications of this outdoor unit:

Key Features:

• Hyper-Heating INVERTER®: Features a variable speed INVERTER-driven compressor that enhances heating performance, providing efficient heating even in colder temperatures.
• Wide Heating Range: Maintains heating performance down to -13°F, ensuring consistent comfort in colder climates.
• High-Speed Start-up: Reduces heating start-up time by approximately half compared to standard models, delivering prompt warmth when needed.
• Built-in Base Pan Heater: Equipped with a built-in base pan heater to prevent ice buildup, ensuring reliable operation during heating cycles.
• Pre-Charged Refrigerant: Comes pre-charged with refrigerant suitable for piping lengths up to 100 feet, simplifying installation and reducing setup time.
• Pressure/Temperature Protection: Incorporates safeguards to monitor and protect against pressure and temperature anomalies, ensuring safe and efficient operation.

Specifications:

• Cooling at 95°F:
  • Maximum Capacity: 31,000 BTU/h
  • Rated Capacity: 30,000 BTU/h
  • Minimum Capacity: 12,300 BTU/h
  • Maximum Power Input: 2,550 W
  • Rated Power Input: 2,420 W
• Heating at 47°F:
  • Maximum Capacity: 35,000 BTU/h
  • Rated Capacity: 35,000 BTU/h
  • Minimum Capacity: 11,500 BTU/h
  • Maximum Power Input: 2,710 W
  • Rated Power Input: 2,772 W
• Heating at 17°F:
  • Rated Capacity: 22,400 BTU/h
  • Maximum Power Input: 2,400 W
• Heating at 5°F:
  • Maximum Capacity: 32,000 BTU/h
  • Maximum Power Input: 4,700 W
• Heating at -13°F:
  • Maximum Capacity: 21,700 BTU/h
• SEER2 Rating: 21.9, indicating high energy efficiency.
• EER21 Rating: 12.3, reflecting efficient energy use during cooling.
• HSPF2 Rating: 9.4, demonstrating effective heating performance.
• Electrical Requirements:
  • Voltage: 208/230 V AC, Single-phase, 60 Hz
  • Guaranteed Voltage Range: 198 - 264 V AC
  • Indoor-Outdoor Voltage (S1-S2): 208/230 V AC
  • Indoor-Outdoor Voltage (S2-S3): 12-24 V DC
  • Short-Circuit Current Rating (SCCR): 5 kA
  • Recommended Fuse/Breaker Size (Outdoor): 30 A
  • Recommended Wire Size (Indoor to Outdoor): 14 AWG
• Outdoor Unit Dimensions (W x D x H): 41-1/4 x 14-1/2 x 31-1/2 inches (1,048 x 368 x 800 mm)
• Outdoor Unit Weight: 129 lbs (59 kg)

The PUZ-AK30NLHZ outdoor unit, when paired with the PCA-AK30NL indoor unit, offers a comprehensive heating and cooling solution suitable for various commercial settings. For detailed installation guidelines and comprehensive information, please refer to the official Mitsubishi Electric documentation.
