Today's Hours 10am - 6pm estiON Battery Backup System | 1/3 HP | Automatic | Cast Iron | 44 GPM at 10 ft of head | 30ACi+
Ships in 3-5 Business Days
By
Ion Technologies
In stock
Model
30ACi+
ID
240329
Was $2,255.00 Your Low Price Special Price $1,515.00
Product Features
- 1/3 HP Motor: Efficient and reliable everyday pumping.
- 44 GPM Capacity: Delivers strong flow at 10 feet of head.
- Automatic AC Backup: Keeps pumping during power outages.
- iON+ Switch: Solid-state control with high water alarm.
- Battery Backup: Provides reliable pumping during outages.
- 3-Year Warranty: Coverage for added peace of mind.
Continuous Water Removal with Built-In Battery Backup Protection
Help protect your home from flooding even during a power outage with the iON 30ACi+, an integrated sump pump and battery backup system. Its 1/3 HP cast iron pump delivers up to 44 GPM at 10 feet of total dynamic head, providing high-capacity water removal during normal operation and emergency backup conditions.
When utility power is interrupted, the system automatically switches to auxiliary AC generated from the connected battery, allowing the same sump pump to continue operating. The iON+ Digital Level Control adds automatic pump control, high-water detection, audible alerts, and LED indicators for convenient system monitoring.
Product Features:
- 1/3 HP Cast Iron Pump: Provides high-capacity water removal for residential sump applications.
- Up to 44 GPM: Delivers up to 44 gallons per minute at 10 feet of total dynamic head.
- Automatic Battery Backup: Switches to auxiliary AC power when utility power is lost to help maintain sump protection.
- High-Capacity AC Backup: Keeps the primary sump pump operating during an outage instead of switching to a separate low-capacity DC backup pump.
- iON+ Monitoring and Alarm: Provides digital level sensing, high-water detection, audible alerts, and LED status indicators.
Primary and Battery Backup Sump Protection
The iON 30ACi+ combines primary sump pumping and emergency backup in one system. Under normal conditions, the 1/3 HP pump operates using standard 120V AC utility power. When utility power is unavailable, stored battery power is converted to auxiliary 120V AC to keep the pump operating.
The system can also be installed as a dedicated backup alongside a separate primary sump pump, providing an additional layer of protection against pump or power failure.
High-Capacity AC Backup Performance
The 30ACi+ is rated for up to 44 GPM at 10 feet of total dynamic head. Its auxiliary AC configuration allows the standard sump pump to continue operating during an outage rather than relying on a separate DC backup pump.
During normal operation, the pump runs directly from utility power, allowing the connected battery to remain available for backup use.
iON+ Digital Level Control and High-Water Alarm
The included iON+ Switch uses solid-state digital level sensing without moving parts or contact points for automatic pump control. High-water detection, LED indicators, and an audible alarm provide additional monitoring when water levels rise.
Automatic Battery Backup and Charging
The 800 VA inverter/charger converts stored 12V DC battery power into 120V AC power when utility power is unavailable. Once utility power returns, the system automatically recharges the connected battery for future backup operation.
The 30ACi+ requires one 12V deep-cycle AGM battery, sold separately. A Power+ AGM deep-cycle battery is recommended for use with the system.
System Components

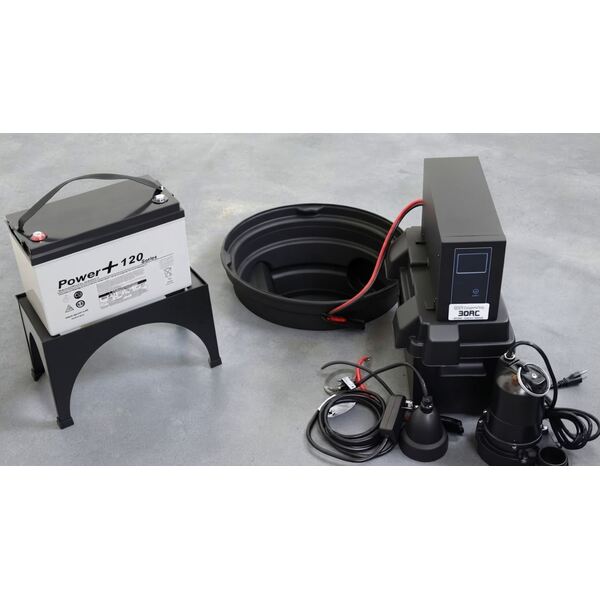

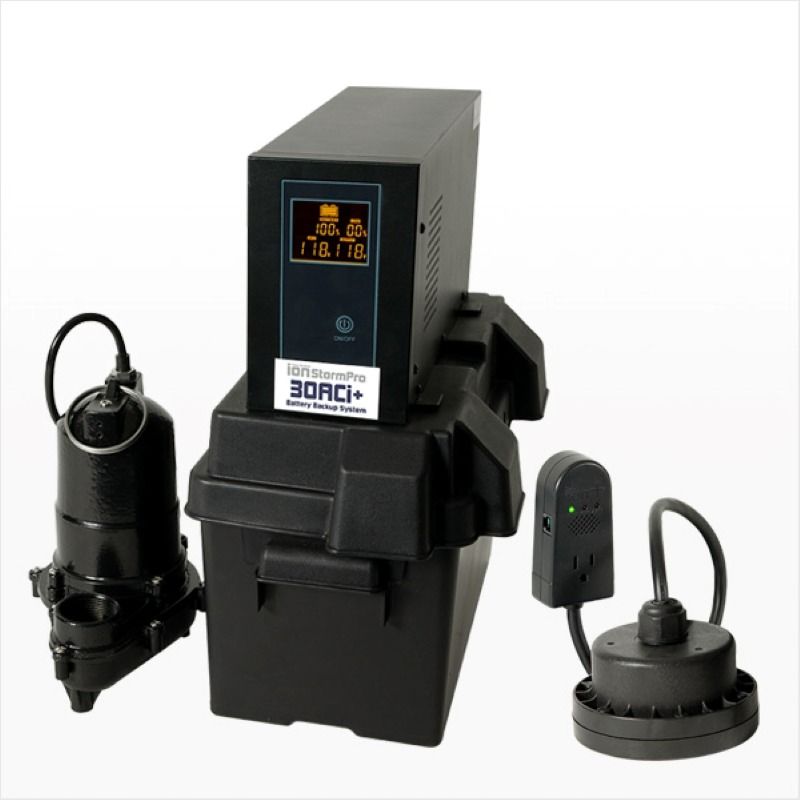

The 30ACi+ includes the iON WC33i 1/3 HP cast iron sump pump, iON+ digital level control and high-water alarm, 800 VA inverter/charger, and non-corrosive battery enclosure. The required 12V AGM battery is sold separately.
Pump Sizing and Installation
The 30ACi+ is rated for up to 44 GPM at 10 feet of total dynamic head. Actual pumping performance will vary based on total system head, discharge piping, fittings, and installation conditions.
A minimum basin size of 18 inches in diameter by 24 inches deep is recommended. Verify the required basin dimensions, discharge piping, electrical supply, battery specifications, and applicable local plumbing and electrical codes before installation.
Warranty
The iON 30ACi+ includes a 3-year warranty. Refer to the manufacturer's operation manual and installation documentation for complete installation, operation, maintenance, and safety requirements.
Reliable 1/3 HP Battery Backup Sump Pump Performance
The iON 30ACi+ is a 1/3 HP cast iron battery backup AC sump pump system designed to provide dependable water removal during normal operation and continued pumping capability during power outages. Rated at 44 GPM at 10 feet of head, the system uses household AC power for everyday operation and automatically switches to battery-powered AC backup when utility power is unavailable.
Designed for residential sump applications, the 30ACi+ combines a durable cast iron pump with an automatic power inverter, battery charger, battery enclosure, and iON+ solid-state level control with high water alarm. One 12-volt deep-cycle AGM battery is required and sold separately.
Why Choose the iON 30ACi+ Battery Backup System?
Powerful 1/3 HP Pump Performance
- 1/3 HP cast iron sump pump delivers up to 44 GPM at 10 feet of head.
- Provides dependable water removal for demanding residential sump applications.
- Heavy-duty cast iron construction is designed for reliable long-term operation.
- Maintains consistent pumping performance when operating from either available AC power source.
- Automatically switches to battery-powered AC operation when household power is lost.
- Converts 12V DC battery power into 120V AC power to operate the sump pump during outages.
- Uses household AC power for normal day-to-day operation to help preserve battery charge.
- Designed to provide continued sump pumping when utility power is unavailable.
- iON+ Digital Level Control operates without moving parts or mechanical contact points.
- Solid-state sensing helps reduce wear associated with conventional mechanical switches.
- Built-in high water alarm helps alert homeowners when elevated water levels are detected.
- Provides automatic pump control for convenient, hands-free operation.
Durable Cast Iron Construction
- Cast iron pump housing provides durability for demanding sump applications.
- Heavy-duty construction is designed to withstand routine pumping operation.
- Engineered for dependable performance in residential basement sump applications.
- Designed to provide primary-caliber pumping performance with battery backup capability.
- Includes an automatic power inverter and battery charger for backup operation.
- Includes a non-corrosive battery enclosure to help protect the backup battery.
- Requires one 12V deep-cycle AGM battery, sold separately.
- System automatically uses available household power during normal operation and reserved battery power during outages.
- 44 GPM pumping capacity at 10 feet of head provides dependable water removal.
- Designed for residential basement sump applications and backup flood protection.
- Automatic operation helps provide continuous pumping without manual intervention.
- Backed by a 3-year warranty for added confidence.
