Closed Until MondayiON Battery Backup Dual Pump System | 1/3 HP | 44 GPM at 10 ft of head | Automatic | Cast Iron | 30ACi Deluxe
Ships in 3-5 Business Days
By
Ion Technologies
In stock
Model
30ACi Deluxe
ID
240332
Was $3,623.00 Your Low Price Special Price $2,434.00
Product Features
- Dual 1/3 HP Pumps: Provides reliable primary and backup pumping.
- 44 GPM Capacity: Delivers strong flow at 10 feet of head.
- Automatic AC Backup: Keeps pumping during power outages.
- iON Genesis Controller: Smart sensing with built-in alarm.
- Battery Monitoring: Tracks battery condition for reliable backup.
- 3-Year Warranty: Coverage for added peace of mind.
Dual-Pump Protection with High-Capacity AC Battery Backup
The iON 30ACi Deluxe is a dual-pump sump pump backup system designed to provide reliable residential water-removal protection during normal operation and power outages. Two identical 1/3 HP cast iron sump pumps alternate operation during everyday use, providing added redundancy if one pump becomes unavailable.
Rated for up to 44 GPM at 10 feet of total dynamic head, the system operates from standard 120V AC power and automatically switches to auxiliary AC power from a connected battery during a power outage. The system requires one 12-volt deep-cycle AGM battery, sold separately.
Product Features:
- Dual 1/3 HP Cast Iron Pumps: Two identical pumps provide dependable sump pumping with built-in redundancy.
- Up to 44 GPM Capacity: Delivers up to 44 GPM at 10 feet of total dynamic head for high-capacity water removal.
- Alternating Pump Operation: Pumps alternate during normal operation to distribute runtime while keeping both pumps available for backup protection.
- Automatic AC Battery Backup: The 800 VA inverter converts stored 12V battery power to 120V AC during power outages, allowing the sump pumps to continue operating.
- iON Genesis Smart-Sensing Control: Provides solid-state level sensing, pump control, high-water detection, and system alarms for automated monitoring.
Dual-Pump Sump Protection
The 30ACi Deluxe combines two primary sump pumps with automatic battery backup in one system. During normal operation, the pumps alternate cycles using household AC power to distribute runtime and maintain redundant pumping capability.
If one pump becomes unavailable, the second pump provides additional pumping protection. During a utility power outage, the system automatically switches to battery-powered auxiliary AC operation.
High-Capacity AC Battery Backup
The 800 VA power inverter converts energy from the connected 12-volt deep-cycle AGM battery into 120V AC power during an outage. This allows the system's AC sump pumps to continue operating without relying on a conventional DC backup pump.
When utility power is restored, the integrated charger automatically recharges the battery and maintains it for future backup operation. The required 12-volt deep-cycle AGM battery is sold separately.
iON Genesis Smart-Sensing Controller
The iON Genesis controller uses solid-state level sensing to monitor sump water levels without traditional mechanical float switches. The system also includes redundant high-water level sensing for additional protection.
Integrated monitoring and alarm functions can identify conditions such as high water, excessive pump runtime, power loss, and pump failure, helping provide timely system notifications.
System Components

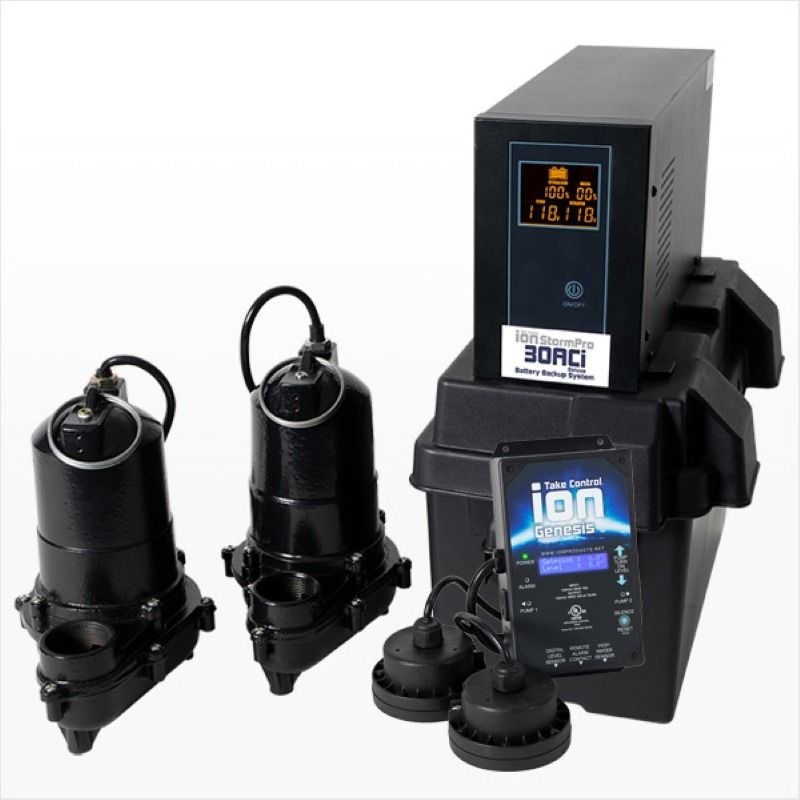

The 30ACi Deluxe includes two 1/3 HP cast iron sump pumps, an iON Genesis smart-sensing controller and alarm, an 800 VA power inverter/charger, battery enclosure, level control sensor, and high-water alarm sensor with redundant level control.
The required 12-volt deep-cycle AGM battery is not included and must be purchased separately.
Pump Sizing and Installation
The system is rated for up to 44 GPM at 10 feet of total dynamic head. Actual pumping performance varies based on total system head, discharge piping, fittings, and installation conditions.

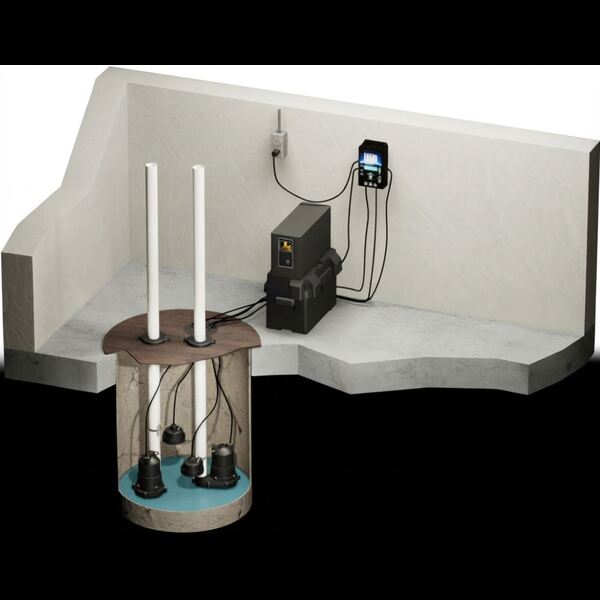

An 18-inch diameter by 24-inch deep minimum basin is recommended for installation. Verify the required basin dimensions, discharge piping, electrical supply, battery specifications, pump configuration, control settings, and applicable plumbing and electrical codes before installation.
Warranty
The iON 30ACi Deluxe includes a 3-year warranty. For proper installation and dependable long-term performance, verify the required basin dimensions, discharge piping, electrical supply, battery type and capacity, pump configuration, level-control settings, and applicable local codes before installation. Refer to the manufacturer's operation manual and installation documentation for complete installation, operation, maintenance, and safety requirements.
Advanced Dual-Pump Battery Backup Protection
The iON 30ACi Deluxe is a dual-pump battery backup AC system designed to provide dependable water removal for residential sump applications. Featuring two 1/3 HP cast iron pumps rated at 44 GPM at 10 feet of head, the system provides reliable day-to-day pumping while maintaining automatic backup capability during power outages.
Each pump operates as an alternating primary during normal operation, helping provide redundancy if one pump becomes unavailable. When utility power is lost, the system automatically converts 12V DC battery power into 120V AC power to keep the sump pump operating without the gradual performance loss associated with many traditional DC backup systems. A 12V deep-cycle AGM battery is required and sold separately.
Why Choose the iON 30ACi Deluxe?
Dual 1/3 HP Cast Iron Pump Performance
- Includes two identical 1/3 HP cast iron sump pumps rated at 44 GPM at 10 feet of head.
- Dual-pump configuration provides alternating operation during normal day-to-day use.
- Energy-efficient PSC motors draw approximately 4.0 amps per pump.
- Redundant pump design provides continued pumping availability if either pump becomes inoperable.
- Automatically converts 12V DC battery power into 120V AC power when utility power is lost.
- Maintains high pumping capacity during power outages without the gradual performance loss associated with conventional DC backup pumps.
- Uses standard household AC power during normal operation and reserved battery power when needed.
- Requires one 12V deep-cycle AGM battery, sold separately.
- Two identical pumps systematically alternate each pumping cycle during normal operation.
- Alternating operation helps distribute pump usage across both pumps.
- Provides backup pumping availability if one pump becomes inoperable.
- Dual-pump configuration supports dependable water removal for residential sump applications.
iON Genesis Smart-Sensing Controller
- iON Genesis controller uses solid-state level sensing with no moving parts or mechanical contact points.
- Monitors pump activity and system conditions in real time.
- Secondary high-water sensor provides emergency level sensing if the primary sensor fails.
- Built-in alarm system can provide alerts for high water, excessive run time, power loss, and pump failure.
- Includes an 800 VA power inverter and battery charger.
- Automatically charges the connected battery when utility power is restored.
- Bypasses battery power while the system operates from available household AC power.
- Includes a non-corrosive battery enclosure for the required backup battery.
- Two 1/3 HP cast iron pumps provide dependable water removal for residential sump applications.
- Rated for 44 GPM at 10 feet of total dynamic head.
- Designed for a minimum 18-inch diameter by 24-inch deep sump basin.
- Backed by a 3-year warranty for added confidence.
