Closed Until MondayiON Battery Backup Pump System | 1/3 HP | 53 GPM at 10 ft of head | Automatic | Cast Iron | 35ACi+
Ships in 3-5 Business Days
By
Ion Technologies
In stock
Model
35ACi+
ID
240333
Was $2,444.00 Your Low Price Special Price $1,642.00
Product Features
- 1/3 HP Motor: Efficient and reliable pumping performance.
- 53 GPM Capacity: Delivers strong flow at 10 feet of head.
- Automatic AC Backup: Keeps pumping during power outages.
- High Water Alarm: Alerts you when water levels rise.
- Battery Backup: Provides reliable pumping during outages.
- 3-Year Warranty: Coverage for added peace of mind.
High-Capacity Sump Protection with Automatic AC Battery Backup
The iON 35ACi+ is an integrated sump pump and battery backup system designed to provide reliable residential water-removal protection during normal operation and power outages. Its 1/3 HP stainless steel and cast iron BA33i pump delivers up to 53 GPM at 10 feet of total dynamic head.
During normal conditions, the system operates from standard 120V AC utility power. When utility power is unavailable, the 800 VA inverter automatically converts power from a connected 12-volt AGM battery into auxiliary 120V AC power, allowing the same sump pump to continue operating during an outage.
Product Features:
- 1/3 HP Stainless Steel & Cast Iron Pump: Provides durable, dependable pumping performance for residential sump applications.
- Up to 53 GPM Capacity: Delivers up to 53 GPM at 10 feet of total dynamic head for high-capacity water removal.
- Automatic AC Battery Backup: Converts stored 12V battery power to 120V AC during a power outage, allowing the sump pump to continue operating.
- iON+ Solid-State Switch with High-Water Alarm: Provides automatic level control with visual and audible alerts for high-water conditions.
- 800 VA Inverter/Charger: Supplies auxiliary AC power during outages and automatically recharges the connected battery when utility power returns.
Primary and Backup Sump Protection
The 35ACi+ combines everyday sump pumping with automatic battery backup in one system. During normal operation, the BA33i pump runs from standard household AC power and can serve as a primary sump pump.
The system can also be installed as a dedicated secondary pump alongside a separate primary pump, providing additional protection against pump failure or power loss.
High-Capacity AC Backup Performance
When utility power is lost, the 800 VA inverter converts stored 12V battery power into 120V AC power for the sump pump. This allows the BA33i to continue operating using auxiliary AC power during an outage.
During normal utility operation, the system bypasses battery power and runs directly from household AC power. When utility power is restored, the inverter/charger automatically recharges the connected battery.
The system requires one 12-volt deep-cycle AGM battery, which is sold separately.
iON+ Level Control and High-Water Alarm
The iON+ Switch uses solid-state level sensing without moving parts or contact points for automatic pump control. Integrated multi-color LED indicators provide system status information, while the audible alarm alerts users when a high-water condition is detected.
The system also includes dry contacts with an RJ11 connection for integration with a compatible external monitoring device.
System Components

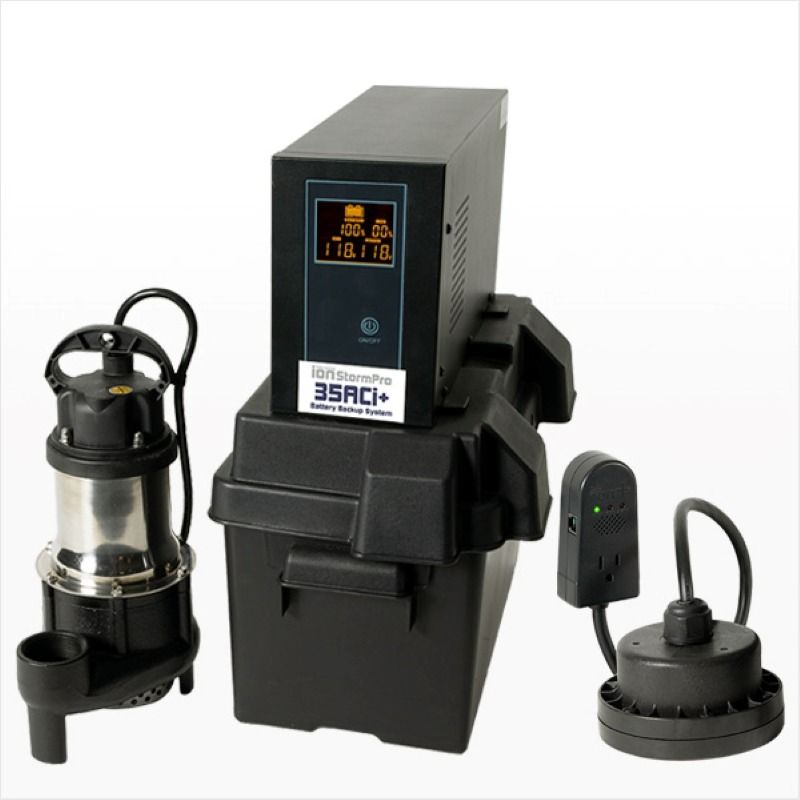

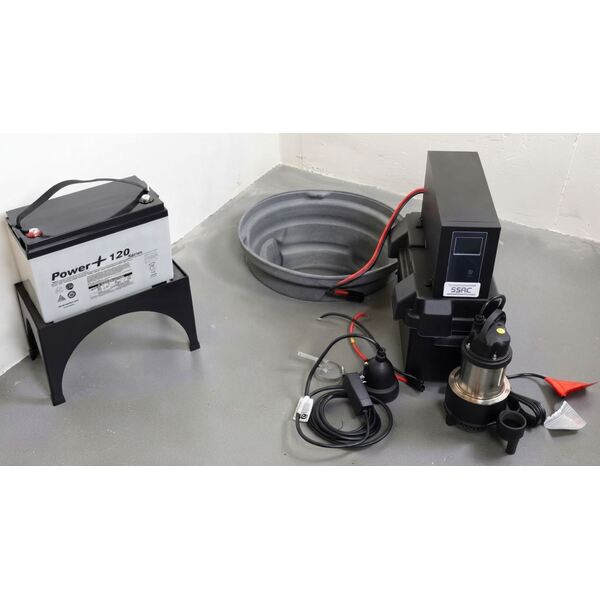

The iON 35ACi+ includes the BA33i 1/3 HP stainless steel and cast iron sump pump, iON+ digital level control and high-water alarm, 800 VA power inverter/charger, and non-corrosive battery enclosure.
The required 12-volt deep-cycle AGM battery is not included and must be purchased separately.
Pump Sizing and Installation
The 35ACi+ is rated for up to 53 GPM at 10 feet of total dynamic head. Actual pumping performance will vary based on total system head, discharge piping, fittings, and installation conditions.
An 18-inch diameter by 24-inch deep minimum basin is recommended. The system requires one 12-volt deep-cycle AGM battery for backup operation. Verify basin dimensions, discharge piping, electrical supply, battery specifications, pump configuration, control settings, and applicable local codes before installation.
Warranty
The iON 35ACi+ includes a 3-year warranty. For proper installation and dependable long-term performance, verify the required basin dimensions, discharge piping, electrical supply, battery type and capacity, pump configuration, control settings, and applicable local codes before installation. Refer to the manufacturer's operation manual and installation documentation for complete installation, operation, maintenance, and safety requirements.
Reliable 1/3 HP Battery Backup Sump Pump Performance
The iON 35ACi+ is a 1/3 HP battery backup AC sump pump system designed to provide dependable water removal during everyday operation and continued pumping capability during power outages. Rated at 53 GPM at 10 feet of head, the system uses household AC power during normal operation and automatically switches to battery-powered AC backup when utility power is unavailable.
Built with a durable stainless steel housing and cast iron base, the 35ACi+ is designed for reliable residential sump applications. The system includes a high-efficiency pump, automatic power inverter and battery charger, battery enclosure, and iON+ Digital Level Control with a built-in high water alarm. One 12V deep-cycle AGM battery is required and sold separately.
Why Choose the iON 35ACi+ Battery Backup System?
Powerful 1/3 HP Pump Performance
- 1/3 HP pump delivers up to 53 GPM at 10 feet of head.
- Provides dependable water removal for demanding residential sump applications.
- Energy-efficient PSC motor draws approximately 4.5 amps during operation.
- High-capacity pump is designed to maintain strong pumping performance during both normal and backup operation.
- Automatically converts 12V DC battery power into 120V AC power when utility power is lost.
- Uses standard household AC power for normal day-to-day pumping.
- Automatically switches to auxiliary AC power from the battery during power outages.
- Helps maintain high pumping capacity during extended power interruptions without the gradual performance loss associated with many conventional DC backup pumps.
- Stainless steel pump housing provides durability and corrosion resistance.
- Cast iron base provides a sturdy foundation for demanding sump applications.
- High-efficiency motor includes thermal overload protection to help safeguard the pump from overheating.
- Designed for dependable operation as either a primary sump pump or dedicated battery backup pump.
iON+ Digital Level Control & High Water Alarm
- iON+ Digital Level Control operates without moving parts or mechanical contact points.
- Solid-state sensing technology helps reduce mechanical wear and potential switch failure.
- Multi-color LED indicators provide at-a-glance system status information.
- Dry contacts provide the option to connect the system to an external monitoring device.
- Includes an 800 VA power inverter and battery charger.
- Bypasses battery power while the pump operates from available utility power.
- Includes a non-corrosive battery enclosure for the required backup battery.
- Requires one 12V deep-cycle AGM battery, sold separately.
- Designed to operate as a full-service primary sump pump during normal conditions.
- Can also be installed as a dedicated battery backup alongside an existing primary sump pump.
- Minimum recommended basin size is 18 inches in diameter by 24 inches deep.
- Fully automatic operation helps provide continuous sump protection without manual intervention.
