Today's Hours 10am - 6pm estiON Battery Backup Dual Pump System | 1/3 HP | 53 GPM at 10 ft of head | Automatic | Cast Iron | 35ACi Deluxe
Ships in 3-5 Business Days
By
Ion Technologies
In stock
Model
35ACi Deluxe
ID
240334
Was $3,823.00 Your Low Price Special Price $2,568.00
Product Features
- Dual 1/3 HP Pumps: Provides reliable primary and backup pumping.
- 53 GPM Capacity: Delivers strong flow at 10 feet of head.
- Automatic AC Backup: Keeps pumping during power outages.
- iON Genesis Controller: Monitors pump activity with backup sensing and alarm.
- Alternating Pumps: Balances operation for added system reliability.
- 3-Year Warranty: Coverage for added peace of mind.
Dual-Pump Sump Protection with Automatic AC Battery Backup
The iON 35ACi Deluxe is an advanced dual-pump sump pump and battery backup system designed to provide reliable residential water-removal protection during normal operation and power outages. It features two identical 1/3 HP stainless steel and cast iron BA33i sump pumps that alternate operation during normal conditions, providing built-in redundancy if either pump becomes inoperable.
The system delivers up to 53 GPM at 10 feet of total dynamic head and operates from standard 120V AC utility power. When utility power is unavailable, the 800 VA inverter automatically converts power from a connected 12-volt AGM battery into auxiliary 120V AC power, allowing the sump pumps to continue operating during an outage.
Product Features:
- Dual 1/3 HP Pumps: Includes two identical stainless steel and cast iron BA33i sump pumps for dependable pumping performance and built-in redundancy.
- Up to 53 GPM Capacity: Provides up to 53 GPM at 10 feet of total dynamic head for high-capacity sump water removal.
- Alternating Pump Operation: Alternates pump cycles to distribute runtime while keeping the second pump available as a redundant pumping source.
- Automatic AC Battery Backup: Converts stored 12V battery power into 120V AC power during a utility outage, allowing the sump pumps to continue operating.
- iON Genesis Smart-Sensing Controller: Provides solid-state level sensing, pump management, alternating operation, system monitoring, and alarm functions without traditional mechanical float switches.
Dual-Pump Sump Protection
The iON 35ACi Deluxe combines two 1/3 HP sump pumps with automatic battery backup to provide comprehensive residential sump protection. During normal conditions, the two BA33i pumps alternate operating cycles using household AC power. This helps distribute pump runtime while maintaining a second pump for redundancy.
If one pump becomes unavailable, the remaining pump can continue providing sump pumping capability. When utility power is lost, the system automatically switches to auxiliary AC power generated from the connected battery.
High-Capacity AC Battery Backup
The 800 VA power inverter converts stored energy from the connected 12-volt AGM battery into 120V AC power during an outage. This allows the system's sump pumps to continue operating using auxiliary AC power rather than relying on a conventional DC backup pump.
During normal utility operation, the system bypasses battery power and operates from household AC power. When utility power returns, the integrated charger automatically recharges the battery and keeps it ready for future backup operation.
The system requires one 12-volt deep-cycle AGM battery, which is sold separately.
iON Genesis Smart-Sensing Controller
The iON Genesis controller uses solid-state digital level sensing without moving parts or contact points for automatic water-level monitoring and pump control. The controller manages alternating pump operation while providing system monitoring and alarm functions.
A redundant high-water sensor provides secondary level detection and can serve as an emergency level sensor if the primary level-sensing system encounters a problem. The controller also provides LED status indicators, an LCD display, and multiple alarm functions for conditions such as high water, excessive pump runtime, power loss, and pump failure.
A remote alarm contact is also provided for connection to a compatible external property security or monitoring system.
Automatic Battery Charging
The integrated 800 VA inverter/charger automatically maintains the connected AGM battery while utility power is available. During normal operation, the system uses household AC power rather than unnecessarily consuming stored battery energy.
When utility power is interrupted, stored battery energy is converted to auxiliary 120V AC power for the sump pumps. Once utility power is restored, the system resumes automatic battery charging.

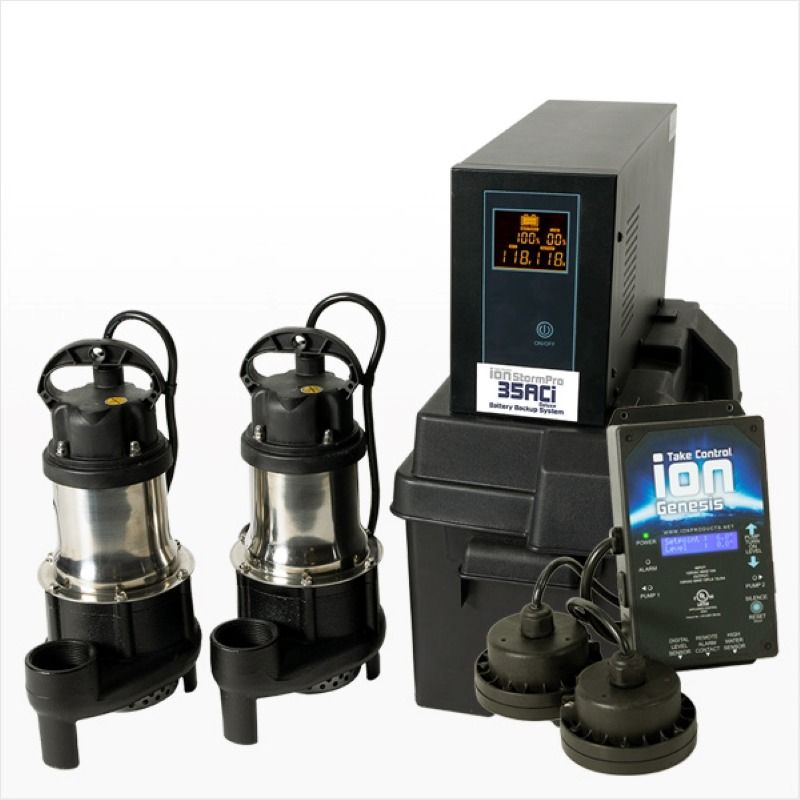

System Components
The iON 35ACi Deluxe includes two BA33i 1/3 HP stainless steel and cast iron sump pumps, an iON Genesis smart-sensing controller and alarm, an 800 VA power inverter/charger, a non-corrosive battery enclosure, a level control sensor, and a high-water alarm sensor with redundant level control.
The required 12-volt deep-cycle AGM battery is not included and must be purchased separately.

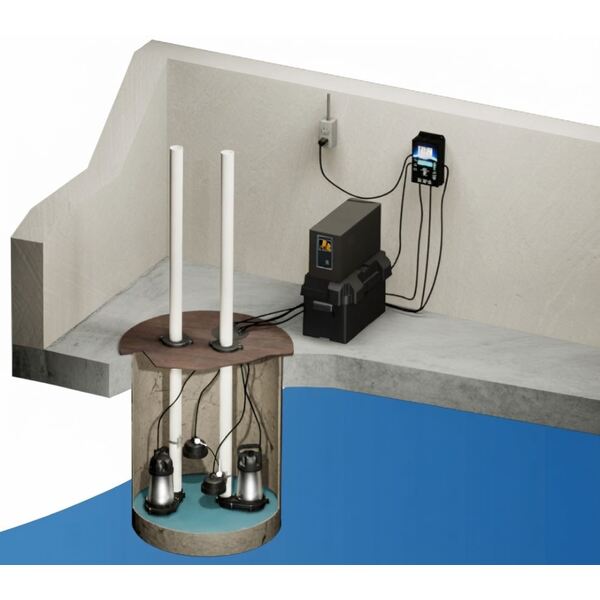

Pump Sizing and Installation
The 35ACi Deluxe is rated for up to 53 GPM at 10 feet of total dynamic head. Actual pumping performance will vary according to total system head, discharge piping, fittings, and installation conditions.
An 18-inch diameter by 24-inch deep minimum basin is recommended. The system requires one 12-volt deep-cycle AGM battery for backup operation. Verify basin dimensions, discharge piping, electrical supply, battery specifications, pump configuration, level-control settings, and applicable local codes before installation.
Warranty
The iON 35ACi Deluxe includes a 3-year warranty. For proper installation and dependable long-term performance, verify the required basin dimensions, discharge piping, electrical supply, battery type and capacity, pump configuration, control settings, and applicable local codes before installation. Refer to the manufacturer's operation manual and installation documentation for complete installation, operation, maintenance, and safety requirements.
Advanced Dual-Pump Battery Backup Protection
The iON 35ACi Deluxe is a dual-pump battery backup AC system designed to provide dependable water removal for residential sump applications. Featuring two 1/3 HP stainless steel and cast iron pumps rated at 53 GPM at 10 feet of head, the system provides reliable day-to-day pumping while maintaining automatic backup capability during power outages.
Each pump operates as an alternating primary during normal operation, helping provide redundancy if one pump becomes unavailable. When utility power is lost, the system automatically converts 12V DC battery power into 120V AC power to keep the sump pump operating. One 12V deep-cycle AGM battery is required and sold separately.
Why Choose the iON 35ACi Deluxe?
Dual 1/3 HP Pump Performance
- Includes two identical 1/3 HP stainless steel and cast iron sump pumps.
- Rated for up to 53 GPM at 10 feet of total dynamic head.
- Energy-efficient PSC motors draw approximately 4.5 amps per pump.
- High-capacity pumps provide dependable water removal for residential sump applications.
- Automatically converts 12V DC battery power into 120V AC power when utility power is lost.
- Provides auxiliary AC power to maintain high pumping capacity during power outages.
- Automatically charges the connected battery when utility power is restored.
- Requires one 12V deep-cycle AGM battery, sold separately.
- Two identical pumps systematically alternate each pumping cycle during normal operation.
- Alternating operation helps distribute pump usage between both pumps.
- Provides continued pumping availability if either pump becomes inoperable.
- Dual-pump design provides an added layer of protection for residential sump applications.
iON Genesis Smart-Sensing Controller
- Monitors pump activity and system conditions during operation.
- Secondary high-water sensor provides emergency level sensing if the primary sensor fails.
- Configurable alarms help detect high water, excessive run time, power loss, and pump failure.
- Controls and alternates pump operation automatically for convenient system management.
- Includes an 800 VA power inverter and battery charger.
- Automatically charges the connected battery when main power is restored.
- Bypasses battery power while the system operates from available household AC power.
- Includes a non-corrosive battery enclosure for the required backup battery.
- Stainless steel pump housings and cast iron bases provide durable construction.
- High-efficiency motors include thermal overload protection to help protect against overheating.
- Designed for dependable operation during everyday pumping and emergency backup conditions.
- Durable construction supports reliable performance in residential sump applications.
