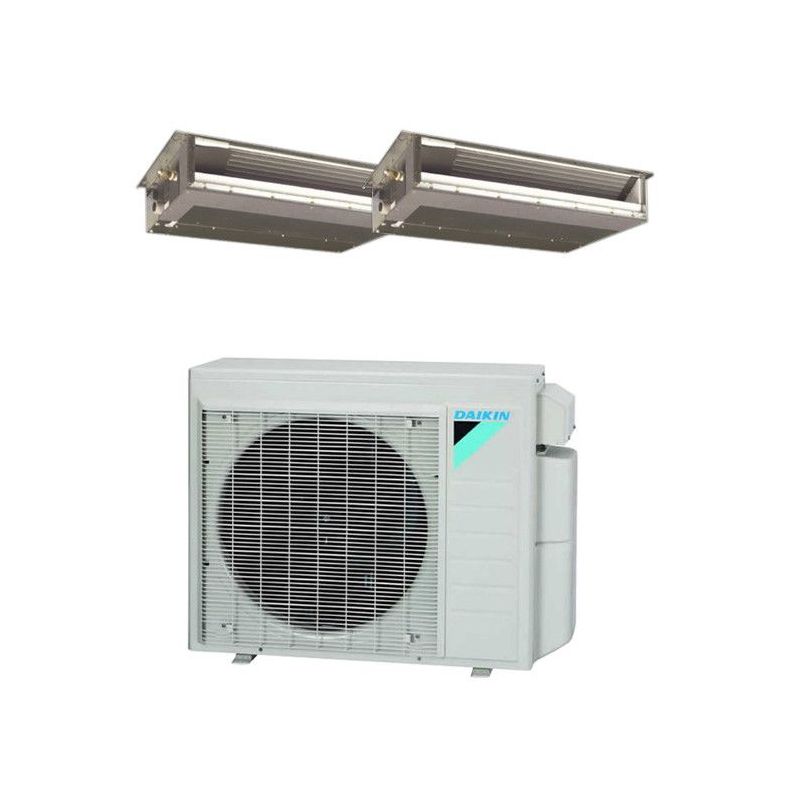

Daikin 36,000 BTU Emura 21.7 SEER2 Dual Zone Concealed Duct Low Static Mini Split Heat Pump System - R410A | 230V - 24+24

Daikin 36,000 BTU Emura 21.7 SEER2 Dual Zone Concealed Duct Low Static Mini Split Heat Pump System - R410A | 230V - 24+24

Required Fields *

Customer reviews
Rating:
4.5 out of 5
Out of stock
By

Daikin

Out of stock

Model

4MXL36TVJU / 2-CDXS24LVJU

ID

32662

Daikin ductless mini-split air handlers feature individual temperature control per room, motion sensors for automatic economy mode operation, and stylish, modern designs that fit in with any home decor. Daikin's ductless systems deliver continuous circulation and filtration quietly, with none of the noise and inconsistent airflow of older furnace and AC systems, all while doing so with greater efficiency and reduced maintenance costs and worries.

Ductless mini-split heat pump systems are perfect for old and new homes or buildings, regardless of whether they have existing ductwork installed. Couple that with Daikin's beautifully designed indoor air handlers and you have elegance and efficiency that will last for years to come, guaranteed.

More Information
36,000 BTU 21.7 SEER Daikin Mini-Split MXL Multi Zone Heat Pump Condenser
FeatureSpec
SKU4MXL36WVJU9
Refrigerant Chargeprecharged for: 131'
Weight (in lbs)214
AHRI Certificate Number202522139, 202521824, 202522140
Brand/ManufacturerDaikin
Additional InformationHeat Pump
Additional InformationPrecharged for: 131'
Additional InformationMaximum Line Set Length: 98'
Additional InformationMaximum System Line Set Length: 230'
Additional InformationNumber of Zones: 2-4
Cooling BTU36000
Heating BTU36000
Decibel Level (dBA)53-55
Energy StarYes
RefrigerantR410A
HSPF215.9
SEER2 (Efficiency)20
EER11.7
Compressor TypeSwing
Liquid Line1/4" (4)
Suction Line3/8" (1), 1/2" (2), 5/8" (1)
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size27 Amps
Min. Breaker Size27 Amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating-13°F - 60°F
Min/Max Outdoor Temp for Cooling14°F - 115°F
Zone CompatibilityMulti Zone
Height34-1/4"
Width43-5/16"
Depth18-1/8"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Daikin 24,000 BTU CDXS Concealed Duct Mini Split Multi Zone Mini Split Air Handler - R410A | 230V
FeatureSpec
SKUCDXS24LVJU
Weight (in lbs)60
Brand/ManufacturerDaikin
UPC703158675969
Additional InformationDrain: 23/32"
Cooling BTU24000
Heating BTU24000
Maximum CFM395-565 CFM
Decibel Level (dBA)32-38
RefrigerantR410A
Liquid Line1/4"
Suction Line5/8"
Electrical208/230v 1 Phase 60 Hz
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Height7-7/8"
Width43-5/16"
Depth24-7/16"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Daikin 24,000 BTU CDXS Concealed Duct Mini Split Multi Zone Mini Split Air Handler - R410A | 230V
FeatureSpec
SKUCDXS24LVJU
Weight (in lbs)60
Brand/ManufacturerDaikin
UPC703158675969
Additional InformationDrain: 23/32"
Cooling BTU24000
Heating BTU24000
Maximum CFM395-565 CFM
Decibel Level (dBA)32-38
RefrigerantR410A
Liquid Line1/4"
Suction Line5/8"
Electrical208/230v 1 Phase 60 Hz
BTU/Tonnage24,000 BTU/2 Ton
Mini Split TypeConcealed Duct
Zone CompatibilityMulti Zone
Height7-7/8"
Width43-5/16"
Depth24-7/16"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
