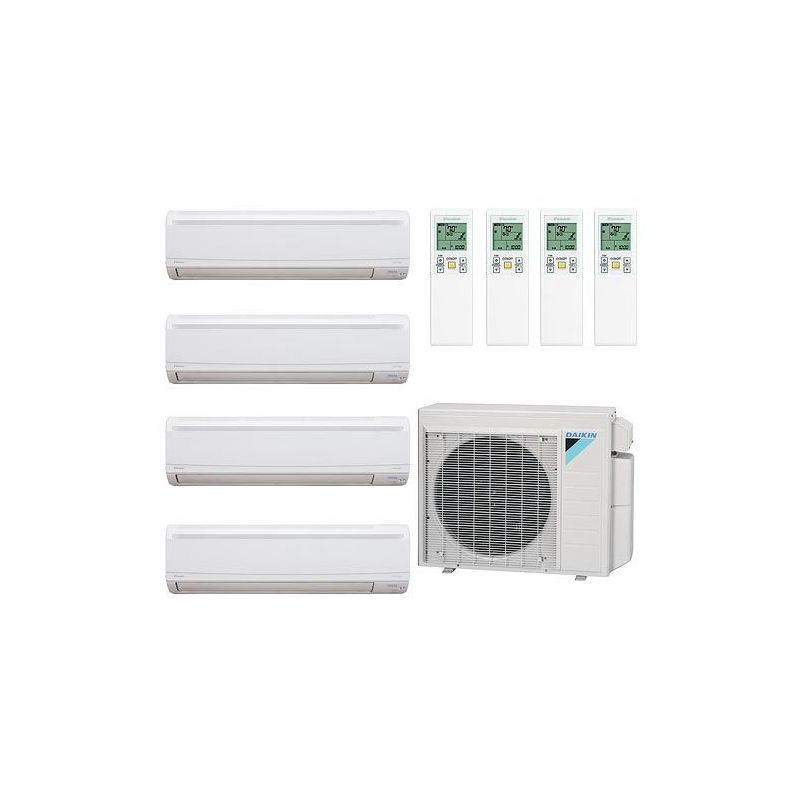

Daikin 36,000 BTU Emura 21.7 SEER2 4 Zone Wall Mounted Mini Split Heat Pump System - R410A | 230V - 9+9+12+12

Daikin 36,000 BTU Emura 21.7 SEER2 4 Zone Wall Mounted Mini Split Heat Pump System - R410A | 230V - 9+9+12+12

Required Fields *

Customer reviews
Rating:
4.5 out of 5
Out of stock
By

Daikin

Out of stock

Model

4MXL36TVJU / 2-FTXS09WVJU9 / 2-FTXS12WVJU9

ID

32682

This Daikin ductless mini-split system is an ideal solution to control heat and cooling in four different areas of your home. They can be used to replace inefficient traditional systems in primary living spaces or to add extra heat or cooling in areas of the home that do not normally feel as comfortable as the rest of the home. This mini-split heat pump system is an all-in-one solution for heating and cooling and will keep you comfortably warm in the winter and cool in the summer.

Daikin systems feature inverter technology that adjusts the power used to suit the actual requirement. This means that the system is only using enough energy to keep your house comfortable and no excess energy usage. A ductless systems can maintain desired room conditions while typically reducing energy consumption by up to 30% or more compared to traditional fixed-speed ducted systems. This technology minimizes temperature fluctuations and provides continuous cooling and heating comfort.

Daikin systems feature ultra-low indoor and outdoor operating sound levels. The systems usually run at low speeds with indoor sound levels as low as 19 decibels. When the indoor unit is put into quiet operation, the sound levels drop by 2-3 decibels for gentler heating and cooling while providing quiet operation.

Daikin systems provide heating performance with Heating Seasonal Performance Factor's (HSPF's) as high as 12.5. This shows that Daikin systems are efficient and effective even in the most extreme environments. The systems also feature long life, washable filters that remove a wide range of airborne particles and odors such as painting, smoking, and cooking smells.

More Information
36,000 BTU 21.7 SEER Daikin Mini-Split MXL Multi Zone Heat Pump Condenser
FeatureSpec
SKU4MXL36WVJU9
Refrigerant Chargeprecharged for: 131'
Weight (in lbs)214
AHRI Certificate Number202522139, 202521824, 202522140
Brand/ManufacturerDaikin
Additional InformationHeat Pump
Additional InformationPrecharged for: 131'
Additional InformationMaximum Line Set Length: 98'
Additional InformationMaximum System Line Set Length: 230'
Additional InformationNumber of Zones: 2-4
Cooling BTU36000
Heating BTU36000
Decibel Level (dBA)53-55
Energy StarYes
RefrigerantR410A
HSPF215.9
SEER2 (Efficiency)20
EER11.7
Compressor TypeSwing
Liquid Line1/4" (4)
Suction Line3/8" (1), 1/2" (2), 5/8" (1)
Electrical208/230v 1 Phase 60 Hz
Max Breaker Size27 Amps
Min. Breaker Size27 Amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating-13°F - 60°F
Min/Max Outdoor Temp for Cooling14°F - 115°F
Zone CompatibilityMulti Zone
Height34-1/4"
Width43-5/16"
Depth18-1/8"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Daikin 9,000 BTU R410A FTXS Wall Mounted Mini Split Multi Zone Mini Split Air Handler - 230V
FeatureSpec
SKUFTXS09WVJU9
Weight (in lbs)20
Brand/ManufacturerDaikin
UPC658515784986
Additional InformationDrain: 5/8"
Cooling BTU9000
Heating BTU9000
Maximum CFM145-420 CFM
Decibel Level (dBA)22-58
RefrigerantR410A
Liquid Line1/4"
Suction Line3/8"
Electrical208/230v 1 Phase 60 Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height11-5/8"
Width31-1/2"
Depth8-7/16"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Daikin 9,000 BTU R410A FTXS Wall Mounted Mini Split Multi Zone Mini Split Air Handler - 230V
FeatureSpec
SKUFTXS09WVJU9
Weight (in lbs)20
Brand/ManufacturerDaikin
UPC658515784986
Additional InformationDrain: 5/8"
Cooling BTU9000
Heating BTU9000
Maximum CFM145-420 CFM
Decibel Level (dBA)22-58
RefrigerantR410A
Liquid Line1/4"
Suction Line3/8"
Electrical208/230v 1 Phase 60 Hz
BTU/Tonnage9,000 BTU/0.75 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height11-5/8"
Width31-1/2"
Depth8-7/16"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Daikin 12,000 BTU FTXS Wall Mounted Mini Split Multi Zone Mini Split Air Handler - R410A | 230V
FeatureSpec
SKUFTXS12WVJU9
Weight (in lbs)22
Brand/ManufacturerDaikin
UPC658515785006
Additional InformationDrain: 5/8"
Cooling BTU12000
Heating BTU12000
Maximum CFM155-438 CFM
Decibel Level (dBA)23-45
RefrigerantR410A
Liquid Line1/4"
Suction Line3/8"
Electrical208/230v 1 Phase 60 Hz
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height11-5/8"
Width31-1/2"
Depth8-7/16"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
Daikin 12,000 BTU FTXS Wall Mounted Mini Split Multi Zone Mini Split Air Handler - R410A | 230V
FeatureSpec
SKUFTXS12WVJU9
Weight (in lbs)22
Brand/ManufacturerDaikin
UPC658515785006
Additional InformationDrain: 5/8"
Cooling BTU12000
Heating BTU12000
Maximum CFM155-438 CFM
Decibel Level (dBA)23-45
RefrigerantR410A
Liquid Line1/4"
Suction Line3/8"
Electrical208/230v 1 Phase 60 Hz
BTU/Tonnage12,000 BTU/1 Ton
Mini Split TypeWall Mounted
Zone CompatibilityMulti Zone
Height11-5/8"
Width31-1/2"
Depth8-7/16"
Warranty12 Years with Online Registration
Resources You will need Adobe® Acrobat® Reader to view PDF documents.
Safety InformationPROPOSITION 65 WARNING
