Daikin ductless mini-split air handlers feature individual temperature control per room, motion sensors for automatic economy mode operation, and stylish, modern designs that fit in with any home decor. Daikin's ductless systems deliver continuous circulation and filtration quietly, with none of the noise and inconsistent airflow of older furnace and AC systems, all while doing so with greater efficiency and reduced maintenance costs and worries.
Ductless mini-split heat pump systems are perfect for old and new homes or buildings, regardless of whether they have existing ductwork installed. Couple that with Daikin's beautifully designed indoor air handlers and you have elegance and efficiency that will last for years to come, guaranteed.

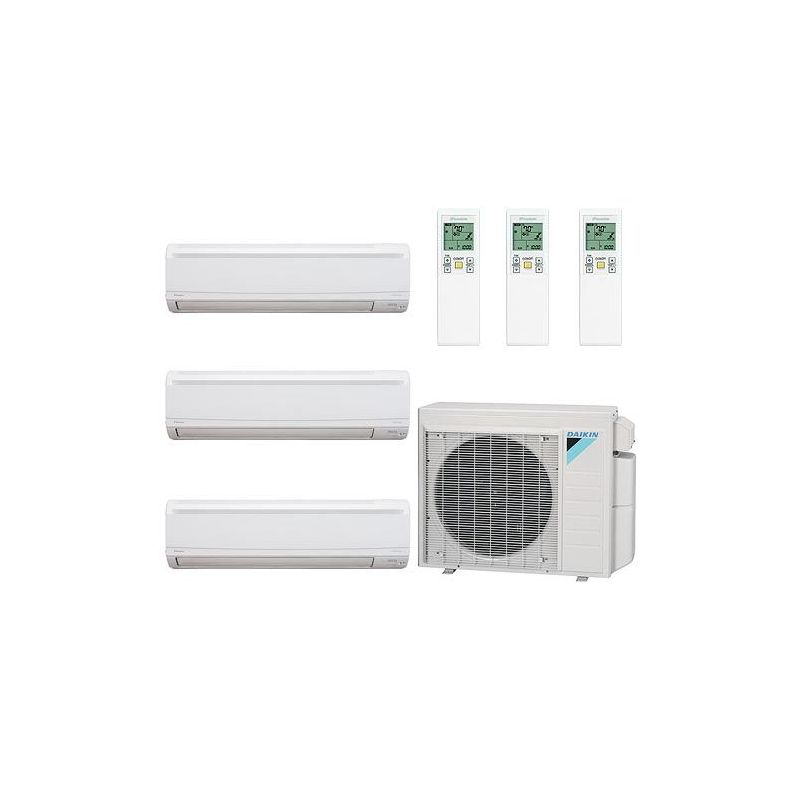

The Daikin Multi Zone MXL Series is the perfect fit for multi-room applications. You can connect two, three, or four indoor units to a single outdoor unit. The ability to choose from wall mount, duct units, floor mount, or ceiling cassette units offers you over 1000 combinations for your installation needs. The system also offers up to 21.7 SEER for home comfort and energy savings. The MXL Series also provides enhanced capacity performance in extreme heat and cold ambient conditions. With long-life filters and quiet operation, the MXL Series is a reliable and efficient solution for your home.
With ductless mini-split systems, each room can be controlled separately using wireless or wired remotes. The MXL Series is compatible with Emura, Vista, FTXS, FVXS, FDMQ, and FDXS/CDXS indoor units, allowing you to blend them in almost invisibly with your home's existing furnishings.
FeaturesThe Daikin FTXS/CTXS indoor unit is packed with features. It features an energy-saving intelligent eye feature, which reduces heating or cooling depending on whether a room is occupied or not. A titanium photocatalytic air filter provides a cleaner environment in your home. The dry program reduces humidity in your home without causing the room temperature to fluctuate. With a wireless remote controller and a weekly timer, it's easy to change operating modes or set the unit to run for a certain amount of time. You can also use the Comfort Control App to control the unit from anywhere in the world.
Ductless mini-split heat pump systems are perfect for old and new homes or buildings, regardless of whether they have existing ductwork installed. Couple that with Daikin's beautifully designed indoor air handlers and you have elegance and efficiency that will last for years to come, guaranteed.
Features36,000 BTU 21.7 SEER Daikin Mini Split MXL Multi Zone Heat Pump Condenser | |
---|---|
SKU | 4MXL36TVJU |
Refrigerant Charge | precharged for: 131' |
Weight | 214.000000 |
AHRI Certificate Number | 202522139, 202521824, 202522140 |
Manufacturer | Daikin |
Additional Information | Heat Pump |
Additional Information | Precharged for: 131' |
Additional Information | Maximum Line Set Length: 98' |
Additional Information | Maximum System Line Set Length: 230' |
Additional Information | Number of Zones: 2-4 |
HSPF | 11.2 |
Cooling BTU | 34400 |
Heating BTU | 36600 |
Decibel Level (dBA) | 53-55 |
Energy Star | Yes |
Refrigerant | R410A |
EER | 12.5 |
Compressor Type | Swing |
Liquid Line | 1/4" (4) |
Suction Line | 3/8" (1), 1/2" (2), 5/8" (1) |
Electrical | 208/230v 1 Phase 60 Hz |
Max Breaker Size | 35 Amps |
Min. Breaker Size | 32.5 Amps |
Tonnage | 3 Ton |
BTU/Tonnage | 36,000 BTU/3 Ton |
Min/Max Outdoor Temp for Heating | -13°F - 60°F |
Min/Max Outdoor Temp for Cooling | 14°F - 115°F |
Zone Compatibility | Multi Zone |
Height | 34-1/4" |
Width | 43-5/16" |
Depth | 18-1/8" |
Warranty | 12 Years with Online Registration |
Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
Safety Information | PROPOSITION 65 WARNING |
15,000 BTU Wall Mounted Daikin Mini Split Multi Zone FTXS - Air Handler | |
SKU | FTXS15WVJU9 |
Weight | 31.000000 |
Manufacturer | Daikin |
Additional Information | Drain: 5/8" |
Cooling BTU | 15000 |
Heating BTU | 15000 |
Maximum CFM | 360-593 CFM |
Decibel Level (dBA) | 30-45 |
Refrigerant | R410A |
Liquid Line | 1/4" |
Suction Line | 1/2" |
Electrical | 208/230v 1 Phase 60 Hz |
BTU/Tonnage | 15,000 BTU/1.25 Ton |
Mini Split Type | Wall Mounted |
Zone Compatibility | Multi Zone |
Height | 13-3/8" |
Width | 41-5/16" |
Depth | 9-3/4" |
Warranty | 12 Years with Online Registration |
