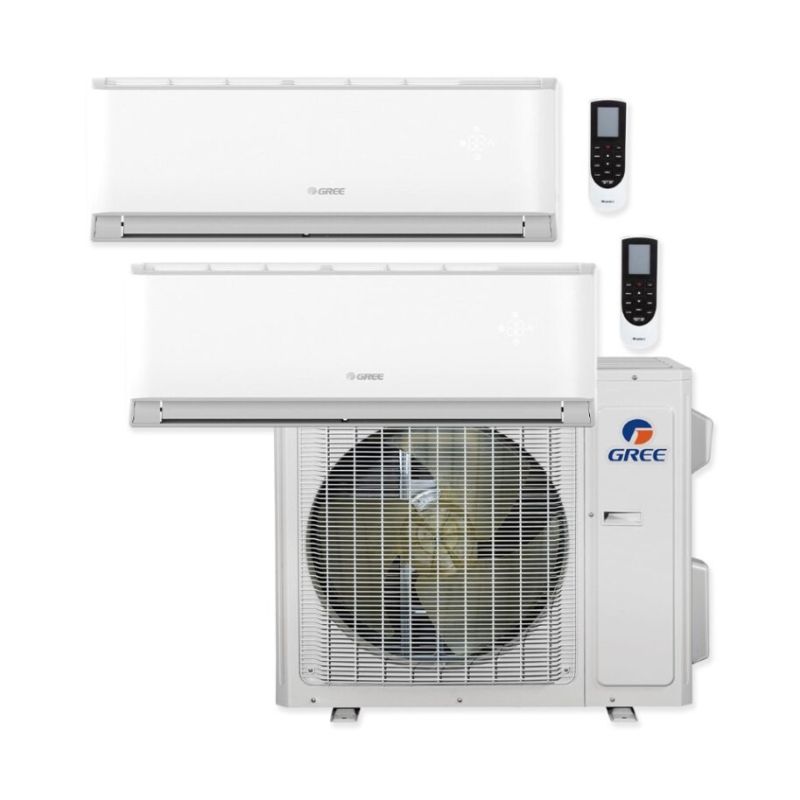

36,000 BTU 23 SEER Dual Zone Wall Mounted Gree Heat Pump System 9+18
Required Fields *
By
Gree
In stock
Model
MULTIU36HP230V1DO / 4LIV09HP230V1AH / 4LIV18HP230V1AH
ID
53512
In Stock - Ready to Ship
Was $7,361.38
Your Low Price $6,228.48
Â
Free Shipping
- Heating & Cooling
- Ductless Solution
- Compatible with one 250-400 & one 600-1,000 sq ft Rooms/Zones
- Dual-Zone/Room Compatible
- Wi-Fi & Remote Control Compatible
- 5-Year Limited Warranty
- days
- Hours
- Minutes
- Seconds
The Gree Dual Zone Mini Split Systems are state of the art ductless mini split heat pump systems, providing both heating and cooling for your home. Rated at 23 SEER, this efficient system will keep operating costs down while providing year-round comfort. Each living space has its own air-handling unit.
36,000 BTU 23 SEER Gree Mini Split Multi+ Ultra 2-4 Zone Heat Pump Condenser - R410A
The Gree Multi+ Ultra Multi Zone Inverter Heat Pump operates with lower power consumption and lower noise, and provides you with more comfort. Advanced G-10 inverter technology ensures stable operation and operates down to a bone-chilling -31°F outdoor temperature! The unit uses eco-friendly R-410A refrigerant, an optimized fan with anti-corrosion coating, and a brushless fan motor.
The Multi+ Ultra condenser is AHRI Certified and comes with a 5-year limited warranty.
Features:
- Minimum 2 connected zones
- Maximum 4 connected zones
- No refrigerant branch box required
- Minimum 18,000 BTU connected capacity
- Maximum 54,000 BTU connected capacity
Compatible Indoor Units:
Wall Mounted
- Comfort Series Livo+: LIVS09HP230V1BH, LIVS12HP230V1BH, LIVS18HP230V1BH, LIVS24HP230V1BH
- Comfort Series Livo Gen3: LIVV09HP230V1AH, LIVV12HP230V1AH, LIVV18HP230V1AH, LIVV24HP230V1AH
- Connoisseur Series Vireo+: VIR09HP230V1BH, VIR12HP230V1BH, VIR18HP230V1BH, VIR24HP230V1BH
- Tech Series Sapphire: SAP09HP230V1AH, SAP12HP230V1AH, SAP18HP230V1AH, SAP24HP230V1AH
Ducted
- Slim Duct: DUCT09HP230V1AD, DUCT12HP230V1AD, DUCT18HP230V1AD, DUCT24HP230V1AD
- High Static: DUCT09HP230V1BD, DUCT12HP230V1BD, DUCT18HP230V1BD, DUCT24HP230V1BD
Ceiling Cassette
- CAS12HP230V1AC, CAS18HP230V1AC, CAS24HP230V1AC
Universal Floor/Ceiling Suspended
- FLR09HP230V1AF, FLR12HP230V1AF, FLR18HP230V1AF, FLR24HP230V1AF
Floor Mounted Mini-Console:
- CONS09HP230V1AF, CONS12HP230V1AF, CONS18HP230V1AF
9,000 BTU Wall Mount Gree Mini Split Livo Gen4 Single Zone Air Handler - R410A
OVERVIEW
The 4LIV09HP230V1AH is a 9,000 BTU variable speed air handler from Gree. It is designed for use with 230V systems and features a DC inverter compressor for efficient operation. The air handler also has a compact and quiet design, making it ideal for residential and commercial applications.
QUICK FACTS
- 9,000 BTU
- Designed to heat and cool a small room
- Heating, Cooling, Auto, Dry, and Fan modes
- DC inverter compressor for efficient operation
9,000 BTU Single Zone or Multi Zone Indoor Unit
The Gree Livo Gen4 system provides high efficiency and quiet comfort. It is both quieter and simultaneously delivers more air than the previous Livo and Lio+ generations. Maintenance is easy thanks to the self-diagnostics tool.
The Livo Gen4 features multiple fan speeds for your comfort. The indoor unit's sleep mode ensures that temperature fluctuations don't disturb your sleep. It also features a hidden backlight display on the unit which will inform you of the temperature and different modes running. A handheld remote control is included with this unit and features a programmable timer and I Feel mode, which senses temperature around the remote to adjust airflow and indoor temperature.
Warranty
The 4LIV09HP230V1AH comes with Gree’s standard 5 year parts and 5 year compressor warranty when registered and installed in a residential application. The warranty is reduced to 1 year parts and 5 year compressor when installed in a commercial application. Controls are warrantied for 90 days from the purchase date.
If installed by a Gree Select Dealer, the residential warranty may be extended to 10 years on parts and 10 years on the compressor when registered within 60 days of installation.
Smart Features
The Livo Gen4 system includes intelligent pre-heating and defrosting to prevent cold air from blowing inside while the unit is in heating mode. The system includes power failure recovery to resume function automatically after a power outage. A wireless adapter (sold separately) can be added to the indoor unit to provide control over the system from anywhere via the Gree app for mobile phones.
18,000 BTU Wall Mount Gree Mini Split Livo Gen4 Single Zone Air Handler - R410A
OVERVIEW
The 4LIV18HP230V1AH is a 18,000 BTU variable speed air handler from Gree. It is designed for use with 230V systems and features a DC inverter compressor for efficient operation. The air handler also has a compact and quiet design, making it ideal for residential and commercial applications.
QUICK FACTS
- 18,000 BTU
- Designed to heat and cool a medium room
- Heating, Cooling, Auto, Dry, and Fan modes
- DC inverter compressor for efficient operation
18,000 BTU Single Zone or Multi Zone Indoor Unit
The Gree Livo Gen4 system provides high efficiency and quiet comfort. It is both quieter and simultaneously delivers more air than the previous Livo and Lio+ generations. Maintenance is easy thanks to the self-diagnostics tool.
The Livo Gen4 features multiple fan speeds for your comfort. The indoor unit's sleep mode ensures that temperature fluctuations don't disturb your sleep. It also features a hidden backlight display on the unit which will inform you of the temperature and different modes running. A handheld remote control is included with this unit and features a programmable timer and I Feel mode, which senses temperature around the remote to adjust airflow and indoor temperature.
Warranty
The 4LIV18HP230V1AH comes with Gree’s standard 5 year parts and 5 year compressor warranty when registered and installed in a residential application. The warranty is reduced to 1 year parts and 5 year compressor when installed in a commercial application. Controls are warrantied for 90 days from the purchase date.
If installed by a Gree Select Dealer, the residential warranty may be extended to 10 years on parts and 10 years on the compressor when registered within 60 days of installation.
Smart Features
The Livo Gen4 system includes intelligent pre-heating and defrosting to prevent cold air from blowing inside while the unit is in heating mode. The system includes power failure recovery to resume function automatically after a power outage. A wireless adapter (sold separately) can be added to the indoor unit to provide control over the system from anywhere via the Gree app for mobile phones.
| 36,000 BTU 23 SEER Gree Mini Split Multi+ Ultra 2-4 Zone Heat Pump Condenser | |
|---|---|
| SKU | MULTIU36HP230V1DO |
| Refrigerant Charge | Pre-charged for: 131' |
| Weight | 298.000000 |
| AHRI Certificate Number | 204288780 & 204630894 & 204664397 |
| Manufacturer | Gree |
| Product Features | Low Ambient Heating |
| Additional Information | Heat Pump |
| Additional Information | Maximum Line Set Length: 82' |
| Additional Information | Maximum System Piping: 246' |
| HSPF | 10 |
| Cooling BTU | 36,000 |
| Heating BTU | 36,000 |
| Decibel Level (dBA) | Outdoor Unit: 62 dB(A) |
| Energy Star | No |
| Refrigerant | R410A |
| SEER | 23-24 |
| EER | 9 |
| Compressor Type | Rotary |
| Liquid Line | liquid_line=1/4" (5) |
| Suction Line | suction_line=3/8" (5) |
| Electrical | 208/230V 1 Phase 60Hz |
| Electric Phase Filter | Single Phase |
| Max Breaker Size | 40 amps |
| Min. Breaker Size | 23 amps |
| Tonnage | 3 Ton |
| BTU/Tonnage | 36,000 BTU/3 Ton |
| Min/Max Outdoor Temp for Heating | -31F - 75F |
| Min/Max Outdoor Temp for Cooling | 0F - 115F |
| Height | 43.5" |
| Width | 40" |
| Depth | 17.3" |
| Warranty | 5 year Limited Parts Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 9,000 BTU Wall Mount Gree Mini Split Livo Gen4 Single Zone Air Handler | |
| SKU | 4LIV09HP230V1AH |
| Weight | 24.300000 |
| Manufacturer | Gree |
| Controller | Wireless Included |
| Product Features | Low Ambient Heating |
| Additional Information | Drain: 5/8" |
| Cooling BTU | 9,000 |
| Heating BTU | 9,000 |
| Maximum CFM | 159 - 353 CFM |
| Decibel Level (dBA) | 26 - 41 dB(A) |
| Refrigerant | R410A |
| Capacity | Dehumidification Rate: 1.69 pt/hr |
| Liquid Line | 1/4" |
| Suction Line | 3/8" |
| Electrical | 208/230V 1 Phase 60Hz |
| Electric Phase Filter | Single Phase |
| BTU/Tonnage | 9,000 BTU/0.75 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 10-7/8" |
| Width | 32-7/8" |
| Depth | 7-7/8 |
| Warranty | 5 year Limited Parts Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
| 18,000 BTU Wall Mount Gree Mini Split Livo Gen4 Single Zone Air Handler | |
| SKU | 4LIV18HP230V1AH |
| Weight | 36.400000 |
| Manufacturer | Gree |
| Controller | Wireless Included |
| Additional Information | Drain: 5/8" |
| Cooling BTU | 18,000 |
| Heating BTU | 18,000 |
| Maximum CFM | 283 - 618 CFM |
| Decibel Level (dBA) | 32 - 50 dB(A) |
| Refrigerant | R410A |
| Capacity | Dehumidification Rate: 3.80 pt/hr |
| Liquid Line | liquid_line=1/4" |
| Suction Line | suction_line=1/2" |
| Electrical | 208/230V 1 Phase 60Hz |
| Electric Phase Filter | Single Phase |
| BTU/Tonnage | 18,000 BTU/1.5 Ton |
| Mini Split Type | Wall Mounted |
| Zone Compatibility | Single Zone |
| Height | 13-1/8" |
| Width | 37-1/8" |
| Depth | 9-11/16" |
| Warranty | 5 year Limited Parts Warranty |
| Resources | You will need Adobe® Acrobat® Reader to view PDF documents. |
| Safety Information | PROPOSITION 65 WARNING
This product and many products on our site may contain a chemical know to the state of California to cause cancer or birth defects or other reproductive harm. For more information about Proposition 65 please Click Here.
|
