Customize 36,000 BTU 23 SEER Designer+ Floor Mounted Stealth Tri Zone Heat Pump System 9+18+24
36k BTU Heat Pump Condenser (2-4 Zone)
36k BTU Heat Pump Condenser (2-4 Zone)   + $2,269.00
9k BTU Floor Mounted (up to 400 sq ft)
9k BTU Floor Mounted (up to 400 sq ft)   + $697.50
18k BTU Floor Mounted (550 - 1,000 sq ft)
18k BTU Floor Mounted (550 - 1,000 sq ft)   + $809.10
24k BTU Floor Mounted (1,000 - 1500 sq ft)
24k BTU Floor Mounted (1,000 - 1500 sq ft)   + $990.00
Condenser Risers - 4" x 18" - 2 Pack
36,000 BTU 23 SEER Designer+ Floor Mounted Stealth Tri Zone Heat Pump System 9+18+24
SAVE $3,753.95
36,000 BTU 23 SEER Designer+ Floor Mounted Stealth Tri Zone Heat Pump System 9+18+24
36,000 BTU 23 SEER Designer+ Floor Mounted Stealth Tri Zone Heat Pump System 9+18+24

$4,765.60

Accessories for this product
Call 1-800-397-1392 for Best Pricing
Customer Reviews
BBB Rating
Best Pricing

Description

The Stealth Designer+ Series Multi Zone mini-split systems offer elite performance across a range of air handler types suitable for any application. In addition to standard wall mounted air handlers, ceiling cassette, concealed ducted and floor mounted heat console type air handlers are available.

36,000 BTU 23 SEER Stealth Pinnacle Mini-Split 2-4 Zone Heat Pump Condenser

OVERVIEW

The Stealth Pinnacle Series Multi Zone SC-36Z-HH-M4 heat pump condenser is Energy Star rated, with Hyper Heat performance down to an outside temperature of –31 degrees Fahrenheit. The outdoor unit has connections for up to 4 air handlers and is pre-charged with R410a refrigerant for 131' of total line set length.

Pinnacle Series condensers have the highest efficiency ratings of any multi zone mini-split, up to 23 SEER and 10.5 HSPF.

QUICK FACTS

  • Energy Star Rated
  • Max efficiency up to 23 SEER and 10.5 HSPF
  • Heating temperatures range from -31°F to 75°F
  • Cooling temperatures range from 0°F to 118°F
  • 14 year compressor, 5 year parts extended warranty with registration
  • 18,000 BTU – 42,000 BTU condenser models available
  • Rugged construction with acrylic resin fin coating for durability

36,000 BTU, 23 SEER

This condenser has connections for up to 4 air handlers to cover different rooms or zones in your space. The SEER rating of 23 means you pay less for this amount of heating and cooling compared to systems with lower SEER values. The Stealth Pinnacle Series means elite performance at attractive prices.

14 Year Warranty

The Stealth Emerald Series features a 14 warranty with online registration. The standard warranty on the SC-36Z-HH-M4 is a 5-year parts and 7-year limited compressor warranty. With online registration and an installation following state and local installation codes, the compressor warranty increases to 14 years.

Durability and Reliability

Rugged construction, combined with an acrylic resin fin coating adds up to a long, trouble-free service life. Precision engineering is behind every Stealth Pinnacle Series model, resulting in powerful performance across a punishing range of conditions. The SC-36Z-HH-M4 provides continuous heat with outdoor temperatures down to -31 degrees Fahrenheit.

Installation and Maintenance

Every Stealth Pinnacle series condenser comes pre-charged with R410a refrigerant, enough for 25’ of line set per air handler. The line set fittings are compression-type and will require evacuation prior to refrigerant release. Line set kits, including insulated copper refrigerant lines, control wire and drain hose extensions are available under Accessories on this page. Stealth Pinnacle series features self-diagnosing electronics. Should the system detect a fault, error codes will display on the front of the inside units.

Please note:

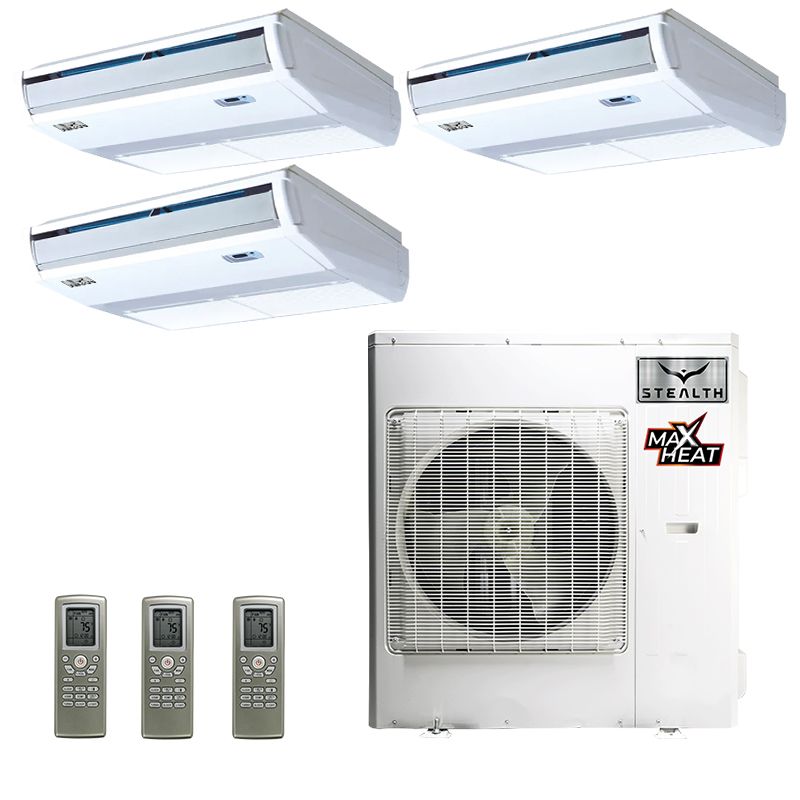

This system includes only the outdoor condenser, indoor air handlers and wall-mounted or remote thermostats (depending on model) as depicted in the photo above. Additional Accessories are required to complete the installation.

Each air handler requires a separate refrigerant line set, control wire and condensation control. The condenser requires connection to household power, wired through a disconnect switch and flexible, weatherproof conduit (whip). Additional optional accessories are also available. For help configuring your system, call (888) 377-2850.

9,000 BTU Stealth Designer+ Floor/Ceiling Multi Zone Air Handler

Stealth Designer Series Floor or Ceiling Mount Air Handlers can be surface mounted vertically or horizontally* for ultimate flexibility in placement. The wider, flatter form factor makes it a good solution when you only have vertical wall space that is close to the floor, such as in an attic room. Surface mount on the ceiling is also possible but may require a separate condensate pump to remove water.

Please note: This air handler must be connected to an outdoor condenser in order to function.

18,000 BTU Stealth Designer+ Floor/Ceiling Multi Zone Air Handler

18,000 BTU Floor or Ceiling Mount Air Handler

Stealth Designer Series Floor or Ceiling Mount Air Handlers can be surface mounted vertically or horizontally* for ultimate flexibility in placement. The wider, flatter form factor makes it a good solution when you only have vertical wall space that is close to the floor, such as in an attic room. Surface mount on the ceiling is also possible but may require a separate condensate pump to remove water.

Please note:

This air handler must be connected to an outdoor condenser in order to function.

*Note: the 12k btu is floor mount only and cannot be located on the ceiling.

24,000 BTU Stealth Designer+ Floor/Ceiling Multi Zone Air Handler

24,000 BTU Floor or Ceiling Mount Air Handler

Stealth Designer Series Floor or Ceiling Mount Air Handlers can be surface mounted vertically or horizontally* for ultimate flexibility in placement. The wider, flatter form factor makes it a good solution when you only have vertical wall space that is close to the floor, such as in an attic room. Surface mount on the ceiling is also possible but may require a separate condensate pump to remove water.

Please note:

This air handler must be connected to an outdoor condenser in order to function.

*Note: the 12k btu is floor mount only and cannot be located on the ceiling.

Condenser Risers - 4" x 18" - 2 Pack

Provides simple and secure mounting for small and large piping systems, ductwork runs, cable trays and smaller equipment such as condensers. Linear track offers adjustable mounting. Manufactured from exterior grade materials.

Features

  • Ideal for piping, duct runs, cable trays and condensers
  • Weather resistant PVC
  • Linear track holds 3/8" hex head bolts
  • Two 7/8" long bolts included
  • Weighs up to 397 Ib
Diversitech E Lite Equipment Pad and Risers Kit 18" x 38" x 3"

E Lite Condenser Pad and Risers

E Lite Condenser Pad

E Lite Condenser Pad is designed to provide solid support for air conditioning condensers. It's made from sturdy polypropylene, striking a balance between lightness and stability. Its robust design ensures a level ground without the need for extra components.

Key Features:

  • Reliable Support: Abundance of ridges for stable ground support.
  • Durable and Lightweight: Tough yet not excessively heavy, thanks to polypropylene construction.
  • Anti-Slip: The surface prevents slipping, and rounded edges enhance safety.
  • Simple Appearance: Gray color with size labels.
  • Versatile Use: Suitable for condensers, pipes, ducts, cables, and more.

E Lite Risers

E Lite Risers complement the Condenser Pad, allowing you to adjust your setup as needed. They are constructed from weather-resistant PVC for outdoor use.

Key Features:

  • Weather Resistance: Made from tough PVC for long-lasting performance.
  • Secure Setup: The track securely holds bolts in place.
  • Bolts Included: Each set comes with two bolts.
  • Strong Support: Capable of handling loads of up to 397 pounds.

E Lite Condenser Pad and Risers offer reliable support without any complications. They are built to last and deliver efficient performance. Consider E Lite for your support needs – it's a practical solution for your projects.

Product Specifications

More Information
36,000 BTU 23 SEER Stealth Pinnacle Mini-Split 2-4 Zone Heat Pump Condenser
SKUSC-36Z-HH-M4
Refrigerant ChargePre-charged for: 131'
Weight (in lbs)298.000000
AHRI Certificate Number208674948
Brand/ManufacturerStealth
Additional InformationHeat Pump
Additional InformationMaximum Line Set Length: 82'
Additional InformationMaximum System Piping: 246'
HSPF10
Cooling BTU36,000
Heating BTU36,000
Decibel Level (dBA)Outdoor Unit: 62 dB(A)
Electric HeatHeat Pump
RefrigerantR410A
SEER1 (Efficiency)23-24
EER9
Liquid Line1/4" (5)
Suction Line3/8" (5)
Electrical208/230V 1 Phase 60Hz
PhaseSingle Phase
Max Breaker Size40 amps
Min. Breaker Size23 amps
Tonnage3 Ton
BTU/Tonnage36,000 BTU/3 Ton
Min/Max Outdoor Temp for Heating-31F - 75F
Min/Max Outdoor Temp for Cooling0F - 115F
Zone CompatibilityMulti Zone
Height43.5"
Width40"
Depth17.3"
Warranty14 year compressor, 5 year parts with online registration
