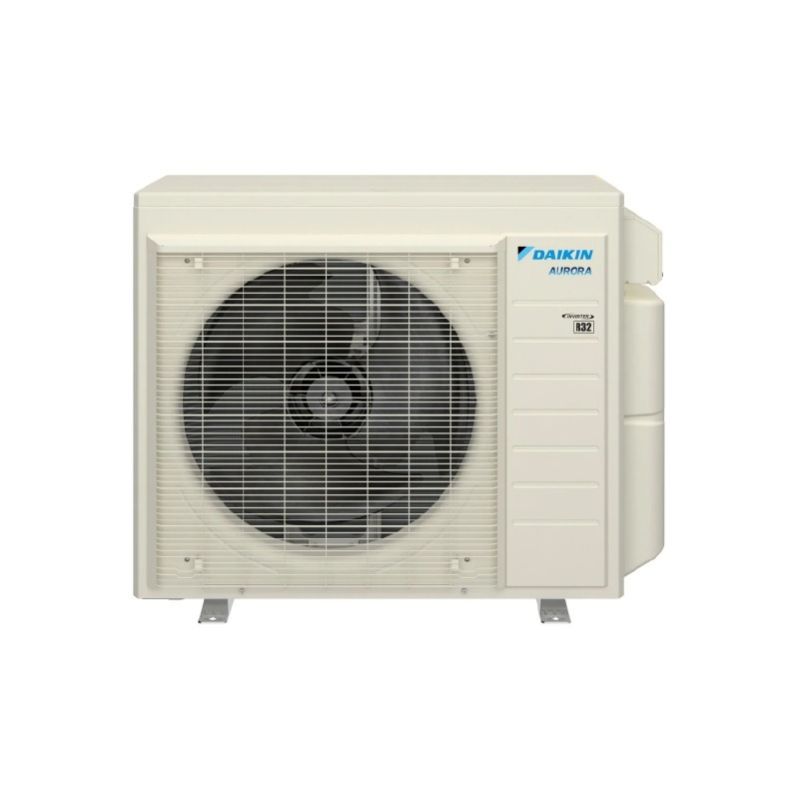

Daikin 36,000 BTU MXTH All-Weather Multi-Zone Mini Split Heat Pump Condenser - R32 | 230V

Daikin 4MXTH36AVJU9 36,000 BTU 4-Zone All-Weather Mini Split Condenser – R32 | 230V

This Aurora MXTH all-weather multi-zone condenser is engineered to deliver efficient heating and cooling for up to four independently controlled indoor zones. Featuring an inverter-driven swing compressor, R32 refrigerant, and a factory-installed base pan heater, it provides reliable year-round comfort, quiet operation, and enhanced cold-climate performance down to -13°F for residential and light commercial applications.

Key Features

• 36,000 BTU (3 Ton) nominal capacity for multi-zone heating and cooling
• Supports 2 to 4 indoor units (must be connected to at least two zones)
• Maximum connected indoor capacity up to 51,600 BTU for flexible zone combinations
• Compatible with Daikin wall-mount, ceiling cassette, and concealed duct indoor units
• Inverter-driven swing compressor for high efficiency and precise temperature control
• R32 refrigerant for lower environmental impact and strong performance
• Individual zone control for customized comfort in each room
• Enhanced cold-climate heating: 114% rated capacity at 5°F; heating operation down to -13°F
• Cooling operation range: 14°F to 115°F (outdoor ambient)
• Factory-installed base pan heater to prevent icing during defrost in harsh weather
• Quiet outdoor operation with low sound pressure levels (approx. 55 dBA cooling / 57 dBA heating)
• Flexible installation with support for multiple piping configurations and long line-set lengths (up to 230 ft total)
• Up to 20 SEER2 / 12 EER2 / 9.5 HSPF2 efficiency when matched with eligible indoor units

Warranty

12-year limited parts warranty (registration required); 5-year limited parts warranty if not registered
